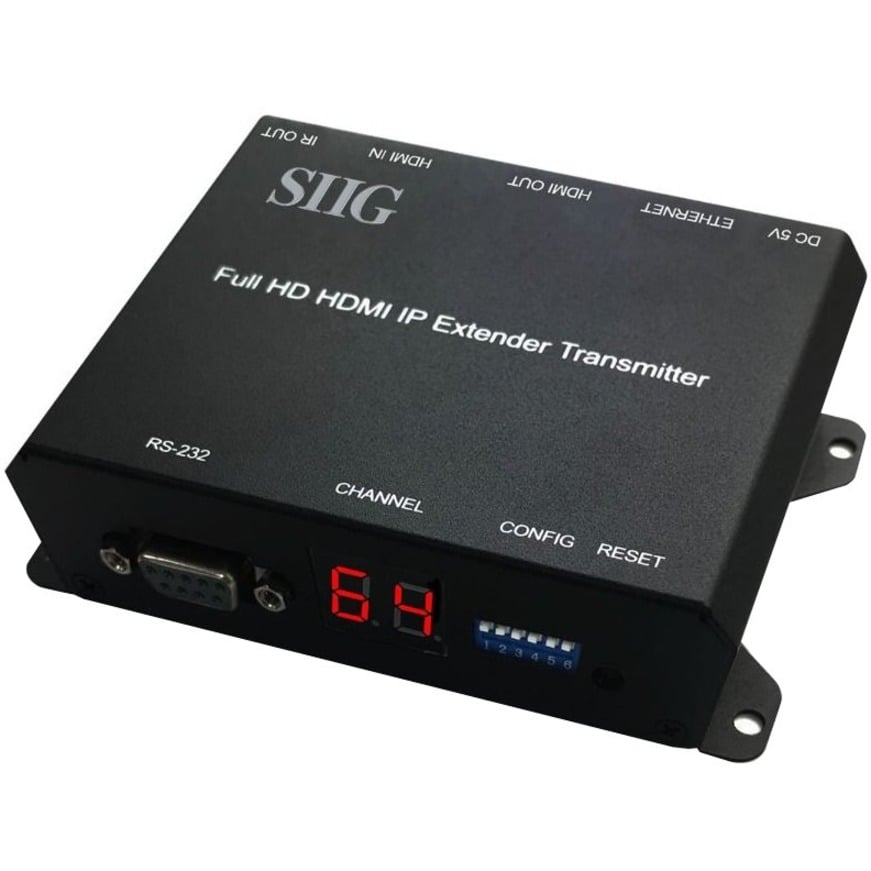

SIIG CE-H26411-S1 Network Switch

SIIG  -  Siig Full HD HDMI Extender over IP with PoE/RS-232 & IR, Encoder (TX), Works with decoder of CE-H26511-S1 as a scalable matrix devices over the dedicated IP network and allows up to 256 units, support one to many/many to many, Provide the IR Pass Back function and RS-232 signal transmission to control the source device signal, Video up to 1080p 60Hz and loop out on the TX, Metal housing, ESD protection, 2 years warranty, TAA compliant

Need a different version? See all SIIG Parts Products

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$216.38
In Stock
SIIG CE-H26411-S1 Network Switch
SIIG CE-H26411-S1 Network Switch
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG CE-H26411-S1 Network Switch Overview
Transmits HDMI signals over CAT5e/6 cabling up to 100 meters to a remote display using PoE Gigabit switches
Features
  • Transmitts HDMI signals with stereo audio to a remote display over UTP Cat5e/6 cabling up to 100 meters. Note: Requires Full HD HDMI Extender over IP with PoE, RS-232 & IR - Decoder (RX), part# CE-H26511-S1, sold separately
  • Works as a scalable TX/RX Matrix over dedicated IP network using PoE Gigabit Switches, allows up to 255 total units, limited to 64 transmitters. Requires additional encoder (TX)units (part# CE-H26411-S1) and decoder (RX)units (part# CE-H26511-S1) sold separately
  • Note: IGMP PoE Gigabit Switch is recommended for best performance and reliability
  • Power over Ethernet (PoE) powers the transmitter(s) and receiver(s) over Cat cable from your PoE Gigabit Switch (purchase separately)
  • Full HD 1080p video resolution delivers stunning and clear images
  • Local HDMI loop-out allows you to monitor the extended display from the source location
  • IR pass back function controls the source device from remote RX location
  • Computer control software allows you to select and switch between source devices (Matrix mode only)
  • Video protocol with H.264 compression over IP
  • Features MP3 audio compression and stereo 192Kbps encoder/ decoder
Technical Information
Connectivity Technology:
Wired
Number of Computers Supported:
1
Number of Local Users Supported:
1
Maximum Operating Distance:
328.08 ft
Device Type:
KVM Extender
Video
Graphic Mode:
Full HD
Maximum Video Resolution:
1920 x 1080
Interfaces/Ports
Network (RJ-45):
Yes
HDMI:
Yes
Number of HDMI Ports:
2
Number of Network (RJ-45) Ports:
1
Physical Characteristics
Product Color:
Black
Transmitter Height:
3.23"
Transmitter Width:
5.12"
Transmitter Depth:
1.19"
Transmitter Weight (Approximate):
10.24 oz
Miscellaneous
Package Contents:
  • Full HD HDMI Extender over IP with PoE, RS-232 & IR - Transmitter
  • 1 x IR Emitter cable
  • Quick Start Guide
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0662774043685
UPC: 662774043685
EAN: 0662774043685
UNSPSC: 43211603
