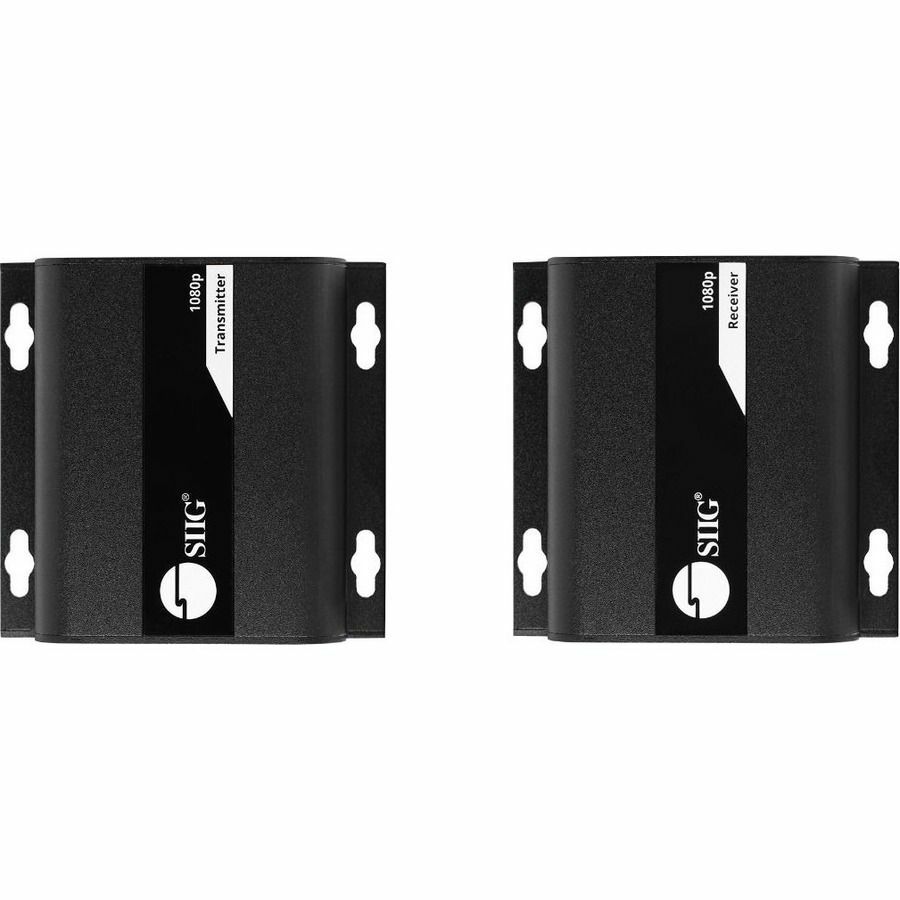

SIIG CE-H26T11-S1 Network Switch

SIIG - SIIG HDMI HDbitT Over IP Extender with IR, 120m, HDMI over Cat5e/6 Extender Kit, Full HD 1080p (1920x1080 60Hz), HDMI HDbitT over IP Extender with IR- 394ft (120m)- TX to RX, One to one / One to Many Connection, Works with IGMP gigabit ethernet switch Hub, Support VLAN and cascade up to 256 units, IR Extension support full frequency for 20KHz to 60KHz- Reset Button, Aliminum Metal Housing, included 2x IR Extension cable, Wall Mountable, 2 years warranty

Extends HDMI signals up to 394ft (120m) to a distant display over economical Cat6 cabling
Features direct 1-to-1 connection or 1-to-many connection through unmanaged dedicated Gigabit ethernet routers or switches. With HDBitT® transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays. Note: Additional Receivers, part# CE-H26U11-S1, sold separately
Delivers crystal clear Full HD video content up to 1080p@60Hz resolution
IR remote control pass-through feature allows you to remotely control the HDMI source device at the display location
High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
Plug-n-Play installation, no software installation required
Built-in power led indicator provides easy power status monitoring

Need a different version? See all SIIG Parts Products

Chat Now for Qty Discount

Add to Quote

$126.43

In Stock

Overview

SIIG Parts Products Model Overview

Products and parts from SIIG.

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Number of Input Devices Supported:

Number of Output Devices Supported:

Maximum Operating Distance:

393.70 ft

Video

Graphics Modes:

Full HD

Supported Video Modes:

480p
720p
1080i
1080p

Maximum Video Resolution:

1920 x 1080

Interfaces/Ports

Network (RJ-45):

Yes

HDMI In:

Yes

HDMI Out:

Yes

Number of Network (RJ-45) Ports:

Number of HDMI Inputs:

Number of HDMI Outputs:

Remote (IR) Input:

Remote (IR) Output:

Media & Performance

Media Type Supported:

Twisted Pair

Twisted Pair Cable Standard:

Category 6

Physical Characteristics

Transmitter Height:

0.93"

Transmitter Width:

3.70"

Transmitter Depth:

3.81"

Receiver Height:

0.93"

Receiver Width:

3.70"

Receiver Depth:

3.81"

Form Factor:

Wall Mountable

Transmitter Weight (Approximate):

5.28 oz

Receiver Weight (Approximate):

5.28 oz

Miscellaneous

Package Contents:

HDMI HDbitT Over IP Extender with IR - 120m
2x Power Adapter
IR Blaster Extension Cable & IR Receiver Extension Cable
Quick Start Guide

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

China

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0662774044750

UPC: 662774044750

EAN: 0662774044750

UNSPSC: 45111815
