SIIG CE-H27811-S1 Network Switch

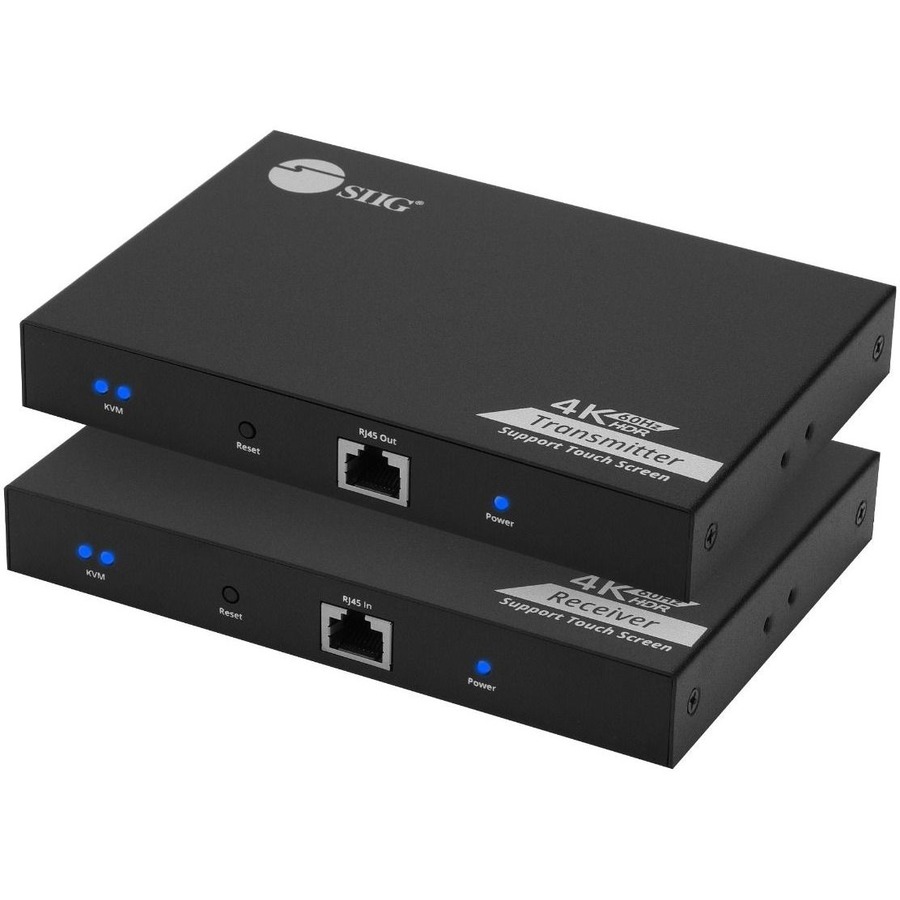

SIIG  -  SIIG 4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support, Extends/splits HDMI signals up to 230ft (70m) through RJ45 network with nearly zero latency, Supports HDMI loopout, Video resolution up to 4K@60Hz 4:4::4 and HDR YUV 4:2:0 10-bit, HDCP 2.2, Come with USB 2.0 port for keyboard/Mouse and support touch screen, S/DIF port with PCM 2ch and 5.1ch, Protection of Lightning / Surge / ESD, Plug and play, no driver required, Metal housing, 2 years warranty
  • Extends and transmits 4K@60Hz HDMI video/audio and USB 2.0 signals up to 230ft (70m) through a Cat6/6a/7 network cable with nearly zero latency
  • Supports USB 2.0 extension from the transmitter to the receiver, allowing you to connect a keyboard/Mouse and support touch screen at the extended location for remotely operate your PC system
  • Supports digital audio extraction through the receiver's S/PDIF port, with PCM 2ch, Dolby, DTS 5.1
  • The transmitter's HDMI loop-out allows for local monitoring of the extended display
  • The transmitter can work as an HDMI splitter with the additional HDMI output design, and allows screen mirroring to another display device
  • Lightning protection, surge protection, ESD protection
  • Plug and play, no driver installation required
  • High quality metal housing improve heat dissipation and ensure system stability during long hours of operation
Read More

Need a different version? See all SIIG Parts Products

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$237.90
SIIG CE-H27811-S1 Network Switch
SIIG CE-H27811-S1 Network Switch
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG CE-H27811-S1 Network Switch Overview

Multiple Connectivity Ports
Comes with one HDMI input port, one HDMI video loop-out port, one HDMI video output port, one USB 2.0 port (for Host), two USB 2.0 ports for keyboard & mouse or touch screen, one S/PDIF (Toslink) audio output port, two RJ45 network ports, two reset buttons, two DC power jacks (5V/2A)

Applications

  • Lecture hall
  • Educational facilities
  • Multimedia education
  • Home theater
  • Restaurant
  • Shopping center
  • Digital signage
  • Meeting room
  • Trade show
  • Library
  • Show room
  • Church
Technical Information
Connectivity Technology:
Wired
Number of Computers Supported:
1
Number of Local Users Supported:
1
Number of Remote Users Supported:
1
Maximum Operating Distance:
229.66 ft
Device Type:
KVM Extender
Video
Graphic Mode:
4K
Maximum Video Resolution:
3840 x 2160
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
HDMI:
Yes
Number of HDMI Ports:
3
Number of Network (RJ-45) Ports:
2
Number of USB Ports:
3
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Input Voltage Range:
100-240V
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
Product Color:
Black
Transmitter Height:
0.87"
Transmitter Width:
6.02"
Transmitter Depth:
4.15"
Receiver Height:
0.87"
Receiver Width:
6.02"
Receiver Depth:
4.15"
Transmitter Weight (Approximate):
12.32 oz
Receiver Weight (Approximate):
12.32 oz
Miscellaneous
Package Contents:
  • 1 x Transmitter
  • 1 x Receiver
  • 2 x Power Adapter
  • USB 2.0 Type-A to Type-A cable
  • Mounting ears & Screw kit
  • User manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0662774045252
UPC: 662774045252
EAN: 0662774045252
UNSPSC: 43211603
