Host Interface:
USB Type B
SIIG Parts Products Model Overview
Products and parts from SIIG.

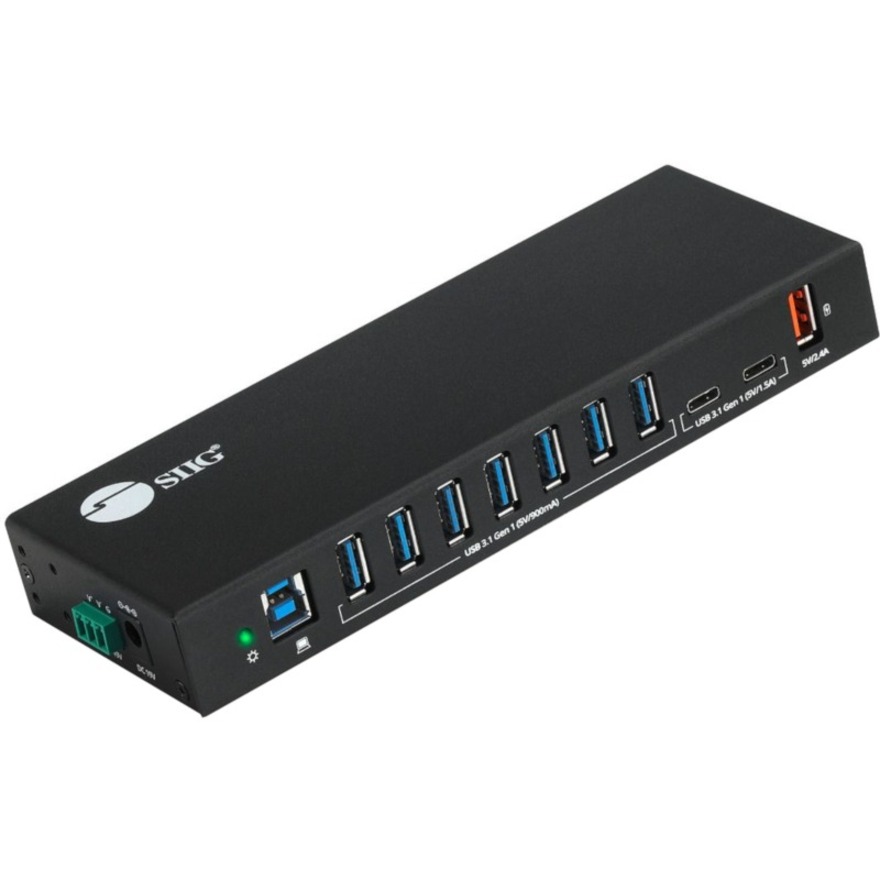

SIIG ID-US0811-S1 Data Networking Overview
Add 9 SuperSpeed USB 3.1 ports and a dedicated 5V/2.4A charging port to your system
Features
- Adds 9 USB 3.1 Gen 1 ports and one dedicated high power 5V/2.4A USB-A charging port for your system
- Provides seven USB 3.1 Gen 1 Type-A ports and two USB 3.1 Gen 1 USB-C ports
- Supports ultra-fast USB 3.1 data transfer rates of up to 5Gbps, and is backward compatible with USB 2.0 and USB 1.1 devices
- Works with high-bandwidth USB 3.1 Gen 1 Type-A and USB-C devices, such as external hard disks, high resolution webcams, camcorders, video surveillance cameras, digital video cameras, multi-channel audio and more
- Dedicated 5V/2.4A USB Type-A charging port to charge your Mobile or Tablet devices quickly
- Industrial grade rugged aluminum housing design to withstand harsh industrial environments, and provides excellent heat dissipation for reliable performance and long life
- Over-current detection and protection circuit design to protect the hub and connected devices
- The included 19V/3.42A power adapter provides sufficient power output to all ports 900mA power output on each USB 3.1 Gen 1 Type-A port and 1.5A power output for each USB 3.1 Gen 1 USB-C port
- Power input surge protection (600W) for each port
- Wall and DIN rail mount support
- Supports UASP function (with Windows 10 / 8 native USB 3.0 Host driver only)
Technical Information
Media & Performance
UASP Support:
Yes
Interfaces/Ports
Total Number of USB Ports:
10
Number of USB 3.1 Ports:
9
Physical Characteristics
Product Color:
Black
Form Factor:
Wall/DIN Rail Mountable
Height:
1"
Width:
2.6"
Length:
7.2"
Weight (Approximate):
13.28 oz
Miscellaneous
Package Contents:
- 10-Port Industrial USB 3.1 Gen 1 Hub with Dual USB-C & Charging
- Switching Power Adapter (19V/3.42A) & AC Power Cord
- USB 3.1 Gen 1 Type-A to Type-B Cable (2m)
- DIN-Rail and Wall Mount kit
- Terminal Block
- User Manual
Platform Supported:
- PC
- Mac
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0662774044682
UPC:
662774044682
EAN:
0662774044682
UNSPSC:
43211609
Get help from a Barcoding Expert!
The SIIG ID-US0811-S1 Data Networking is also known as
ID-US0811-S1
