SIIG JU-SA0X11-S1 Accessory

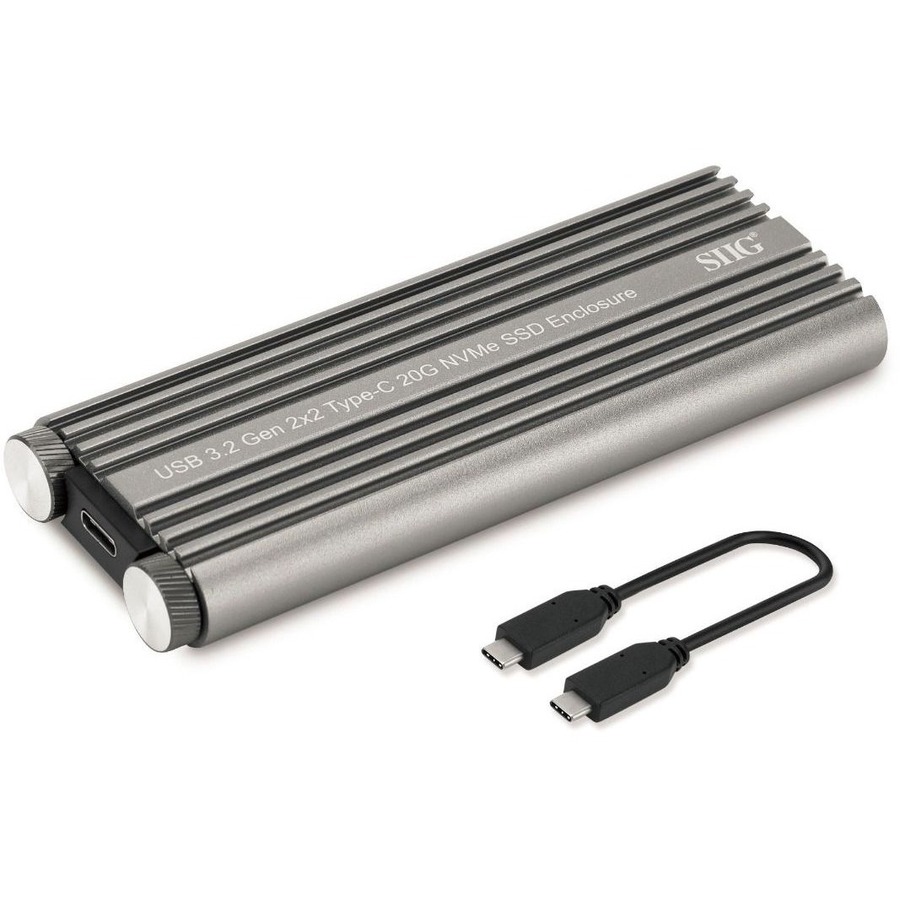

SIIG  -  Siig USB 3.2 Gen 2x2 Type-C M.2 PCIe NVMe SSD Enclosure, Ultra Fast 20G Data Transfer Rate
  • This ultra small enclosure easily adds fast M.2 (M key) PCIe NVMe SSD storage to your Windows or Mac computers through USB 3.2 Gen 2x2 USB-C port
  • Ultra-fast data transfer rate up to 20Gbps through USB 3.2 Gen 2x2 with UASP technology. Requires UASP compatible USB 3.2 Gen 2 2x2 host controller hardware along with Windows 10 and Windows 8 USB 3.2 host controller drivers
  • Compliant with SuperSpeed USB 20Gbps/10Gbps/5Gbps, High Speed 480Mbps, and Full Speed 12Mbps
  • Accommodates 2230, 2242, 2260, and 2280 form factor M-Key M.2 PCIe NVMe SSD. Note: Does NOT work with B-key M.2 PCIe NVMe SSDs or M.2 SATA SSDs
  • USB Type-C (USB-C) interface with reversible connection design supports non-directional plug-in connection
  • Compatible with PCIe 3.0 x4 specification and backward compatible with PCIe 1.0 and PCIe 2.0
  • Aluminum housing offers durability and excellent neat dissipation for long life and reliable performance
  • Ultimate SuperSpeed transmission allows you to enjoy unprecedented data transfer speed, saves times for large-capacity data transmission and improves efficiency working at the office or home
  • Convenient tool free design, easily installs your NVMe SSD without using a screw driver
  • Bus powered for extra portability, no need to take along a separate power adapter while on-the-go
Read More
Add to Quote
$79.85
In Stock
SIIG Parts Products Model Overview
Products and parts from SIIG.
SIIG JU-SA0X11-S1 Accessory Overview

Adds extra storage to USB 3.2 Gen 2x2 enabled computers

Features
  • This ultra small enclosure easily adds fast M.2 (M key) PCIe NVMe SSD storage to your Windows or Mac computers through USB 3.2 Gen 2x2 USB-C port
  • Ultra-fast data transfer rate up to 20Gbps through USB 3.2 Gen 2x2 with UASP technology. Requires UASP compatible USB 3.2 Gen 2 2x2 host controller hardware along with Windows 10 and Windows 8 USB 3.2 host controller drivers
  • Compliant with SuperSpeed USB 20Gbps/10Gbps/5Gbps, High Speed 480Mbps, and Full Speed 12Mbps
  • Accommodates 2230, 2242, 2260, and 2280 form factor M-Key M.2 PCIe NVMe SSD. Note: Does NOT work with B-key M.2 PCIe NVMe SSDs or M.2 SATA SSDs
  • USB Type-C (USB-C) interface with reversible connection design supports non-directional plug-in connection
  • Compatible with PCIe 3.0 x4 specification and backward compatible with PCIe 1.0 and PCIe 2.0
  • Aluminum housing offers durability and excellent neat dissipation for long life and reliable performance
  • Ultimate SuperSpeed transmission allows you to enjoy unprecedented data transfer speed, saves times for large-capacity data transmission and improves efficiency working at the office or home
  • Convenient tool free design, easily installs your NVMe SSD without using a screw driver
  • Bus powered for extra portability, no need to take along a separate power adapter while on-the-go
  • Built-in LED indicates power and data transfer status
  • Plug-n-Play with no driver installation required
  • Includes USB-C cable for easy connection to notebook or laptop
Technical Information
Number of Solid State Drive Supported:
1
Number of Solid State Drive Installed:
0
Network & Communication
Wireless LAN:
No
UASP Support:
Yes
Interfaces/Ports
Drive Interface:
PCI Express NVMe
Host Interface:
USB 3.2 (Gen 2) Type C
Physical Characteristics
Product Color:
Silver
Product Material:
Aluminum
Height:
0.6"
Width:
1.8"
Depth:
4.8"
Weight (Approximate):
4 oz
Miscellaneous
Package Contents:
  • USB 3.2 Gen 2x2 Type-C 20G NVMe SSD Enclosure
  • USB 3.2 Gen 2x2 USB-C to USB-C Cable
  • Thermal Pad
  • User Manual
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0662774044385
UPC: 662774044385
EAN: 0662774044385
UNSPSC: 43202206
