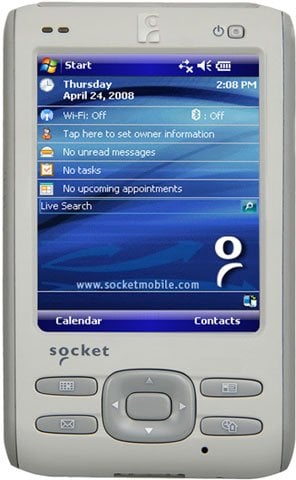

Socket Mobile HC0684-1085 Mobile Computer

The Socket Mobile HC0684-1085 Mobile Computer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Socket Mobile SoMo 650Rx - Socket Communications SoMo 650Rx-E Handheld Computer - Motorola XScale 624MHz - 128MB RAM - 256MB Flash - 3.5" LCD

Wireless connectivity option lets you transmit data instantly from your handheld terminal to your network while keeping you up to date
CompactFlash memory card slot can be accessed by user to expand storage
3.5" QVGA display screen allows you to execute two applications at the same time
Touch panel gives your workforce ease, along with familiar and flexible operation, thus improving overall efficiency on a daily basis
The secure wireless connectivity allows your employees to stay productive while away from their desks
Windows Mobile 6.0 Classic offers familiar interface and the control of Web-based applications for greater ease of use and worker satisfaction

Need a different version? See all Socket Mobile SoMo 650Rx Mobile Computers

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Socket Mobile HC0684-1085 Mobile Computer

Overview

Full specifications (PDF)

Socket Mobile SoMo 650Rx Mobile Computer Model Overview

The Socket-Mobile SoMo 650Rx is a hospital-grade handheld computer made with antimicrobial materials that provide an extra layer of protection against the multiplication and spread of potentially harmful bacteria and microbes. Featuring a durable, lightweight, ergonomic design and robust wireless network capability, the SoMo 650Rx brings reliable automated patient data management directly to the point of care, enabling clinicians to automate healthcare applications while also optimizing patient safety across different healthcare environments.

Socket Mobile HC0684-1085 Mobile Computer Overview

The SoMo 650Rx-E is a hospital-grade handheld computer made with antimicrobial materials that provide an extra layer of protection against the multiplication and spread of potentially harmful bacteria and microbes.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Electrostatic Discharge (ESD):

+/-8 kV DC All Surface Discharge
+/-8 kV DC Direct Discharge

Drop Specification:

39.37" To Concrete

Processor & Chipset

Processor Manufacturer:

Intel

Processor Type:

XScale PXA270

Processor Speed:

624 MHz

Memory

Standard Memory:

128 MB

Flash Memory:

256 MB

Memory Card Slot:

Yes

Memory Card Supported:

CompactFlash
SD

Display & Graphics

Screen Size:

3.5"

Screen Mode:

QVGA

Screen Resolution:

240 x 320

Display Color:

Color

Display Screen Type:

LCD

Backlight Technology:

LED

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Resistive

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11b/g

Bluetooth:

Yes

Antenna Form Factor:

Internal

Interfaces/Ports

USB:

Yes

I/O Expansions

Expansion Slot Type:

CompactFlash
SDIO

Software

Operating System:

Windows Mobile 6.0 Classic

Battery Information

Battery Capacity:

2600 mAh

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Physical Characteristics

Height:

Width:

2.9"

Depth:

Weight (Approximate):

7.20 oz

Miscellaneous

Package Contents:

SoMo 650Rx Handheld Computer
Extended Battery
Wall Charger AC/DC Adapter
USB ActiveSync Cable
Full Size Stylus
Companion CD with Software and User's Guide
Quick Start Guide

Additional Information:

Built in Microphone and Speaker
Connectors:
Barrel connector power jack
26 pin docking connector for ActiveSync
USB 1.1 host & USB 2.0 Client
2.5mm headset jack with support for both voice & stereo music

Certifications & Standards:

FCC Part 15, Class B
CE:EN
EN301 489-1
EN301 489-17
EN61000-4-2: 1995
EN61000-4-3: 1997
EN61000-4-4: 1995
EN61000-4-5: 1995
EN61000-4-6: 1

Electrical Safety:

EN60950
UL
CSA

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0758497006844, 0853585467085

UPC: 758497006844, 853585467085

EAN: 0758497006844, 0853585467085

UNSPSC: 43211715

Reviews

Q&A

Accessories

Questions? Get Help from
a Mobile Expert!

The Socket Mobile HC0684-1085 Mobile Computer is also known as SOC-HC06841085 or HC06841085.
