Speco CVC622PH Products

The Speco CVC622PH Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Speco  -  Color Bullet Camera with Conic al Pinhole Lens
  • CCD image sensor type for dependable video frame rates with maximum productivity
  • 4.30 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
  • Zoom lens type allows you to conveniently change the angle of view quickly and without changing lenses
  • Wired connectivity technology helps you always stay connected to your surveillance camera for maximum productivity
Read More

Need a different version? See all Speco Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Speco CVC622PH Products
Speco CVC622PH Products
Speco Parts Accessory Model Overview
Products and parts from Speco-Technologies.
Speco CVC622PH Products Overview

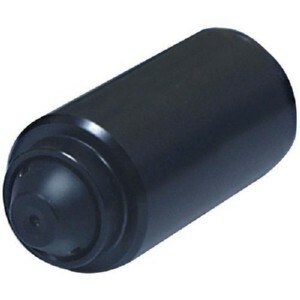

Our color conical (pointed) pinhole bullet camera is easier to install behind walls and in dropped ceilings. It has a 380 line resolution with a 1.0 lux rating. It also has a 1/3 inch CCD camera with a 4.3mm conical pinhole lens. A regulated 12V DC power supply is included (UL and CSA listed).

Display & Graphics
Image Sensor Type:
CCD
Maximum Illumination:
1 lux
Color Supported:
Color
Lens
Lens Type:
Zoom
Minimum Focal Length:
4.30 mm
Maximum Focal Length:
4.30 mm
Exposure
Shortest Shutter Speed:
1/100000 Second
Longest Shutter Speed:
1/60 Second
Network & Communication
Connectivity Technology:
Wired
Interfaces/Ports
Analog Video Out:
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
Bullet
Height:
1"
Width:
1"
Depth:
2.5"
Weight (Approximate):
2 oz
Miscellaneous
Package Contents:
  • CVC-622PH Conical Pinhole Bullet Camera
  • Miniature mount
  • Regulated 12V DC power supply
Additional Information:
  • Number of Pixels: 512 horizontal x 492 vertical
  • Power Consumption: 130mA
  • Scanning Frequency: Horizontal 15.72 kHz Vertical 60 Hz
  • Video S/N Ratio: Greater than 48dB
Certifications & Standards:

UL and CSA listed

TAA Compliant:
Yes
Item Numbers
GTIN: 0030519656221, 0305196562210
UPC: 030519656221, 305196562210
EAN: 0030519656221, 0305196562210
UNSPSC: 46171610
