Speco CVC638170 Products

The Speco CVC638170 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

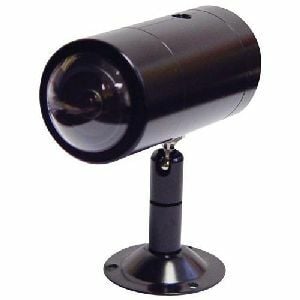

Speco - Color Waterproof Ultra-Wide Angle 170 degree Camera

Is a smart solution for using at homes and SMB security surveillance installations
Features CCD sensor

Need a different version? See all Speco Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Speco Parts Accessory Model Overview

Products and parts from Speco-Technologies.

Speco CVC638170 Products Overview

The weatherproof CVC-638/170 offers a 170-degree field of view that allows you to see small areas like elevators, vestibules, mantraps and counting rooms without any loss of coverage. The ultra-wide angle 2.2mm lens will fully view these small spaces when properly installed and positioned. It will even see under itself! The CVC-638/170 comes complete with a mounting bracket (which can be attached to the top or bottom) and power supply.

Detailed Specs

Display & Graphics

Image Sensor Type:

CCD

Maximum Illumination:

1 lux

Color Supported:

Color

Lens

Lens Type:

Zoom

Minimum Focal Length:

2.20 mm

Maximum Focal Length:

2.20 mm

Exposure

Shortest Shutter Speed:

1/100000 Second

Longest Shutter Speed:

1/60 Second

Network & Communication

Connectivity Technology:

Wired

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Form Factor:

Bullet

Height:

3.2"

Width:

1.5"

Weight (Approximate):

6.53 oz

Miscellaneous

Package Contents:

CVC-638/170 Ultra Wide Angle Bullet Camera
Mounting bracket
Regulated 12V DC power supply

Additional Information:

Video S/N Ratio: Greater than 48dB
Effective Pixel Array: 512 Horizontal x 492 Vertical
Scanning System: 525 TV lines 60 fields/sec
Scanning Frequency: Horizontal 15.734 KHz Vertical 60 Hz
Power Consumption: 115mA

Compatibility:

NTSC

Certifications & Standards:

UL and CSA listed

Item Numbers

GTIN: 0030519403948, 0305194039486, 0724627154815

UPC: 030519403948, 305194039486, 724627154815

EAN: 0030519403948, 0305194039486, 0724627154815

UNSPSC: 46171610
