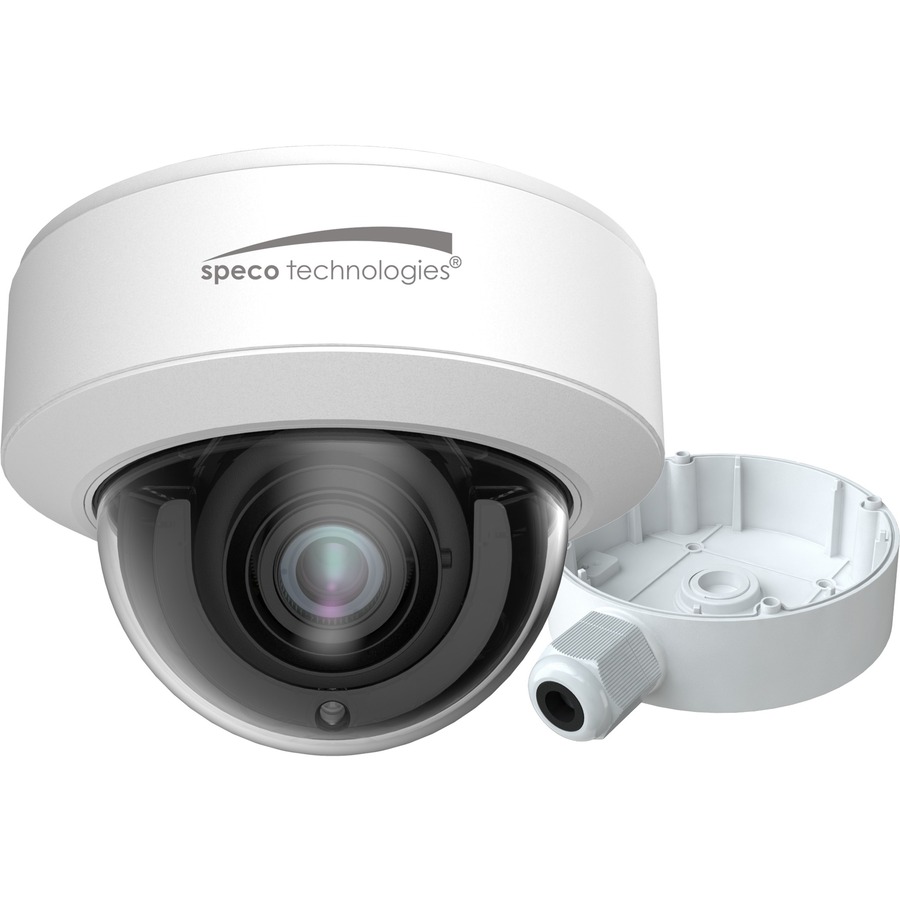

Speco V5D1M Security Camera

Speco - Security Cameras, Speco-Technologies, 5MP HD-TVI Dome Camera, IR, 2.8-12mm

Supports up to 5MP @ 20FPS
Up to 4x optical zoom
IR Distance: 98' (depending on scene reflection)
DWDR
Motorized lens with auto focus
12VDC Operation (power supply not included)
IP67 weather resistance
IK10 vandal resistance
NDAA Compliant
5 year warranty

Need a different version? See all Speco Parts Accessories

Chat Now for Qty Discount

Add to Quote

$174.35

Overview

Speco Parts Accessory Model Overview

Products and parts from Speco-Technologies.

Detailed Specs

Technical Information

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

98 ft

Night Vision Type:

Infrared

Display & Graphics

Image Sensor Type:

CMOS

Image Sensor Size:

1/2.7"

Color Supported:

Color

Effective Camera Resolution:

5 Megapixel

Video

Maximum Video Resolution:

2560 x 1936

Maximum Frame Rate:

20 fps

Video Signal Format:

NTSC
PAL

Analog Video Signal Format:

HD-TVI
AHD
CVI
CVBS
TVI

Lens

Lens Type:

Varifocal

Minimum Focal Length:

2.80 mm

Maximum Focal Length:

12 mm

Lens Included:

Yes

Maximum Aperture:

f/1.2

Optical Zoom:

Exposure

Shortest Shutter Speed:

1/100000 Second

Longest Shutter Speed:

1/50 Second

Network & Communication

Connectivity Technology:

Wired

Power Description

Input Voltage:

12 V DC

Power Source Type:

Physical Characteristics

Mount Type:

Desk Mount
Wall Mount
Junction Box Mount

Form Factor:

Dome

Durability:

Weather Resistant
Vandal Resistant

Product Color:

White

Height:

3.9"

Diameter:

5.6"

Weight (Approximate):

4.18 lb

Environmental Conditions

Minimum Operating Temperature:

-7.6°F (-22°C)

Maximum Operating Temperature:

251.6°F (122°C)

Operating Humidity:

90%

Miscellaneous

Features:

Day/Night
Digital Wide Dynamic Range (D-WDR)
Wide Dynamic Range
Digital Noise Reduction
Auto Gain Control
Automatic White Balance
Back Light Compensation (BLC)
Highlight Compensation (HLC)
Mirror
Smart IR
Line Scan Camera (LSC)

Package Contents:

5MP HD-TVI IR Motorized Lens Dome Camera
Junction Box

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Warranty

Limited Warranty:

5 Year

Item Numbers

UNSPSC: 46171610
