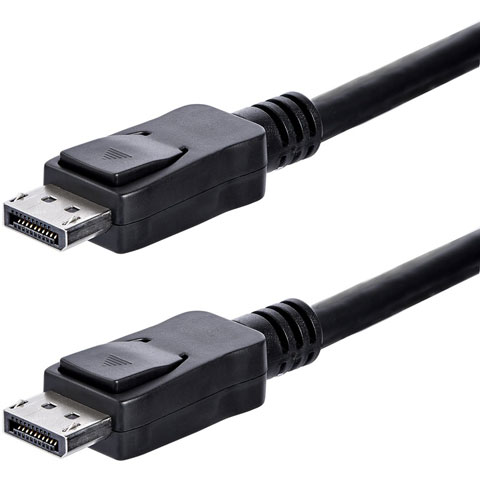

StarTech DISPLPORT1L Cables, Connectors, and Adapters

StarTech  -  Cable, StarTech, 1'', 30Cm Vesa Certified Displayport V1.2 Cable, 4K x 2K (3840 x 2400 60Hz), 21.6 GBPSBandwidth, HBR2, 8 Channel Audio, Durable Pvc Strain Relief, Latching Connectors
  • HIGH PERFORMANCE CABLE: This 1ft (30cm) VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
  • RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
  • QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
  • APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
  • SPECS: 1 ft (30 cm) | Black | DisplayPort v1.2 | DP Latching Male to Male | 28 AWG | PVC cable jacket, ABS connector shell | Shield: Al-Mylar foil with Braid | Protocols: HBR 2, MST, GTC | Lifetime Warranty
Read More
Add to Quote
$24.71
In Stock
Technical Information
Cable Type:
DisplayPort
Cable Length:
1 ft
Connector on First End:
1 x DisplayPort Male DisplayPort 1.2 Digital Audio/Video
Connector on Second End:
1 x DisplayPort Male DisplayPort 1.2 Digital Audio/Video
Connector Plating:
Gold
Features:
  • Molded
  • Strain Relief
  • HDCP
  • DPCP
  • Multi-Stream Transport (MST) Support
  • Latching Connector
  • EMI Protection
  • Flexible
  • Fray Resistant
  • Damage Resistant
Conductor:
Copper
Shielding:
Yes
Jacket Type:
CMG
Device Supported:
  • Audio/Video Device
  • Monitor
  • Notebook
  • Workstation
  • Graphics Card
  • Projector
American Wire Gauge:
28 AWG
Data Transfer Rate:
21.6 Gbit/s
Supported Resolution:
4096 x 2160
Physical Characteristics
Color:
Black
Jacket Material:
Polyvinyl Chloride (PVC)
Weight (Approximate):
0.10 lb
Miscellaneous
Compatibility:

AMD Graphic Cards

  • FirePro S9000
  • 7000
  • W8100
  • 7100
  • 5100
  • R5000
Certifications & Standards:
  • HDCP
  • DPCP
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
  • WEEE
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0065030840118, 0132017618722, 0696555153621, 0999554861963
UPC: 065030840118, 132017618722, 696555153621, 999554861963
EAN: 0065030840118, 0132017618722, 0696555153621, 0999554861963
UNSPSC: 26121604
