StarTech DISPLPORT20L Accessory

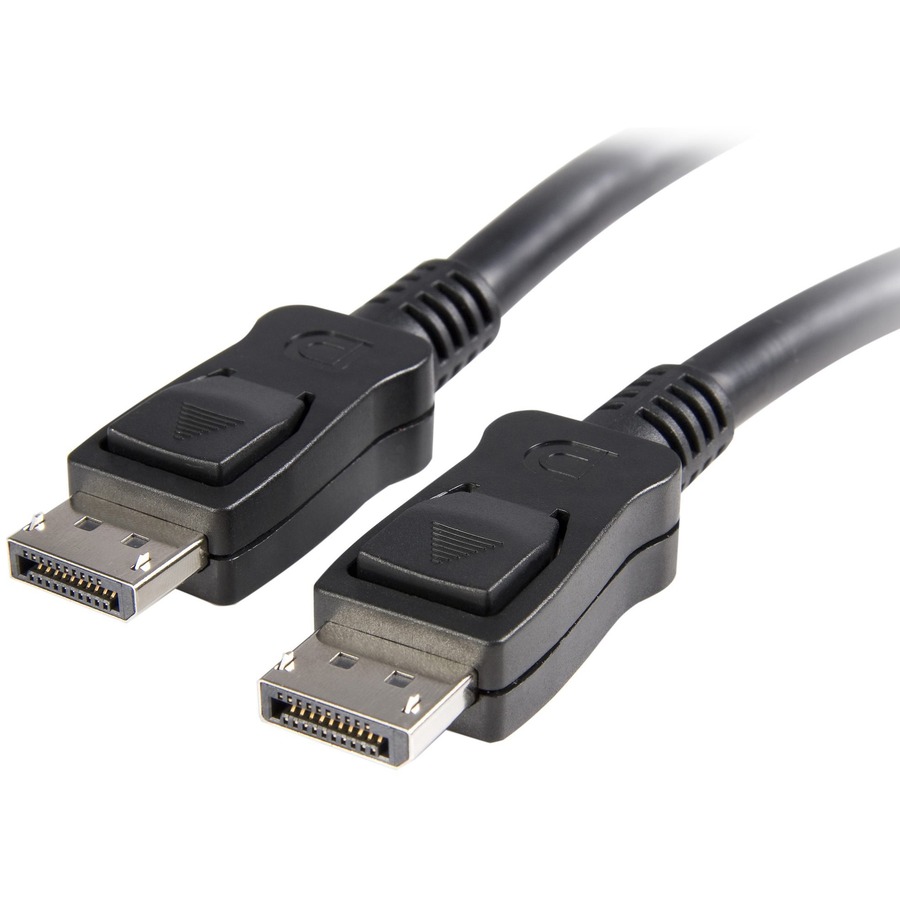

StarTech  -  Cable, StarTech, DisplayPort To DisplayPort Cable, 20"/6M, 2K (2560 x 1440P 30Hz)/10.8 GBPS
  • HIGH PERFORMANCE CABLE: This 20ft (6m) DisplayPort to DisplayPort cable supports 2K (2560x1440p) 30Hz, Full HD (1920x1200p) 60Hz, 10.8 Gbps bandwidth, Multi-Stream Transport (MST), 5.1, 7.1 Audio Channel, GTC for precise audio channel timing & 3D Stereo
  • RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
  • QUALITY CONSTRUCTION: 26AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
  • APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
  • SPECS: 20 ft (6 m) | Black | DisplayPort v1.0 | DP Latching Male to Male | 26 AWG | PVC cable jacket, ABS connector shell | Shield: Al-Mylar foil with Braid | Protocols: MST, GTC | Lifetime Warranty
Read More
Add to Quote
$55.48
In Stock
Technical Information
Cable Type:
DisplayPort
Cable Length:
20 ft
Connector on First End:
1 x DisplayPort Male Digital Audio/Video
Connector on Second End:
1 x DisplayPort Male Digital Audio/Video
Connector Plating:
Gold
Features:
  • Molded
  • HDCP
  • DPCP
  • EMI/RF Protection
  • Latching Connector
  • Strain Relief
  • Multi-Stream Transport (MST) Support
  • EMI Protection
  • Fray Resistant
  • Damage Resistant
Conductor:
Copper
Shielding:
Yes
Jacket Type:
CMG
Device Supported:
  • Audio/Video Device
  • Workstation
  • Monitor
  • Projector
  • Graphics Card
  • Notebook
American Wire Gauge:
26 AWG
Data Transfer Rate:
21.6 Gbit/s
Supported Resolution:
4096 x 2160
Physical Characteristics
Color:
Black
Product Material:
Copper
Jacket Material:
Polyvinyl Chloride (PVC)
Weight (Approximate):
0.99 lb
Miscellaneous
Compatibility:

AMD Graphic Cards

  • FirePro S9000
  • 7000
  • W8100
  • 7100
  • 5100
  • R5000
Certifications & Standards:
  • HDCP
  • DPCP
  • CMG Rated
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0065030841924
UPC: 065030841924
EAN: 0065030841924
UNSPSC: 26121604
