StarTech HSB220SAT25B Accessory

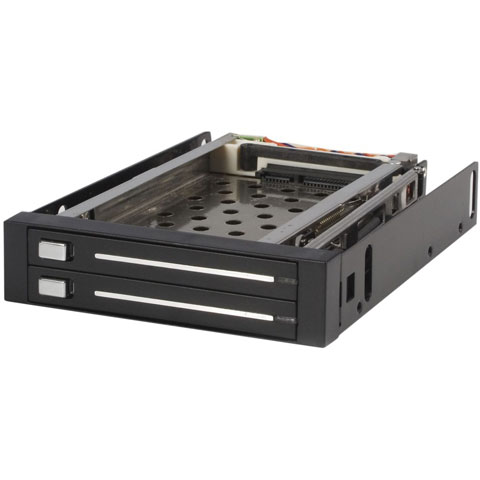

StarTech  -  Computer Components, StarTech, 2 Drive 2.5" Trayless Hot Swap SATA Mobile Rack Backplane
  • Holds up to two SATA drives in a single 3.5" bay
  • Trayless design: drives are not mounted into separate trays/enclosures
  • Includes a plastic protective film for the bottom side of hard drive
  • Aluminum construction
  • 50,000+ insertion rating
  • Power/Activity LED for each drive
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
  • Plug-and-Play and Hot-Swap compatible
Read More
Add to Quote
$54.46
In Stock
Technical Information
Number of Hard Drives Supported:
2
Number of Hard Drives Installed:
No
Number of Solid State Drive Supported:
2
Number of Solid State Drive Installed:
No
Controllers
Controller Type:
Serial ATA
I/O Expansions
Number of Total Expansion Bays:
2
Number of 2.5" Bays:
2
Network & Communication
Wireless LAN:
No
Interfaces/Ports
Drive Interface:
SATA/600
Host Interface:
Serial ATA/600
Physical Characteristics
Product Color:
Black
Product Material:
Aluminum
Form Factor:
Internal
Compatible Drive Bay Width:
3.5"
Height:
0.9"
Width:
4"
Depth:
5.3"
Weight (Approximate):
10.10 oz
Miscellaneous
Package Contents:
  • 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane
  • 2 x Lp4 To SATA And LED Adapter Cable
  • 1 x 15-Pin SATA Power And LED Y Cable
  • 2 x 7-Pin SATA Data Cable
  • 2 x Hard Drive Protector Film
  • 1 x Screw Kit
  • 1 x Instruction Manual
Additional Information:
  • Quickly and easily install or remove HDD/SSD without having to open the chassis with the innovative trayless design
  • Aluminum construction and 50,000+ insertion rating ensures longevity from both the HDD/SSD and bay
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
  • REACH
Country of Origin:
Taiwan
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0065030827980
UPC: 065030827980
EAN: 0065030827980
UNSPSC: 43201608
