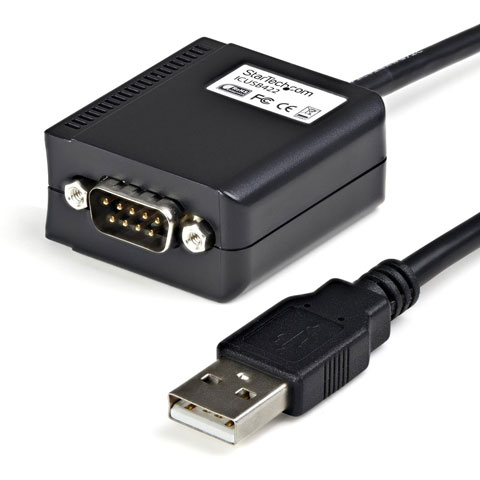

StarTech ICUSB422 Accessory

StarTech - Cable, StarTech, 6'' Professional RS422/485 USB Serial Cable Adapter With COM Retention

USB to Straight-Through RS422/485 Serial Adapter
Supported baud rates from 300bps to 921.6 Kbps
Being able to rename devices no matter how many are plugged in
Supports COM Port retention
Configurable port for RS422 or RS485 support
Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA Hardware
Backwards compatible with USB 1.1
Integrated adapter and cable eliminates the need for additional cables
Two interface modes; 4 wire RS422(TxD+/-, RxD+/-), and 2 wire RS485 (DATA+, DATA-)
120 OHM terminator that can be Enabled/Disabled by DIP switch

Read More

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount

$97.11

In Stock

StarTech ICUSB422 Accessory

StarTech ICUSB422 Accessory

Technical Information

Cable Length:

6 ft

Connector on First End:

1 x 9-pin DB-9 Male RS-422 Serial

Connector on Second End:

1 x Type A Female USB 1.1 USB

Conductor:

Copper

Device Supported:

Tablet PC
Security Device
Bar Code Reader
Computer
Notebook
CNC Machine
Barcode Scanner
Printer
Camera
Card Reader
POS Device
LED
Transceiver

Data Transfer Rate:

921.6 kbit/s

Physical Characteristics

Color:

Black

Weight (Approximate):

0.22 lb

Miscellaneous

Package Contents:

6ft RS422/485 USB Serial Adapter with COM Retention
1 x Driver CD
1 x Instruction Manual

Additional Information:

Operating System(s):

Windows 8 / 7 / Vista / XP (32/64-bit)
Windows 2000
Windows CE (4.2+)
Windows Server 2008 R2
Windows Server 2003 (32/64-bit)
Mac OS v.9.x, v.10.x (Tested up to v.10.8)
Linux

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
REACH
WEEE

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0065030836548

UPC: 065030836548

EAN: 0065030836548

UNSPSC: 26121604

Get help from a Barcoding Expert!

The StarTech ICUSB422 Accessory is also known as ICUSB422
