StarTech IES101002SFP Accessory

The StarTech IES101002SFP Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

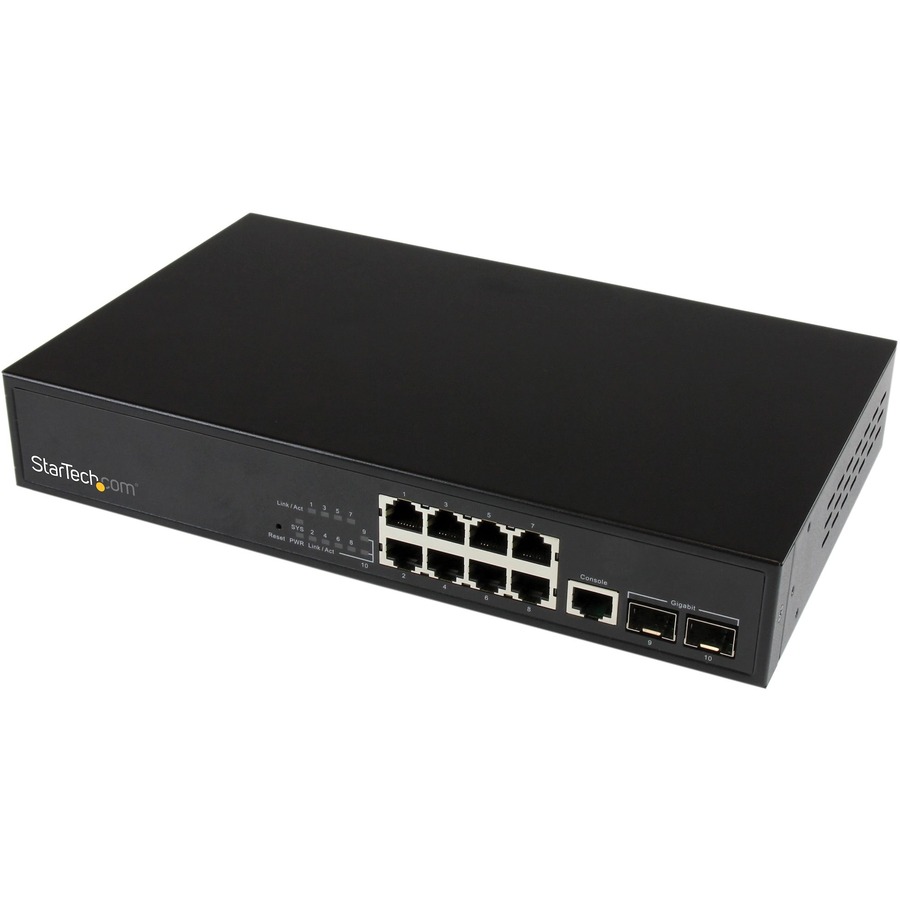

StarTech - Computer Components, StarTech, 10 Port L2 Managed Gigabit Ethernet Switch, 2 Open Sfp Slots, Rack Mountable Layer

8x RJ45 ports + 2 fiber SFP slots, merged into a convenient Gigabit network switch
Compliant with most SFP modules, for broad compatibility and flexibility
Layer 2 management capabilities, for improved network control, efficiency, and stability
Optional 19? rackmount brackets
Web-based GUI and command-line management
Supports IGMP
Up to 9.6K Jumbo Frame support
Support for link aggregation, VLAN tagging, spanning tree protocol, port-based network access control
Compatible with 10/100/1000 Mbps networks, and compliant with IEEE 802.3, 802.3u, 802.3ab, 802.3z
Compliant with IEEE 802.3az Energy-Efficient Ethernet, and 802.3x flow control for full duplex, and back-pressure for half-duplex operation

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Bypass:

Modular:

Yes

Management Port:

Yes

USB:

Stack Port:

Number of Network (RJ-45) Ports:

Network (RJ-45):

Yes

Port/Expansion Slot Details:

8 x Gigabit Ethernet Network
2 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:

Twisted Pair
Optical Fiber

Ethernet Technology:

Gigabit Ethernet

Network Technology:

10/100/1000Base-T
1000Base-SX
1000Base-LX

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP

Number of SFP Slots:

Network & Communication

Layer Supported:

Networking Standards:

IEEE 802.3ad
IEEE 802.1D
IEEE 802.1w
IEEE 802.1s
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1ab

Management & Protocols

Manageable:

Yes

Power Description

PoE (RJ-45) Port:

Input Voltage:

120 V AC
230 V AC

Power Source:

AC Adapter

Power Consumption:

14 W

Physical Characteristics

Color:

Black

Material:

Steel

Form Factor:

Rack-mountable

Height:

1.7"

Width:

6.3"

Length:

10.4"

Weight (Approximate):

2.40 lb

Miscellaneous

Package Contents:

10 Port Gigabit Ethernet Switch with 2 Open SFP Slots
2 x Mounting Brackets (1 set)
3 x Power Cords (NA/UK/EU)
1 x Instruction Manual
1 x Quick Start Guide

Certifications & Standards:

Industry Standards:

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000Base-SX/LX
IEEE 802.3az Energy-Efficient Ethernet
IEEE 802.3x Flow Control
IEEE 802.1q VLAN Tagging
IEEE 802.1p QoS
IEEE 802.1x Port-Based Network Access Control
IEEE 802.3ad Link Aggregation
IEEE 802.1d Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
REACH
WEEE

TAA Compliant:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0065030858236

UPC: 065030858236

EAN: 0065030858236

UNSPSC: 43222612
