StarTech IES5102 Accessory

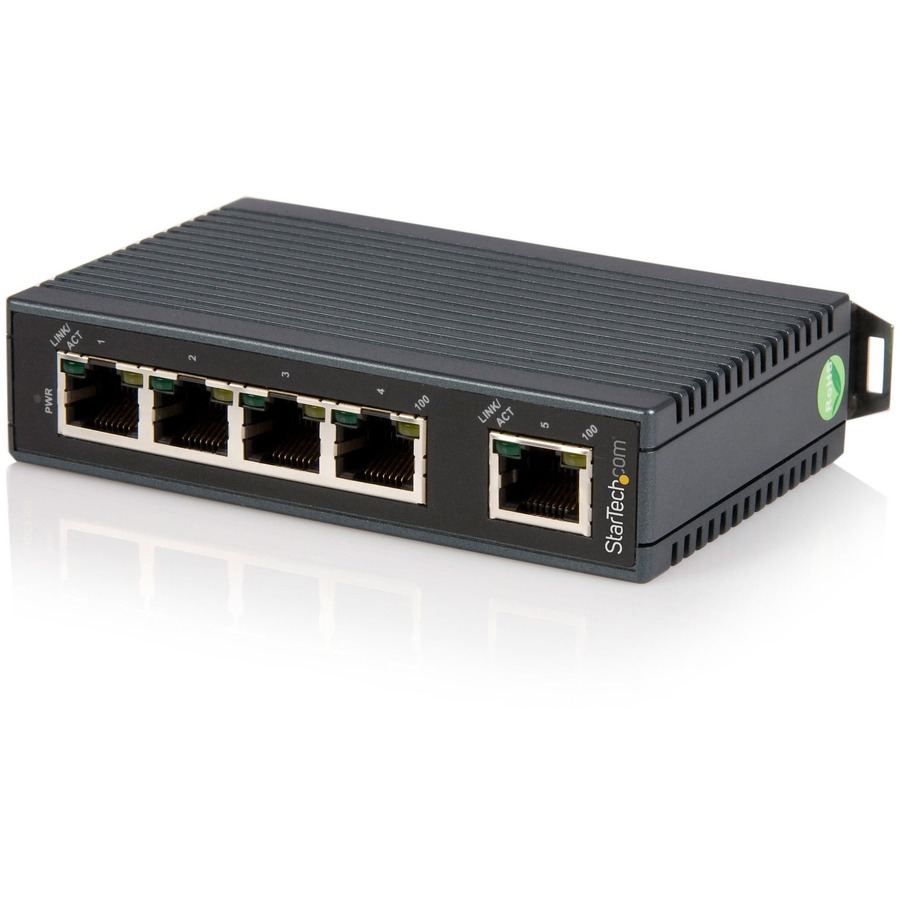

StarTech  -  Computer Components, StarTech, 5-Port Industrial Ethernet Switch, DIN Rail Mountable
  • Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch
  • Wide-range 12-48V DC terminal block input
  • Easy installation with an integrated DIN rail bracket
  • Wider range of operating temperatures, ideal for industrial environments
  • IEEE 802.3az Energy-Efficient Ethernet
  • Supports 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation
  • Supports IEEE 802.3x flow control and back pressure
  • Store-and-forward switching mechanism
Read More

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$86.03
In Stock
StarTech IES5102 Accessory
StarTech IES5102 Accessory
StarTech IES5102 Accessory StarTech IES5102 Accessory
Interfaces/Ports
Total Number of Network Ports:
5
Token Ring Port:
No
LRE Port:
No
Bypass:
No
Modular:
No
Management Port:
No
USB:
No
Stack Port:
No
Number of Network (RJ-45) Ports:
5
Network (RJ-45):
Yes
Port/Expansion Slot Details:
5 x Fast Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Reliability
MTBF:
1179133 Hour
Power Description
PoE (RJ-45) Port:
No
Input Voltage:
48 V DC
Power Consumption:
2.12 W
Physical Characteristics
Color:
Black
Material:
Plastic
Form Factor:
Rail-mountable
Height:
4.3"
Width:
1"
Length:
2.8"
Weight (Approximate):
5.30 oz
Miscellaneous
Package Contents:
  • 5-Port Industrial Ethernet Switch - DIN Rail Mountable
  • 1 x Terminal Block
  • 1 x Instruction Manual CD
Certifications & Standards:
  • CE
  • FCC

Industry Sandards:

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3az
  • IEEE 802.1P
Regulatory Approvals:
  • EN61000-6-2
  • EN61000-6-4
  • EN61000-4-3 (Radiated RFI Standards)
  • EN61000-4-4 (Burst Standards)
  • EN61000-4-6 (Induced RFI Standards)
  • EN61000-4-8 (Magnetic Field Standards)
  • IEC60068-2-6 Fc (Vibration)
  • IEC60068-2-27 Ea (Shock)
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
  • WEEE
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0065030859745
UPC: 065030859745
EAN: 0065030859745
UNSPSC: 43222612
