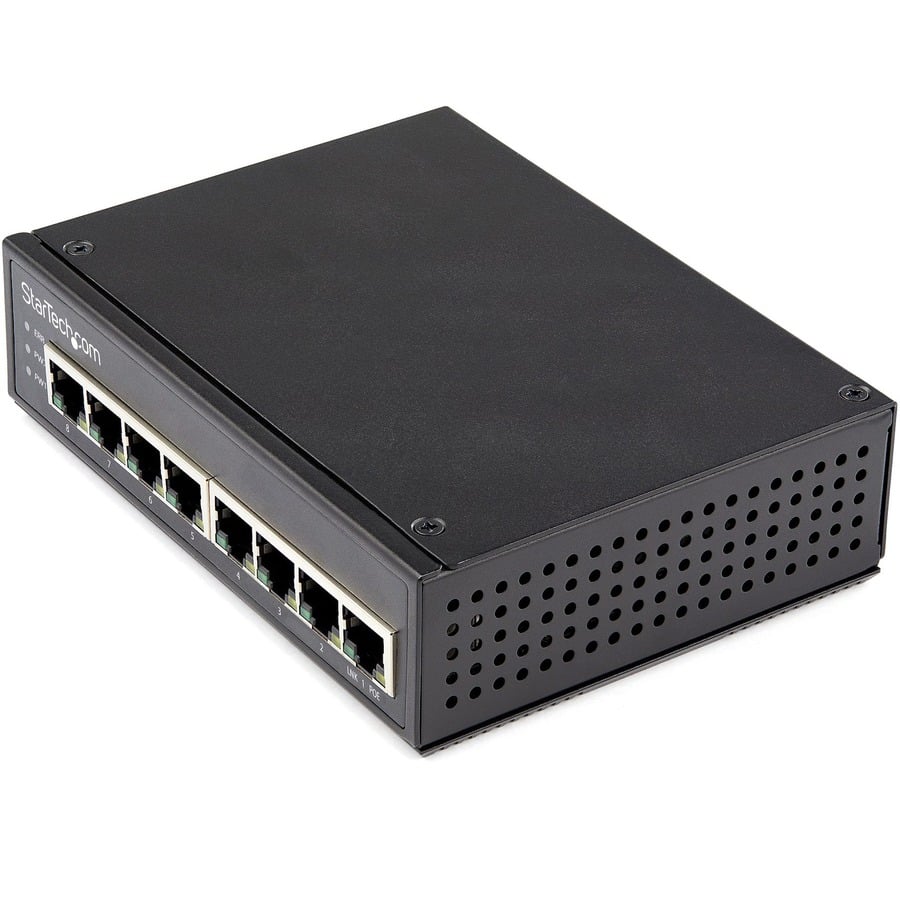

StarTech IESC1G80UP Accessory

StarTech - Computer Components, StarTech, Industrial 8 Port Gigabit PoE Switch, 30W, Power Over Ethernet Switch, GbE PoE+ Unmanaged Switch, Rugged High Power Gigabit Network Switch IP-30/ -40 C, 75 C

POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) | Use with devices like cameras & access points using Cat 5e/6
TECH SPECS: 8 port GbE PoE switch | 8 PoE ports | IEEE 802.3af / IEEE 802.3at | 10/100/1000 Mbps | Unmanaged | Error Alarm Relay | Redundant Power Input | Terminal Block Power | 200W power budget
ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged industrial IP-30 aluminum housing | -40C to 75C hardened operating temp | DIN/Wall Mount
REDUNDANT POWER: Dual terminal block power inputs (48-56VDC) provide redundancy for high-availability applications
STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount

Add to Quote

$458.56

In Stock

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Network (RJ-45):

Yes

Port/Expansion Slot Details:

8 x Gigabit Ethernet PoE+

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Gigabit Ethernet

Network Technology:

10/100/1000Base-T

Network & Communication

Layer Supported:

Networking Standards:

IEEE 802.3x

Management & Protocols

Manageable:

Power Description

PoE (RJ-45) Port:

Yes

PoE Budget:

200 W

Power Source:

PoE+

Power Consumption:

206 W

Plug/Connector Type:

Terminal Block

Physical Characteristics

Material:

Steel

Form Factor:

DIN Rail Mountable
Wall Mountable

Height:

1.6"

Width:

4.1"

Length:

5.6"

Weight (Approximate):

1.18 lb

Miscellaneous

Package Contents:

Ethernet Switch
Mounting Hardware Kit
Quick-Start Guide
Terminal Block

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Country of Origin:

Taiwan

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0065030889605

UPC: 065030889605

EAN: 0065030889605

UNSPSC: 43222612
