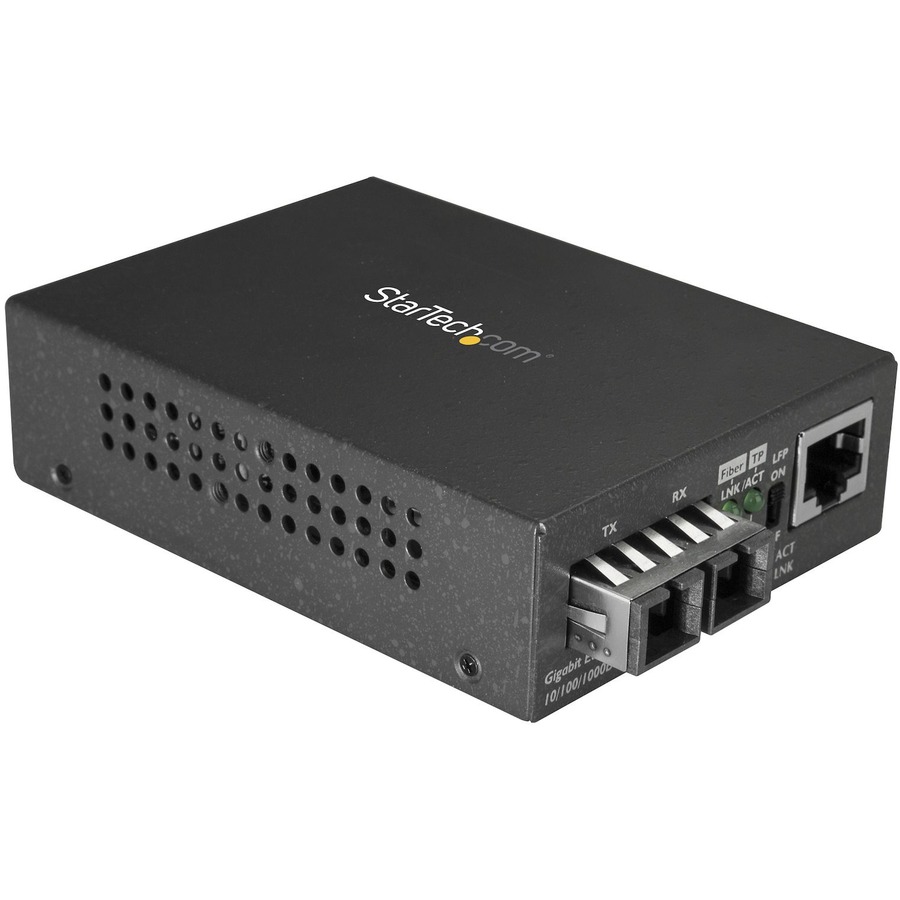

StarTech MCMGBSCMM055 Accessory

StarTech  -  Cable, StarTech, Multimode (MM) SC Fiber Media Converter for 10/100/1000 Network, 550m Range, Gigabit Ethernet, 850nm, Full Duplex
  • Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
  • Provides a cost-effective Ethernet to fiber/copper to fiber link
  • Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)
  • Compact design and wall mountable
  • Non-blocking full wire-speed forwarding rate
  • Provides DIP switch supporting Link Fault Pass-through function
  • LED Indicators for simple Ethernet/fiber network link monitoring
  • 850 nm wavelength
  • Supports IEEE 802.1q Tag VLAN pass-through
Read More

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$97.18
StarTech MCMGBSCMM055 Accessory
StarTech MCMGBSCMM055 Accessory
StarTech MCMGBSCMM055 Accessory StarTech MCMGBSCMM055 Accessory
Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
1
SC Port Type:
Duplex
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Fiber Mode Supported:
Multi-mode
Fiber Optic Wavelength:
850 nm
Maximum Distance Supported:
1804.46 ft
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 1000Base-T
  • 1000Base-SX
  • 1000Base-TX
  • 10Base-T
Power Description
Power Source:
AC Adapter
Power Consumption:
10 W
Plug/Connector Type:
Type N
Physical Characteristics
Form Factor:
Wall Mountable
Height:
1"
Width:
3.8"
Depth:
2.8"
Weight (Approximate):
7.10 oz
Miscellaneous
Package Contents:
  • Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
  • 1 x Universal power adapter (NA/JP, UK, EU, ANZ)
  • 1 x Quick-start guide
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
  • REACH
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0065030878227, 0818214635204, 0818239508774, 0818239741997, 0818241349389, 0818242680658
UPC: 065030878227, 818214635204, 818239508774, 818239741997, 818241349389, 818242680658
EAN: 0065030878227, 0818214635204, 0818239508774, 0818239741997, 0818241349389, 0818242680658
UNSPSC: 43201553
