MPEX4S552 Accessory

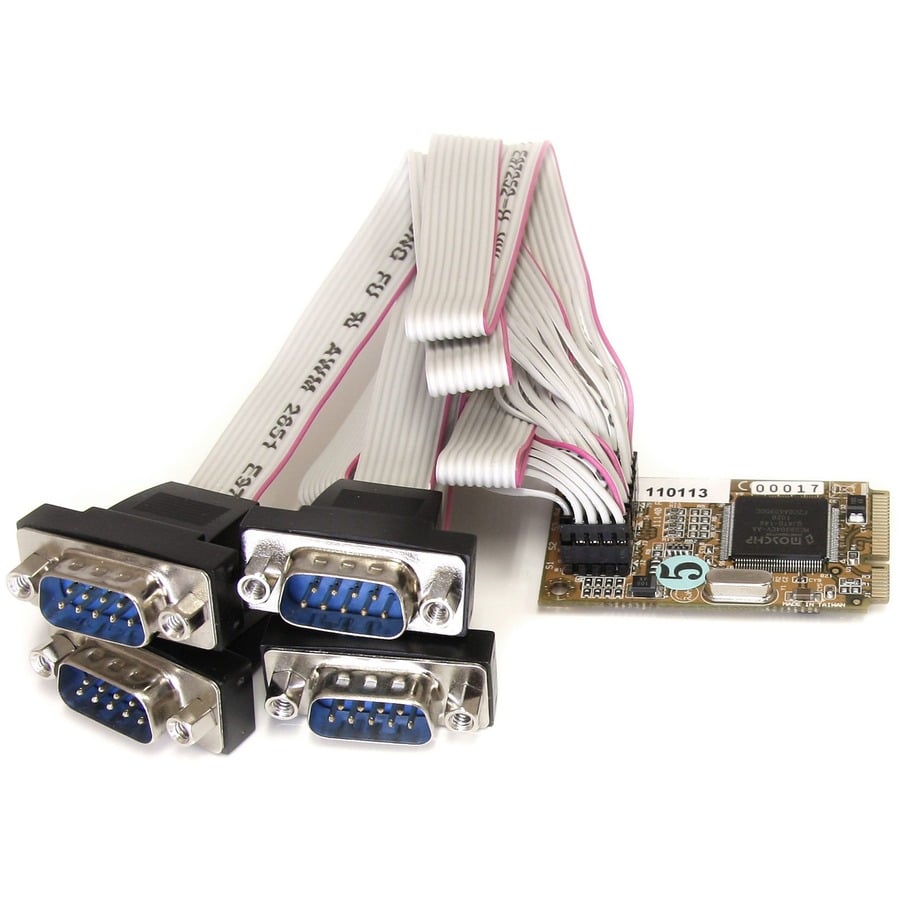

StarTech - Computer Components, StarTech, 4 Port RS232 Mini PCI Express Serial Card With 16650 UART

Four high speed RS232 serial ports with data transfer rates up to 921.6 Kbps
High Performance 16650 UART
Includes 4x 30cm IDC to DB9 serial cables
256-byte deep FIFO per transmitter and receiver
Native single-chip, single lane PCI Express
In-band software flow control, using programmable Xon/Xoff in both directions
Automated out-of-band hardware flow control using RTS/CTS
Compliant with PCI Express base specifications revision 1.1

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount

Add to Quote

$99.09

In Stock

Detailed Specs

Technical Information

Host Interface:

Mini PCI Express

Maximum Data Transfer Rate:

7.20 Mbit/s

Platform Supported:

PC
Mac
Linux

Interfaces/Ports

Ports Expandability:

4 x DB-9 RS-232 - Serial

Physical Characteristics

Product Color:

Green

Form Factor:

Plug-in Card

Card Length:

Full-length

Height:

1.2"

Width:

0.4"

Weight (Approximate):

5.30 oz

Miscellaneous

Package Contents:

4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
4 x DB9 Ribbon Cable
1 x Driver CD
1 x Instruction Manual

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE
REACH

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0065030844611, 0818242686575, 0993247221300

UPC: 065030844611, 818242686575, 993247221300

EAN: 0065030844611, 0818242686575, 0993247221300

UNSPSC: 43201407
