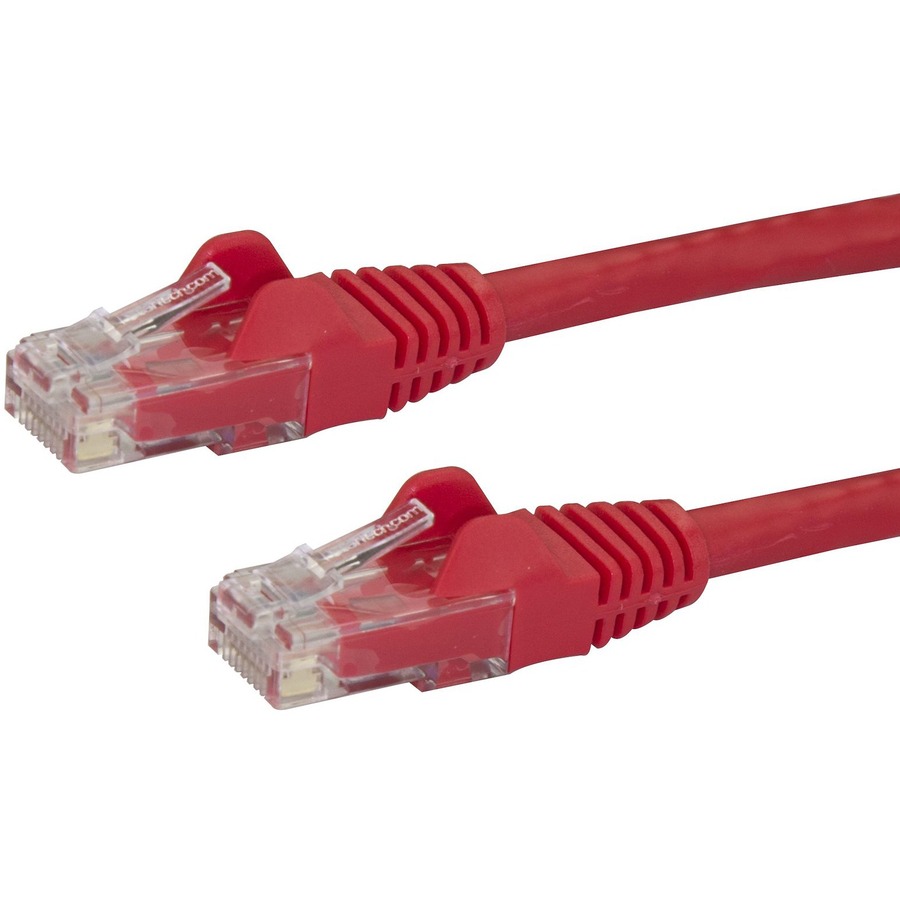

StarTech N6PATCH7RD Accessory

StarTech - Cable, StarTech, 7'' CAT6 Ethernet Cable, Red, Up To 10GBPS Up To 160'', 650Mhz, ANSI/TIA-568-2.D Category 6, 24 Awg, Stranded, 100% Copper UL Rated Wire (E132276-A), 100W, POE, 7'', ETL, Snagless UTP

Colored hoods for departmental color coding
Molded strain relief prevents the cable from being bent at sharp angles at the RJ45 connector, to minimize the stress at the plug termination point
HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 160'; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6; ETL Verified
POE SUPPORT: 24 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating
QUALITY CONSTRUCTION: ETL & UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to avoid costly network downtime; High quality PVC jacket resists bending or fraying damage
EASY INSTALLATION: 7 foot snagless patch cord for easy installation & flexible disconnection in wiring conduits; Compatible w/Cat5e & earlier standards; Molded boots available for constrained spaces
SPECS: Length: 7ft (2m) | Color: Red | 650 MHz Rated | Structure: 4 Pair UTP | RJ45 | Jacket: PVC | Wire Gauge: 24 AWG Copper | Wiring: ANSI/T568B | ETL Verified | Warranty: Lifetime

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount

Add to Quote

$13.56

In Stock

Detailed Specs

Technical Information

Cable Type:

Category 6

Cable Characteristic:

Patch Cable

Cable Length:

7 ft

Connector on First End:

1 x RJ-45 Male Network

Connector on Second End:

1 x RJ-45 Male Network

Connector Plating:

Gold

Features:

Molded
Snagless
Minimized Near-End Crosstalk (NEXT)
Strain Relief
Stranded
Booted
PoE++
Bend Resistant
Rust Resistant
Corrosion Resistant
Fray Resistant
Stress Resistant
Damage Resistant
Heat Resistant
Flexible
PoE
Snag Resistant
Break Resistant
Molded Boot

Conductor:

Copper

Shielding:

Jacket Type:

CMG

Device Supported:

Network Device
Workstation
IP Phone
Hub
Distribution Panel
Wall Outlet

American Wire Gauge:

24 AWG

Data Transfer Rate:

10 Gbit/s

Physical Characteristics

Color:

Red

Product Material:

Copper

Jacket Material:

Polyvinyl Chloride (PVC)

Weight (Approximate):

0.22 lb

Miscellaneous

Additional Information:

50-micron gold connectors ensure optimum conductivity while eliminating network signal loss due to oxidation or corrosion
Backed by StarTech.com lifetime warranty
RJ45 connector clip protectors help keep the plugs from snagging while routing the cable, for easier Cat 6 cable runs

Certifications & Standards:

ETL Verified
UL Listed
ANSI/TIA-568-B
CMG Rated
TIA/EIA-568-B.1-2001 T568B

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE
REACH

Country of Origin:

China

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0065030838283, 0696450278856, 0818242905614

UPC: 065030838283, 696450278856, 818242905614

EAN: 0065030838283, 0696450278856, 0818242905614

UNSPSC: 26121609
