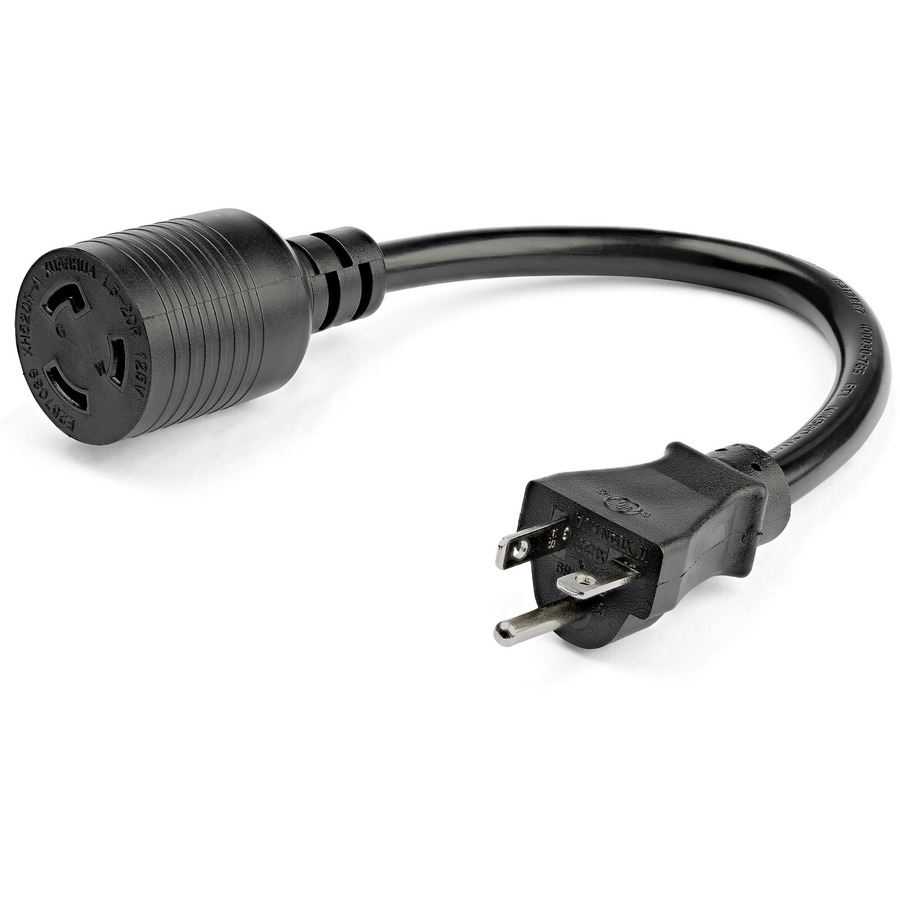

StarTech PAC520PLR1 Power Device

StarTech  -  Power, StarTech, Power, 1'' Power Adapter Cord, Nema-L5-20R To Nema-5-20P Connectors, Fully Molded Strain Relief Connectors, 12 Awg Wire, Locking Nema-L5-20 Receptacle
  • HEAVY DUTY EXTENSION CABLE: This 1ft (0.3m) 12AWG universal power cord with NEMA-L5-20R to NEMA-5-20P connectors is suitable for servers or other high-powered equipment | Indoor use | Rated to carry 125V at 20A
  • PERFORMANCE AND SAFETY: UL listed (UL62 & UL817) | Fully molded strain relief on connectors for durability | Fire Rating: VW-1 | 3 Conductor Power cable made with 100% copper wire | Available in other lengths
  • SPECS: 1ft (0.3m) AC Power Cord | NEMA-L5-20R to NEMA-5-20P | 12AWG | 125V 20A (Max) | Jacket Type: SJT | Jacket Material: PVC | Black | Temperature Range: 37?F to 227?F (3?C to 105?C) | Cable Outer Diameter: 0.36in (9.14mm)
  • COMPATIBILITY: PC Power Cord NEMA 5-20P works with North American outlets | Extend connections to servers, desktop computers, monitors, printers, and more | Replacement power extension cable/cord
  • THE IT PRO?S CHOICE: Designed and built for IT Professionals, this power extension cable is backed for life, including free lifetime 24/5 multilingual technical assistance
Read More
Add to Quote
$27.52
In Stock
Technical Information
First End Connector Type:
NEMA 5-20R
First End Connector Detail:
1 x 3-pin NEMA 5-20R Female
Second End Connector Type:
NEMA L5-20P
Second End Connector Detail:
1 x 3-pin NEMA L5-20P Male
Device Supported:
  • Desktop Computer
  • PDU
  • Server
  • Printer
  • Monitor
Localization:
North America
Power Description
Voltage Rating:
125 V AC
Current Rating:
20 A
Physical Characteristics
Color:
Black
Cord Length:
1 ft
Weight (Approximate):
0.38 lb
Environmental Conditions
Minimum Operating Temperature:
37°F (2.8°C)
Maximum Operating Temperature:
227°F (108.3°C)
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0065030883719
UPC: 065030883719
EAN: 0065030883719
UNSPSC: 26121629
