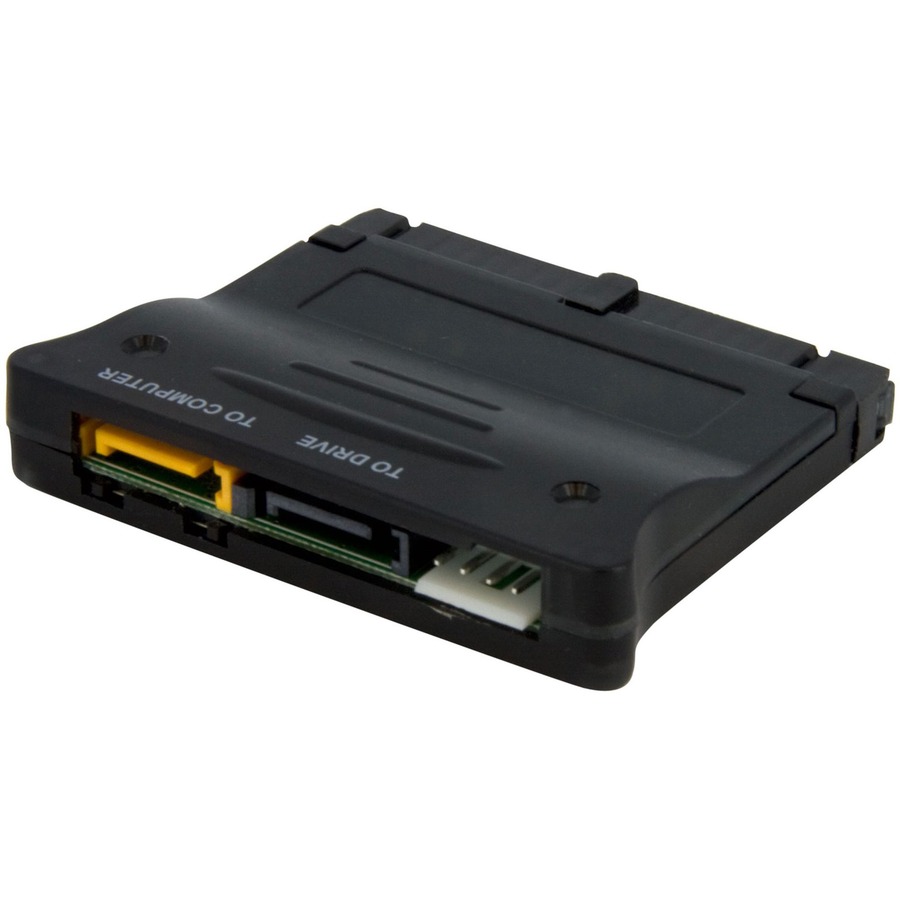

StarTech PATA2SATA3 Accessory

StarTech - Adapter, StarTech, Bi-Directional SATA IDE Adapter

Bi-Directional support for IDE-to-SATA or SATA-to-IDE communication
Compatible with PATA (IDE) 100/133 MBps hard devices
Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) devices
Supports SATA/IDE ATAPI devices, such as CD/DVD optical drives
Fully compliant with Serial ATA 1.0a specifications, with transfer rates up to 1.5 Gbps
Compatible with Master/Slave/Cable Select modes for IDE devices
No driver or software required

Read More

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount

$34.40

In Stock

StarTech PATA2SATA3 Accessory

StarTech PATA2SATA3 Accessory

Technical Information

Connector Type on First End:

IDE - Female

Connector on First End Details:

1 x 40-pin IDE Female

Connector Type on Second End:

SP4 Power - Male
SATA - Male

Connector on Second End Details:

1 x 4-pin SP4 Power Male
2 x 7-pin SATA Male

Features:

LED Indicator

Physical Characteristics

Product Color:

Black

Product Material:

Plastic

Height:

0.4"

Width:

2"

Length:

2.4"

Weight (Approximate):

0.71 oz

Miscellaneous

Package Contents:

Bi-Directional SATA IDE Converter
SP4 to Dual LP4 Y
Power Adapter
SATA Cable Instruction Manua

Additional Information:

OS independent: No software or drivers required

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
REACH
WEEE

Country of Origin:

China

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0065030836982

UPC: 065030836982

EAN: 0065030836982

UNSPSC: 26121604

Get help from a Barcoding Expert!

The StarTech PATA2SATA3 Accessory is also known as PATA2SATA3
