StarTech PCI2S1P Accessory

The StarTech PCI2S1P Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

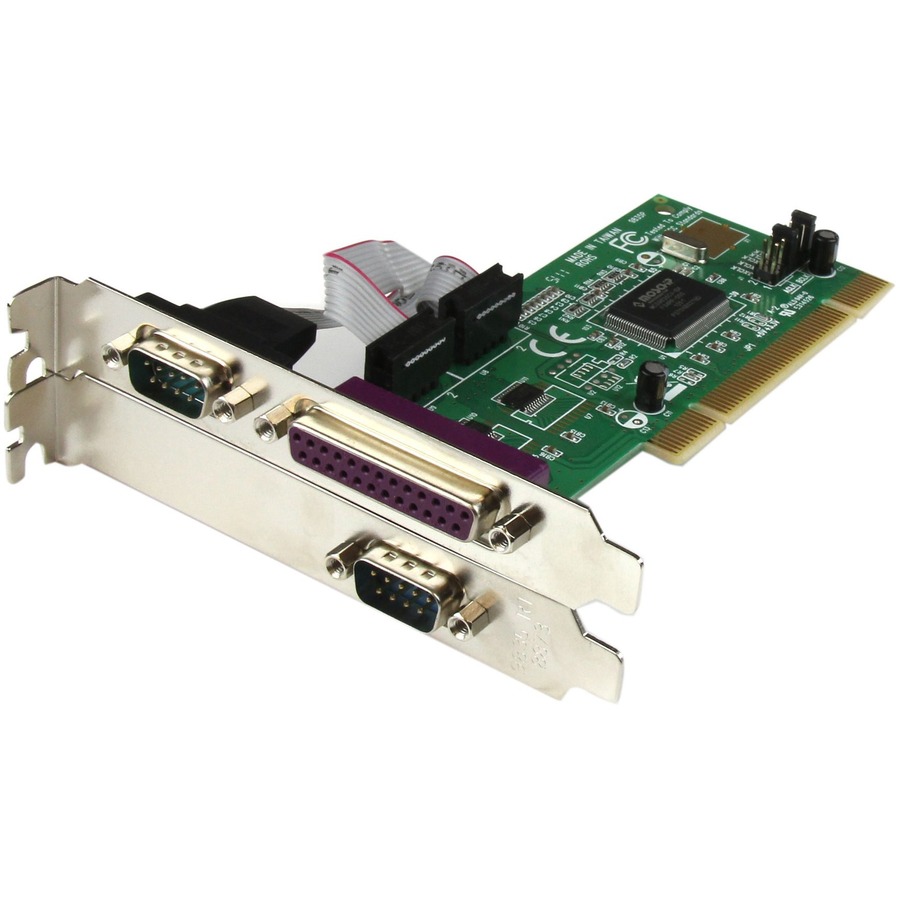

StarTech - Cable, StarTech, PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) And 1x Parallel LPT Port (DB25), PCI Combo Adapter Card, PCI Expansion Card Controller, PCI to Printer Card

Two 16C550 serial ports with data transfer up to 115.2 Kbits/sec
One EPP/ECP parallel port with data transfer up to 1.5 Mbits/sec
Includes optional low profile/half-height mounting bracket
Parallel port supports EPP, ECP, SPP and BPP
IRQ sharing eliminates conflicts between multiple cards

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Detailed Specs

Technical Information

Host Interface:

PCI

Data Transfer Rate:

Up to 430kB/s Serial Port

UART Type:

16550

Parallel Port Modes:

EPP/ECP

Interfaces/Ports

Number of Parallel Ports (External):

Number of Serial Ports (External):

Physical Characteristics

Form Factor:

Plug-in Card

Card Height:

Low-profile

Height:

4.7"

Width:

0.8"

Length:

4.7"

Weight (Approximate):

2.30 oz

Miscellaneous

Package Contents:

2S1P PCI Serial Parallel Combo Card with 16550 UART
1 x DB9 Ribbon Cable
3 x Low Profile Brackets
1 x Driver CD
1 x Instruction Manual

Additional Information:

Guaranteed compatibility with any PC running Windows, DOS or Linux for simple integration into your application
All three ports share only one IRQ, minimizing system resources required for the card
Easy to install and use with full step-by-step instruction providing a hassle free serial solution

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
REACH
WEEE

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0065030781022

UPC: 065030781022

EAN: 0065030781022

UNSPSC: 43201552
