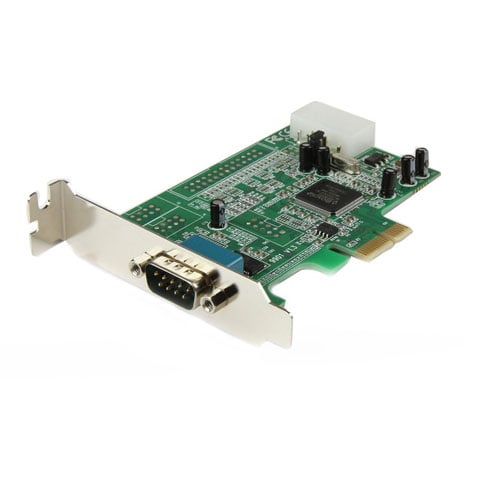

StarTech PEX1S553LP Accessory

StarTech  -  Computer Components, StarTech, 1-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Serial DB9, 16550 UART, Low Profile Expansion Card, Windows And Linux
  • One high speed RS232 serial port with data transfer rate up to 460.8 Kbps
  • Ships with half-height/low profile mounting bracket, includes standard bracket
  • Selectable power output on pin 9 for the serial port
  • Native single-chip, single lane PCI Express
  • Single chip design optimizes speed and reliability
  • Compliant with PCI Express base specifications revision 1.1a
  • Automated out-of-band flow control using CTS/RTS and DSR/DTR
  • Automated in-band software flow control using programmable Xon/Xoff in both directions
  • 256 Byte FIFO
Read More
Add to Quote
$45.82
In Stock
Technical Information
Host Interface:
PCI Express x1
Data Transfer Rate:
460kB/s
UART Type:
16550
Platform Supported:
  • PC
  • Mac
  • Linux
Interfaces/Ports
Number of Serial Ports (External):
1
Physical Characteristics
Form Factor:
Plug-in Card
Card Height:
Low-profile
Height:
0.8"
Width:
3.1"
Length:
4.1"
Weight (Approximate):
1.60 oz
Miscellaneous
Package Contents:
  • 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
  • Full Profile Bracket
  • Driver CD
  • Instruction Manual
Additional Information:
  • Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance.
  • Pre-configured for low profile/half-height systems but includes a full profile bracket for versatility.
  • Easy to install and use with full step-by-step instructions saving time and hassle.
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS
  • Windows Server® 2012, 2008 R2, 2003
  • Mac OS® 10.4 and later (tested up to 10.10)
  • Linux kernel 2.6.x
  • Environmentally Friendly:
    Yes
    Environmental Certification:
    • RoHS
    • REACH
    • WEEE
    Country of Origin:
    Taiwan
    TAA Compliant:
    Yes
    Warranty
    Limited Warranty:
    2 Year
    Item Numbers
    GTIN: 0065030841733
    UPC: 065030841733
    EAN: 0065030841733
    UNSPSC: 43201559
