StarTech PEX1S953LP Accessory

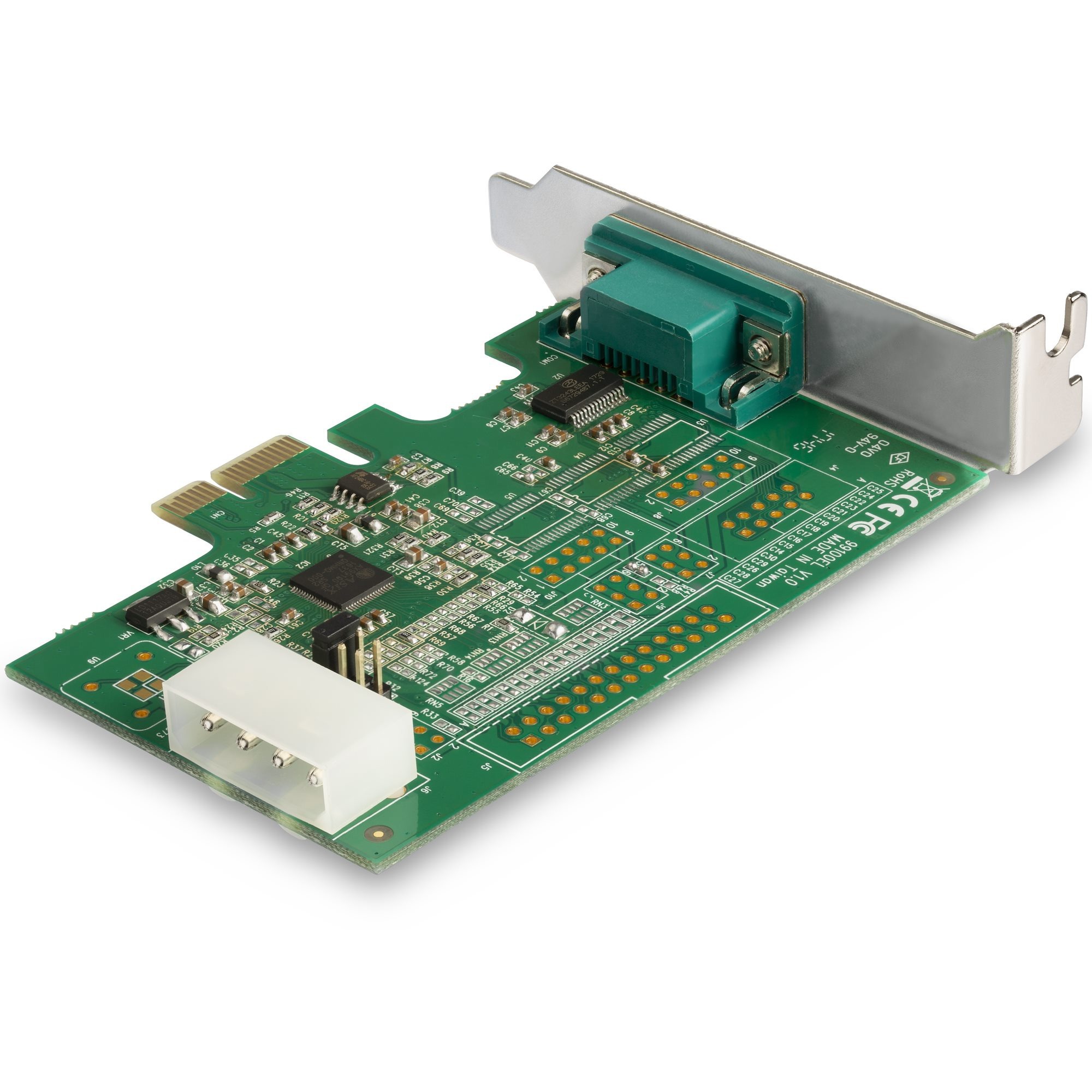

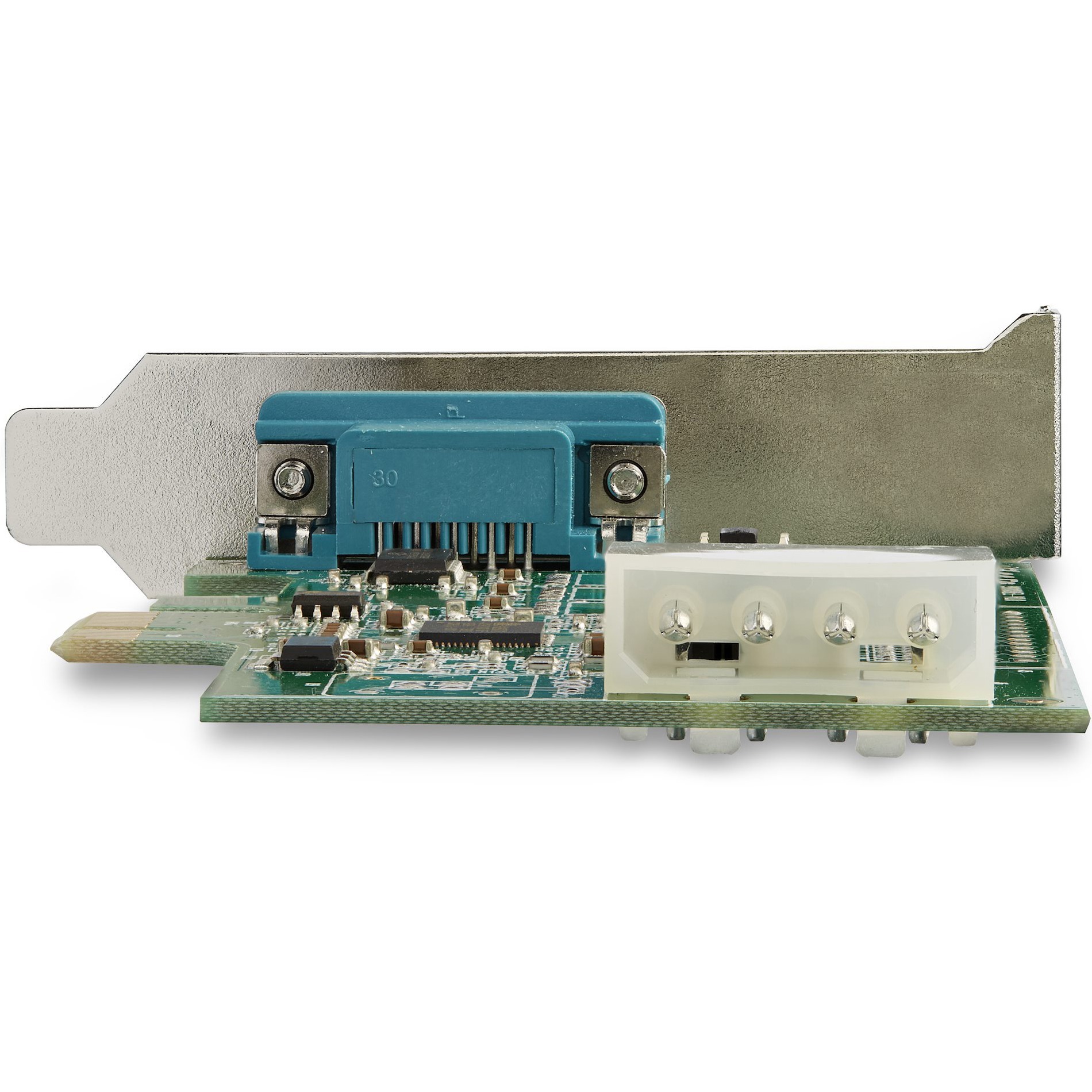

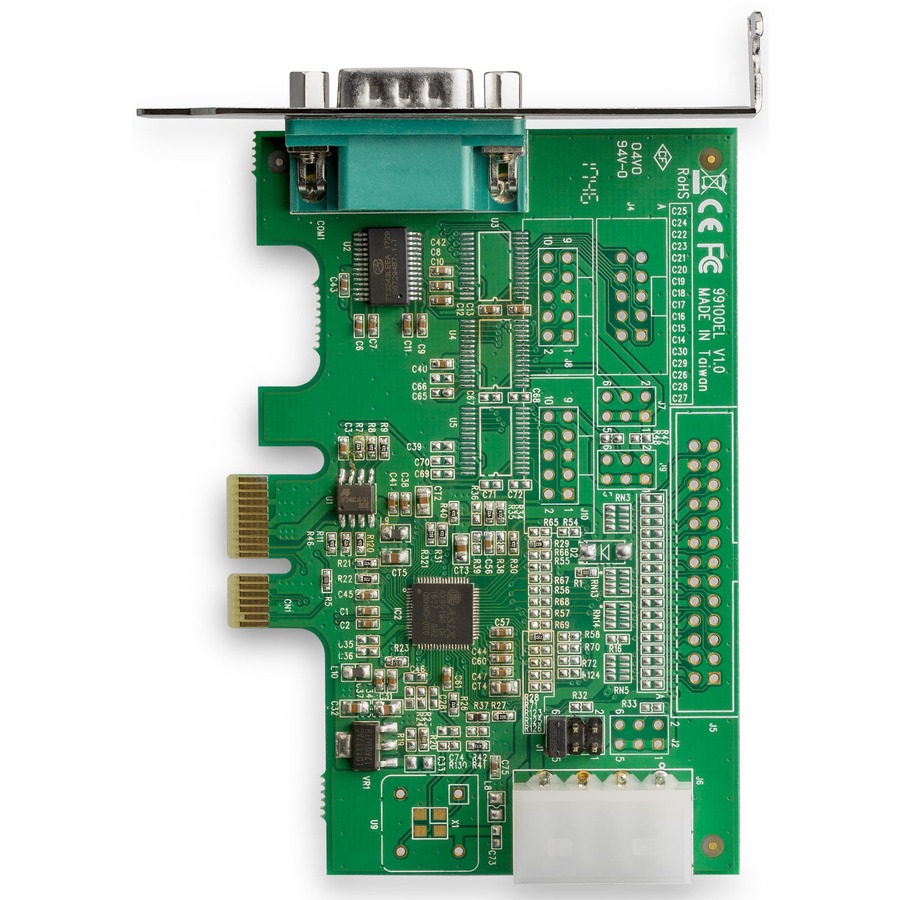

StarTech  -  Printer Spare Parts, StarTech, Controller Card, 1-Port PCI Express RS-232 Serial Controller Card, 16950 UART/ASIX AX99100, Bi-DIrectional, 921.6Kbps/Port, 256 Byte FIFO, 9th Data Bit, Pin 9 Power Out 5V/12V/None, Up To 2A Total, Expansion Card with Low Profile. Includes: Standard Bracket
  • 1 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100, allows 1x DB9 port w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit; Upgraded version of our popular card PEX1S952LP
  • OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total
  • STANDARD PROFILE & LOW PROFILE BRACKET: PCIe serial card comes w/ a low profile bracket pre-installed & 1x full profile bracket is incl for versatile install; Supports Windows XP and up & Linux
  • VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCI-e RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support
Read More
Add to Quote
$61.09
In Stock
Technical Information
Host Interface:
PCI Express x1
UART Type:
16950
Platform Supported:
  • PC
  • Linux
Interfaces/Ports
Number of Serial Ports (External):
1
Physical Characteristics
Form Factor:
Plug-in Card
Card Height:
Low-profile
Height:
5.9"
Width:
2.6"
Length:
3.9"
Weight (Approximate):
1.60 oz
Miscellaneous
Package Contents:
  • 1-Port PCI Express Serial Card with 16950 UART - Low-Profile
  • 1 x Full-Profile Bracket
  • 1 x User Manual
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
  • WEEE
Country of Origin:
Taiwan
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0065030881159, 0993246475919
UPC: 065030881159, 993246475919
EAN: 0065030881159, 0993246475919
UNSPSC: 43201559
