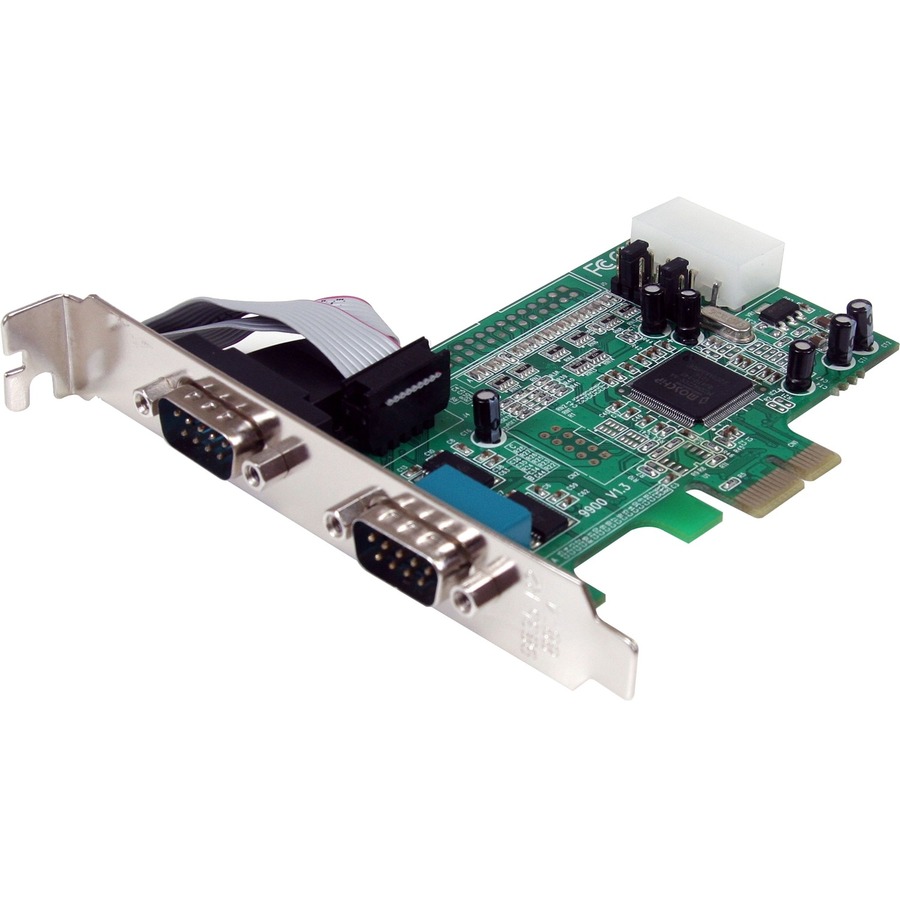

StarTech PEX2S553 Accessory

StarTech  -  Computer Components, StarTech, 2-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Dual Serial DB9 Card, 16550 UART, Expansion Card, Windows And Linux
  • Two high speed RS232 serial ports with support for data transfer rates up to 460.8 Kbps
  • Compliant with PCI Express base specifications revision 1.0a
  • Includes half-height/low profile mounting bracket
  • Selectable power output on pin 9 for the serial port
  • 128-byte deep FIFO per transmitter and receiver
  • Native single-Chip, single lane PCI Express
  • Automated out-of-band flow control using CTS/RTS and DSR/DTR
  • Automated in-band software flow control using programmable Xon/Xoff in both directions
Read More
Add to Quote
$46.53
In Stock
Technical Information
Host Interface:
PCI Express x1
Data Transfer Rate:
460.8kB/s
UART Type:
16550
Platform Supported:
  • PC
  • Mac
  • Linux
Interfaces/Ports
Number of Serial Ports (External):
2
Physical Characteristics
Form Factor:
Plug-in Card
Card Height:
Half-height/Low-profile
Height:
0.8"
Width:
4.7"
Length:
4.1"
Weight (Approximate):
2.20 oz
Miscellaneous
Package Contents:
  • 2 Port PCIe Serial Adapter Card with 16550
  • Low Profile Brackets
  • Driver CD
  • Instruction Manual
Additional Information:
  • Native single-chip, single lane PCI Express chipset delivers true PCIe performance.
  • Standard and low profile/half-height bracket included to ensure fitment in any system.
  • Easy to install and use with full step-by-step instructions saving time and hassle.

OS Compatibility:

  • Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Mac OS X® 10.4 to 10.10
  • Linux kernel 2.6.x to 4.11.x LTS Versions only
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0065030841740
UPC: 065030841740
EAN: 0065030841740
UNSPSC: 43201559
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The StarTech PEX2S553 Accessory is also known as PEX2S553
