StarTech PEX2S553LP Accessory

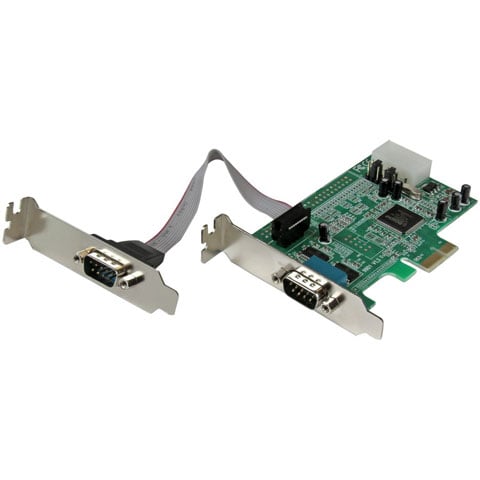

StarTech  -  Computer Components, StarTech, 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
  • One high speed RS232 serial port with data transfer rate up to 460.8 Kbps
  • Ships with half-height/low profile mounting bracket, includes optional standard profile bracket
  • Single chip design optimizes speed and reliability
  • Native single-chip, single lane PCI Express
  • Selectable power output on pin 9 for the serial port
  • Compliant with PCI Express base specifications revision 1.1a
  • Automated out-of-band flow control using CTS/RTS and DSR/DTR
  • Automated in-band software flow control using programmable Xon/Xoff in both directions
  • 128-byte deep FIFO per transmitter and receiver
Read More
Add to Quote
$44.45
In Stock
Technical Information
Host Interface:
PCI Express x1
Data Transfer Rate:
460kB/s
UART Type:
16550
Platform Supported:
  • PC
  • Mac
  • Linux
Interfaces/Ports
Number of Serial Ports (External):
2
Physical Characteristics
Form Factor:
Plug-in Card
Card Height:
Dual-profile
Height:
0.8"
Width:
3.1"
Length:
4.1"
Weight (Approximate):
2.20 oz
Miscellaneous
Package Contents:
  • 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
  • DB9 Ribbon Cable
  • Full Profile Bracket
  • Low profile Bracket
  • Driver CD
  • Instruction Manual
Additional Information:
  • Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance.
  • Pre-configured with half-height mounting bracket for low profile systems, but includes a full profile bracket for versatility.
  • Easy to install and use with full step-by-step instructions saves time and hassle.
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
  • WEEE
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0065030841757
UPC: 065030841757
EAN: 0065030841757
UNSPSC: 43201559
