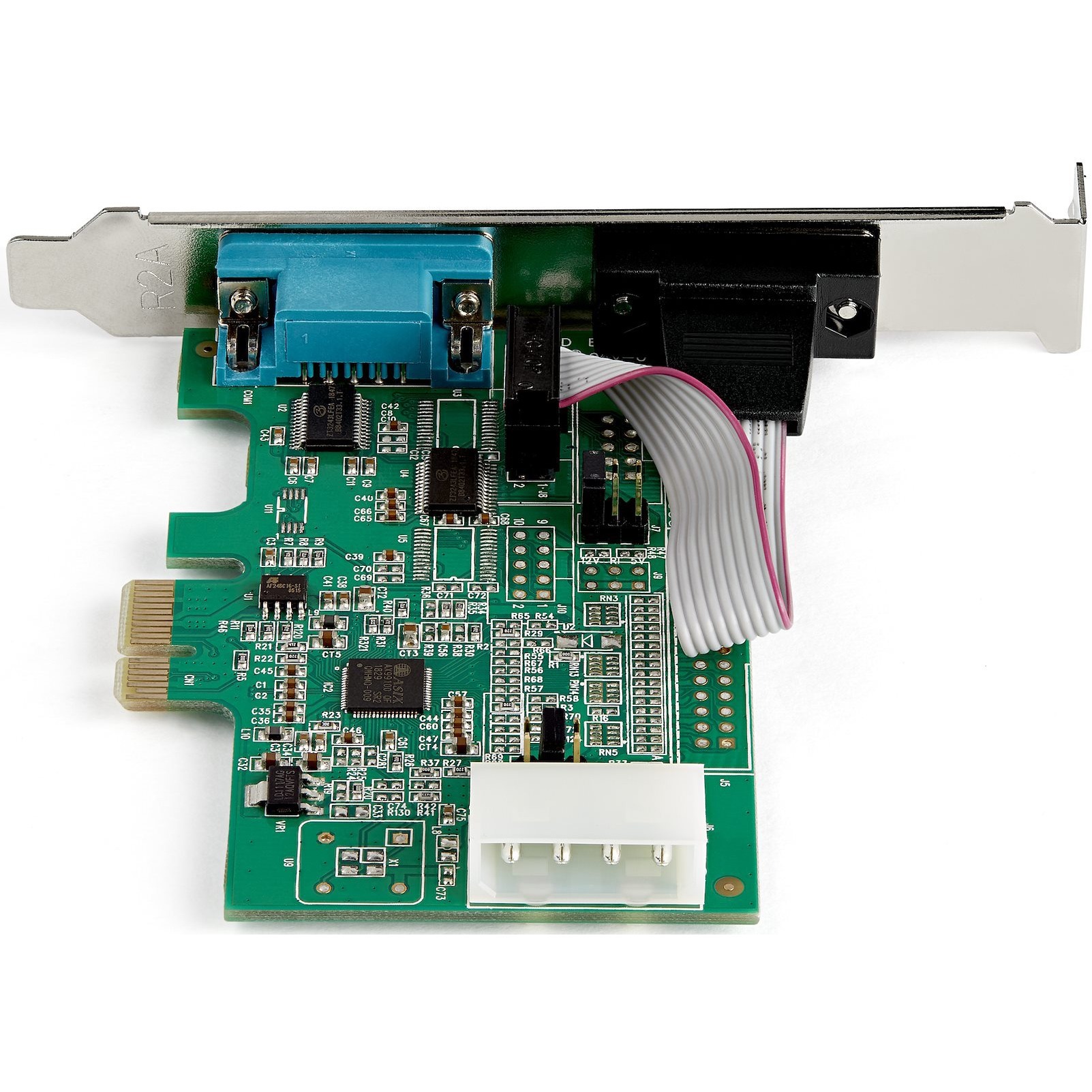

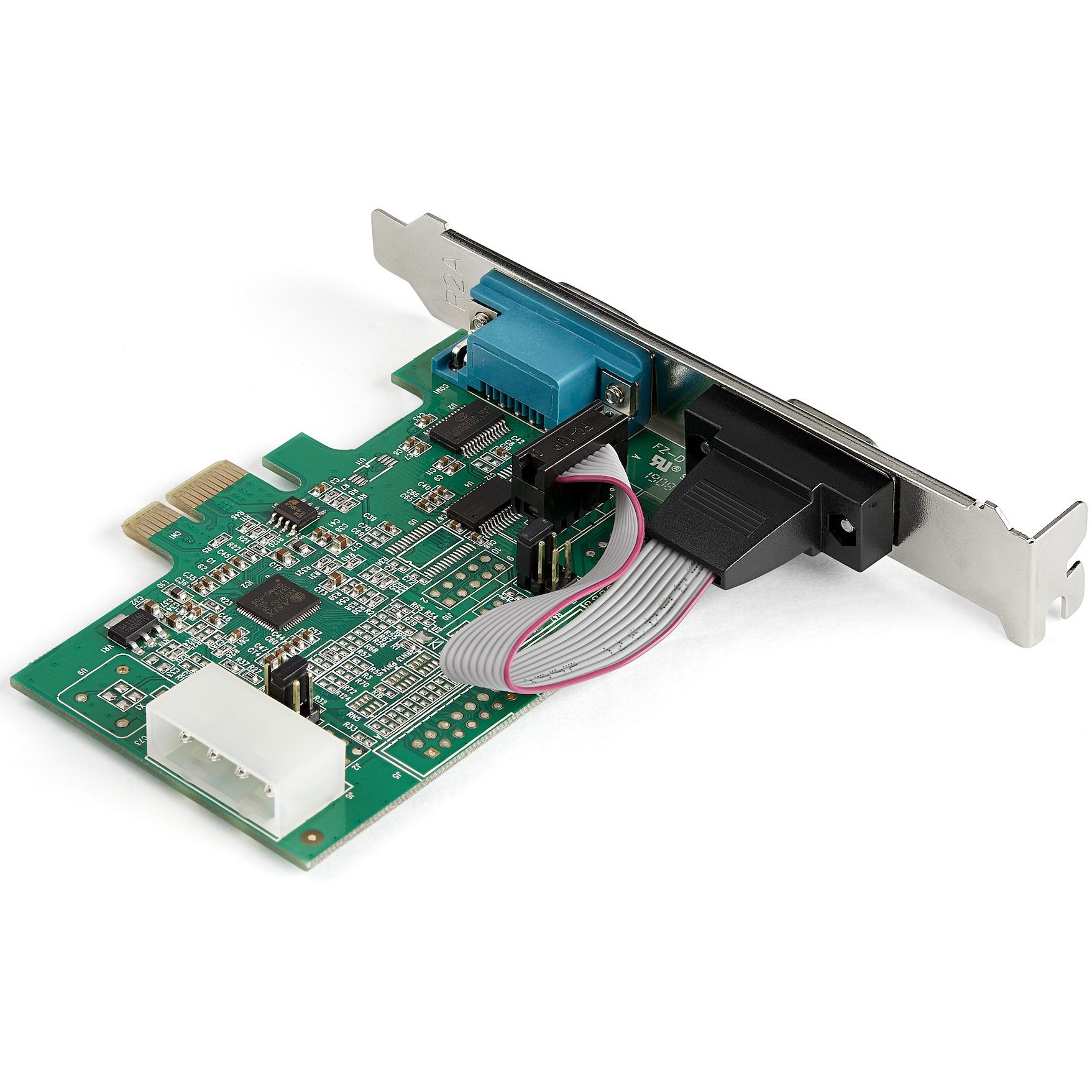

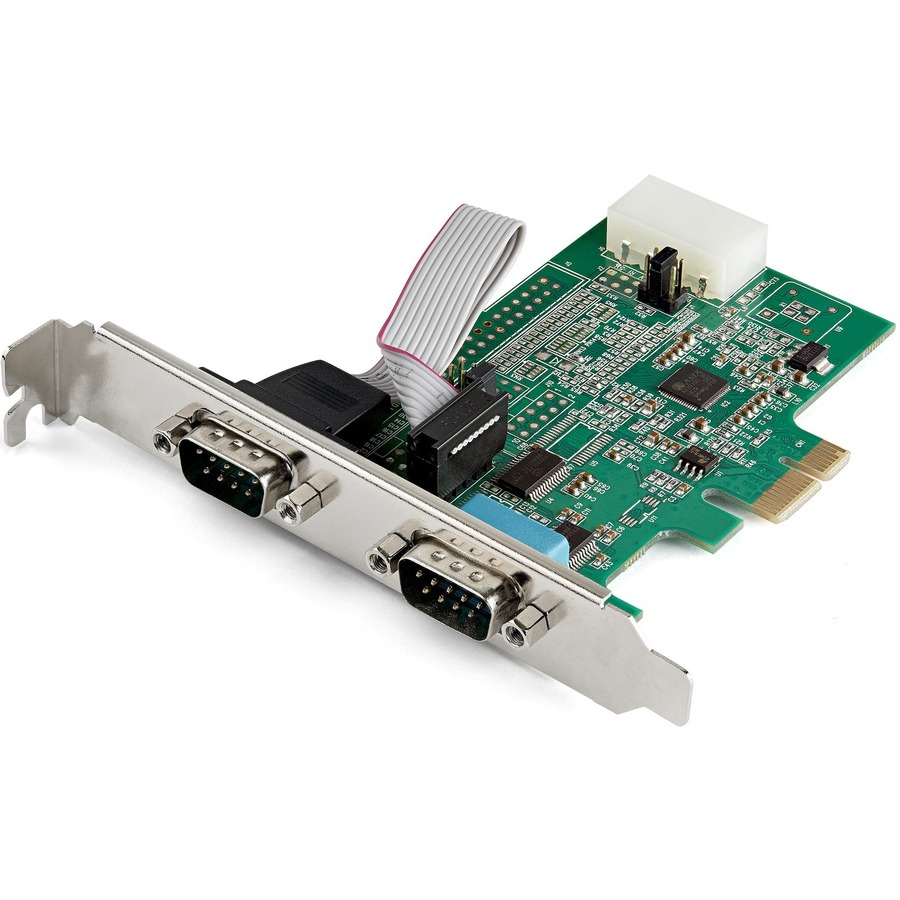

StarTech PEX2S953 Accessory

StarTech  -  Computer Components, StarTech, 2-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Dual Serial DB9 Card, 16950 UART, Expansion Card, Windows And Linux
  • 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit | Upgraded version of our popular card PEX2S952
  • OPTIONAL CONFIGURABLE POWER: PCI Express RS232 Serial Adapter Card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 2 ports are individually configurable
  • STANDARD PROFILE & LOW PROFILE BRACKET: PCIe multiport serial card comes w/ a standard bracket pre-installed & 2x low profile brackets incl for versatile install; supports Windows XP and up & Linux
  • VERSATILE APPLICATIONS: For standard profile desktop/servers with uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCI-e RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support
Read More
Add to Quote
$49.83
In Stock
Technical Information
Host Interface:
PCI Express 1.1 x1
UART Type:
16950
Platform Supported:
  • PC
  • Linux
Interfaces/Ports
Number of Serial Ports (External):
2
Physical Characteristics
Form Factor:
Plug-in Card
Card Height:
Low-profile
Height:
0.6"
Width:
2.5"
Length:
3"
Miscellaneous
Package Contents:
  • 2-Port PCI Express RS232 Serial Adapter Card - 16950 UART
  • 1 x Low Profile Bracket
  • 1 x Quick Start Guide
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
  • WEEE
Country of Origin:
Taiwan
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0065030888332
UPC: 065030888332
EAN: 0065030888332
UNSPSC: 43201559
