StarTech PEX4S953LP Accessory

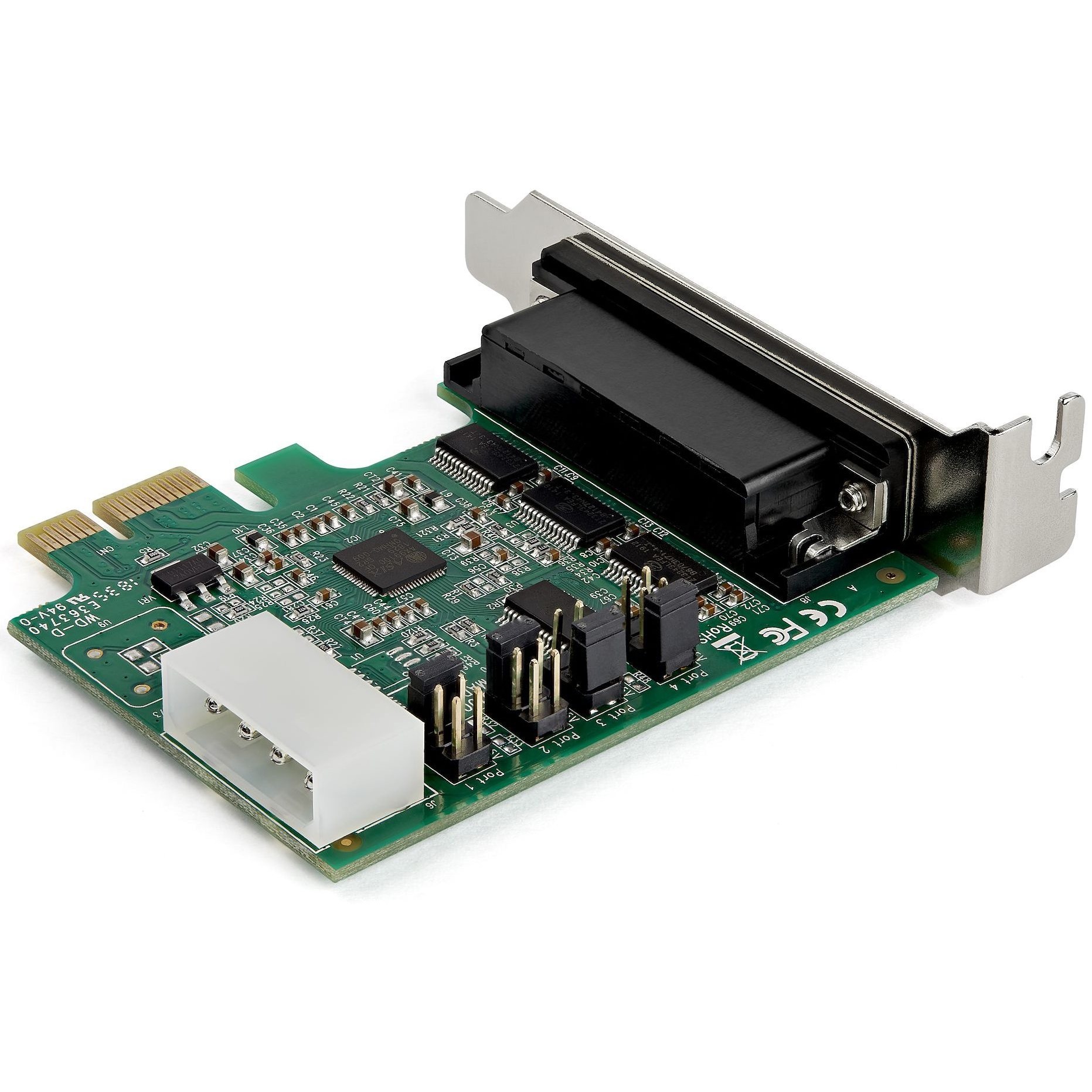

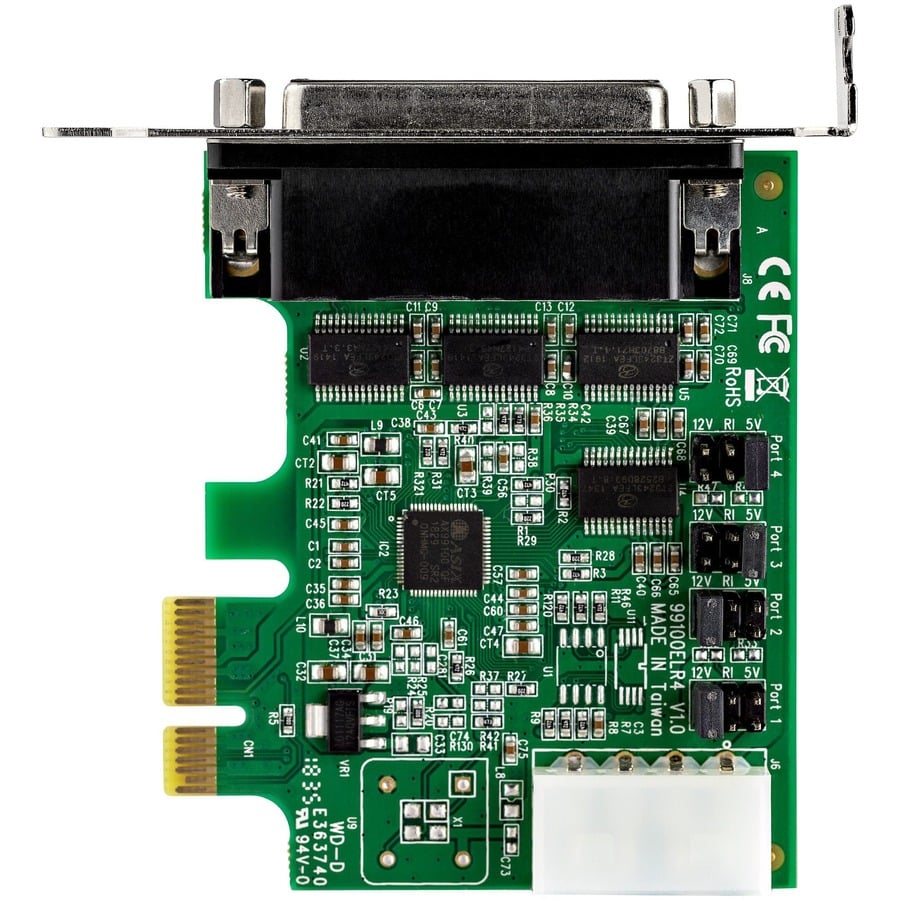

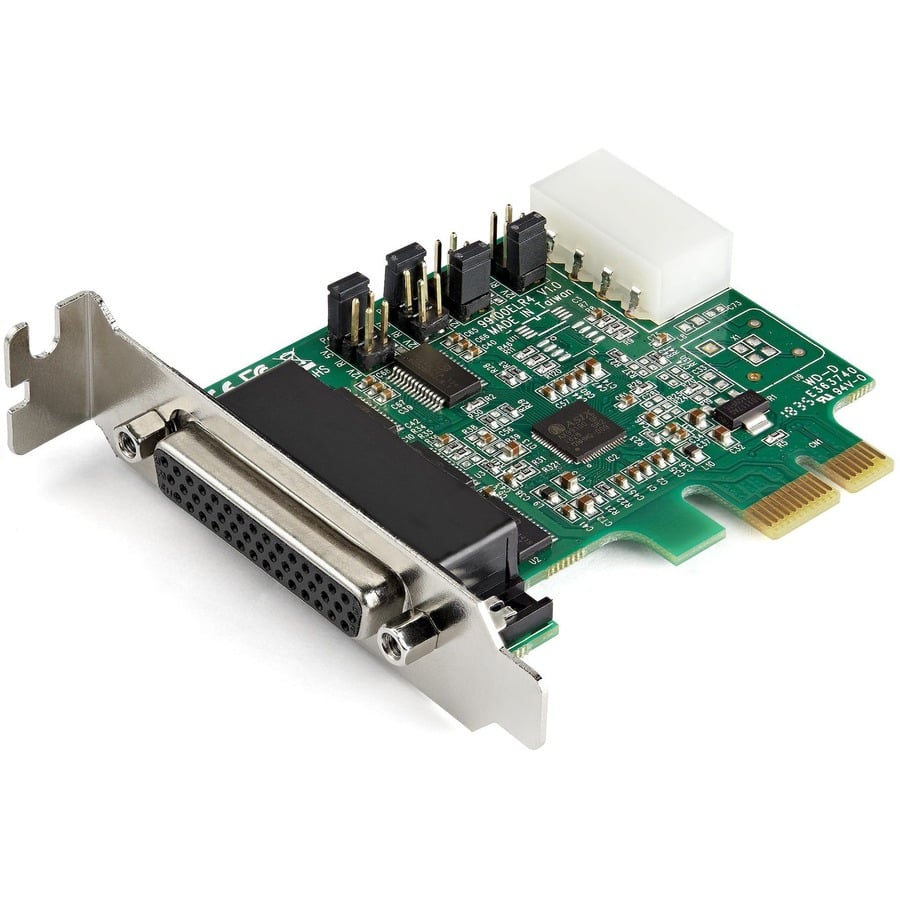

StarTech  -  Computer Components, StarTech, 4-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Serial DB9, 16950 UART, Low Profile Expansion Card, Windows/Linux
  • 4 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 4x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer; Upgraded version of our popular card PEX4S952LP
  • OPTIONAL CONFIGURABLE POWER: PCIe multiport serial card provides 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 4 ports are individually configurable; DB44 to 4x DB9 breakout cable incl
  • STANDARD PROFILE & LOW PROFILE BRACKET: PCI Express RS232 serial adapter card has low profile bracket pre-installed & 1x standard bracket incl for versatile install; Supports Windows XP and up & Linux
  • VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCI-e RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support
Read More
Add to Quote
$102.58
Technical Information
Host Interface:
PCI Express 1.1 x1
Maximum Data Transfer Rate:
921.60 kbit/s
UART Type:
16950
Platform Supported:
  • PC
  • Linux
Interfaces/Ports
Ports Expandability:
4 x DB-9 RS-232 - Serial, Via Cable
Physical Characteristics
Form Factor:
Plug-in Card
Miscellaneous
Package Contents:
  • 4-Port PCI Express RS232 Serial Adapter Card - 16950 UART - Low Profile
  • 1 x 4-Port DB9 Break-out Cable
  • 1 x Full Profile Bracket
  • 1 x Quick-Start Guide
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
  • WEEE
Country of Origin:
Taiwan
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0065030887052
UPC: 065030887052
EAN: 0065030887052
UNSPSC: 43201407
