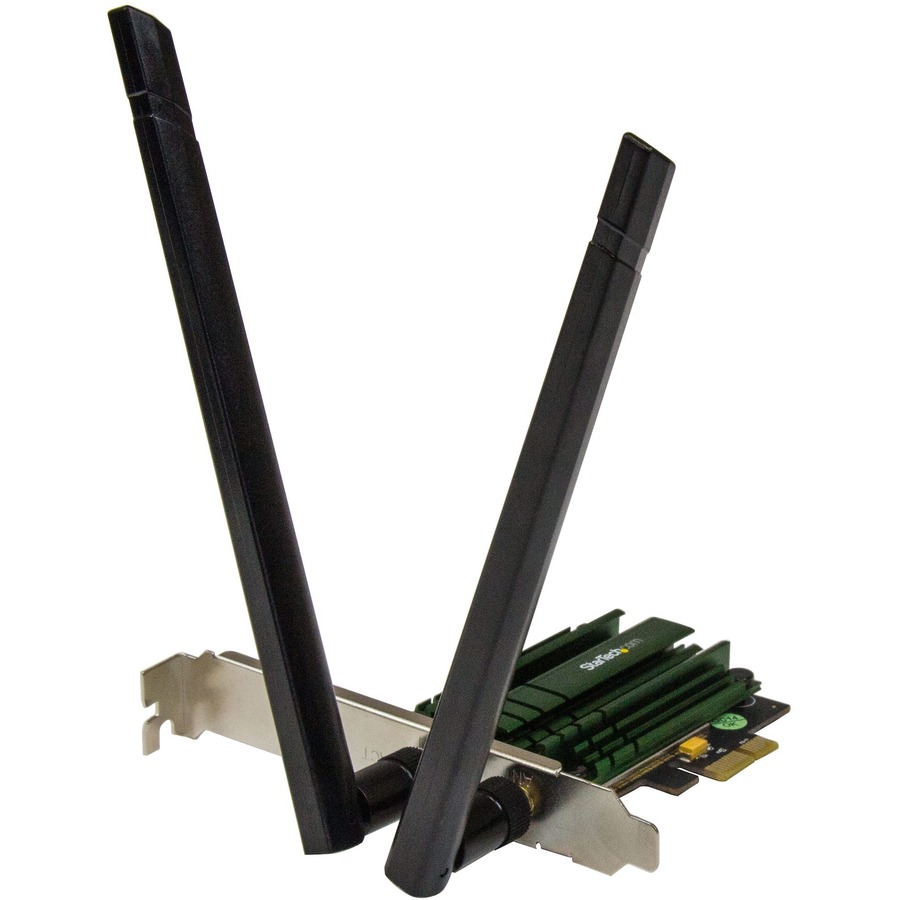

StarTech PEX867WAC22 Accessory

StarTech - Cable, StarTech, PCI Express AC1200 Dual Band Wireless-AC Network Adapter, PCIe 802.11ac WiFi Card

Wireless AC1200 compatible (867 Mbps + 300 Mbps)
Compliant with 802.11 a/b/g/n/ac standards
Dual band 2.4 / 5 GHz support (802.11ac is 5 GHz only)
PCI Express host interface
2 Transmitter/2 Receiver (2x2:2) antenna configuration
Included magnetic antenna stand for side-mounting on your PC case
Supports WEP (64-128-bit), WPA and WPA2 wireless security
Supports WMM Quality of Service
Supports Soft AP mode
Configured with standard profile bracket, low profile/half-height bracket included

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount

Add to Quote

$121.40

In Stock

Detailed Specs

Technical Information

Wi-Fi Generation:

Wi-Fi 5

Wireless LAN Standard:

IEEE 802.11ac

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.40 GHz

ISM Maximum Frequency:

2.48 GHz

UNII Minimum Frequency:

5.18 GHz

UNII Maximum Frequency:

5.85 GHz

Number of Antennas:

Antenna Gain:

5 dBi

Antenna Connector:

RP-SMA Connector

Wireless Transmission Speed:

1.17 Gbit/s

Wireless Security:

WEP (64/128-bit)
WPA
WPA2
TKIP
AES

Features:

Quality of Service (QoS)
LED Indicator

Interfaces/Ports

Host Interface:

PCI Express x1

Physical Characteristics

Form Factor:

Internal

Height:

4.7"

Width:

0.7"

Length:

3.4"

Weight (Approximate):

2.90 oz

Miscellaneous

Package Contents:

PCI Express Wireless AC Card
2 x 5 dBi Dual Band Antennas
1 x Antenna Stand
1 x Low Profile Bracket
1 x Driver CD
1 x Instruction Manual

System Requirements:

Windows® XP, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019

Device Supported:

Desktop Computer

Certifications & Standards:

IEEE Standards:

802.11ac
802.11a
802.11b
802.11g
802.11n

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE
REACH

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0065030857512, 0818274033286, 0818275713507, 0995478968078, 4973163102392, 4973163109001

UPC: 065030857512, 818274033286, 818275713507, 995478968078

EAN: 0065030857512, 0818274033286, 0818275713507, 0995478968078, 4973163102392, 4973163109001

UNSPSC: 43201409
