StarTech PEX8M2E2 Accessory

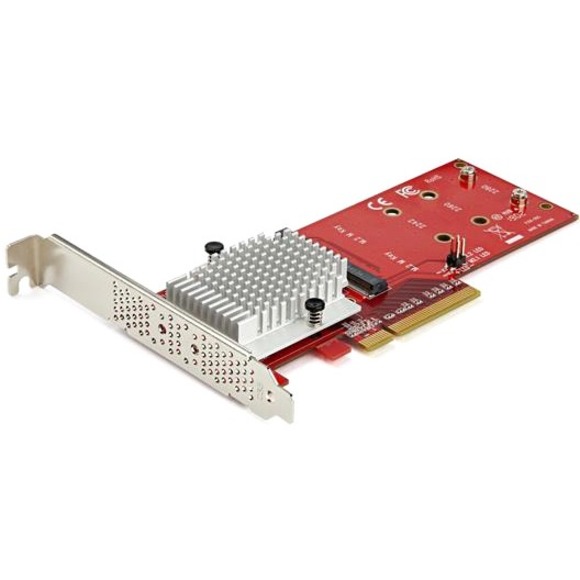

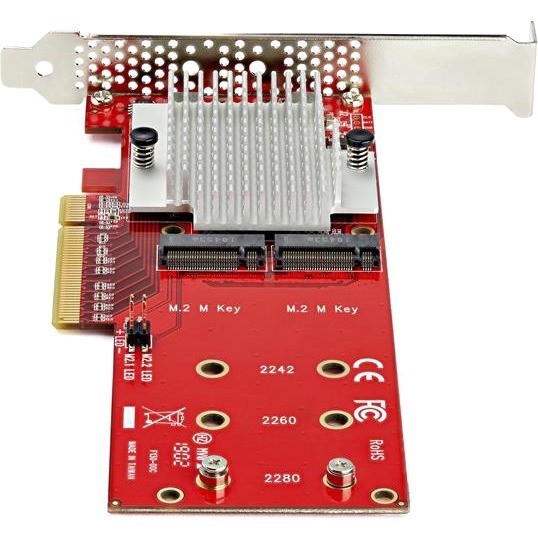

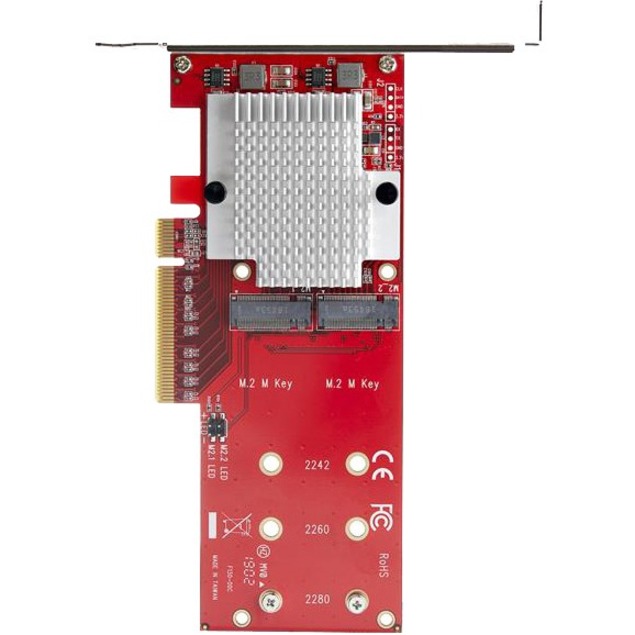

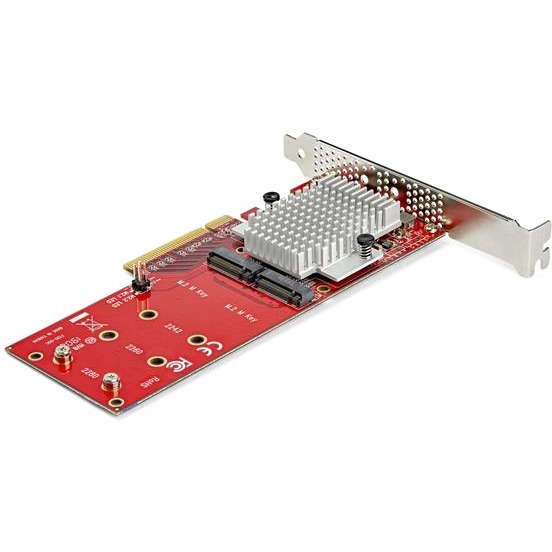

StarTech  -  Computer Components, StarTech, Dual M.2 PCIe SSD Adapter Card, x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0, M.2 NGFF PCIe (M-Key) Compatible, Supports 2242, 2260, 2280, JBOD, Mac And PC
  • HIGH PERFORMANCE: Install 2 PCIe 3.0 M.2 SSDs (NVMe or AHCI) into your workstation or server for read/write speeds up to 3GB/s and 2.8GB/s for single-drives or 2.4GB/s and 1.42GB/s (per drive) for 2
  • WIDE COMPATIBILITY: Dual M.2 PCIe SSD adapter card was extensively tested to ensure compatibility w/ Samsung 970 evo, 950 Pro, SM951, & other 2242, 2260, 2280mm PCIe M-Key M.2 NGFF SSDs (NVMe or AHCI)
  • BACKWARD COMPATIBILITY: Compatible w/ PCIe 1.0 & 2.0 and x8 or x16 slots, PCIe bifurcation is not required. Works with all workstation and server OS's such as Windows, Linux, and macOS incl. legacy.
  • RAID FUNCTIONALITY: M.2 PCI Express adapter lets you use SSDs individually or in a storage pool using OS or 3rd party RAID software (RAID 0, 1, SPAN, JBOD) for tiered/hybrid storage
  • VENTED DUAL-PROFILE BRACKETS: Pre-installed full profile bracket with low-profile (half-height) bracket in box & vented design for better cooling, avoiding drive throttling and improving reliability.
Read More
Add to Quote
$164.53
In Stock
Physical Characteristics
Product Color:
Red
Shipping Height:
1.77"
Shipping Width:
8.46"
Shipping Depth:
6.10"
Shipping Weight (Approximate):
6.88 oz
Miscellaneous
Package Contents:
  • x8 Dual M.2 PCIe SSD Adapter - PCIe 3.0
  • 1 x Low-Profile Bracket
  • 1 x Full-Profile Bracket (Pre-installed)
  • 2 x SSD Standoff and Installation Screws
  • 1 x Quick-Start Guide
Additional Information:

Hardware:

Bus Type: PCI Express

Chipset ID: ASMedia - ASM2824

Compatible Drive Types:

  • M.2 (PCIe, AHCI, M-Key, NGFF)
  • M.2 (PCIe, NVMe, NGFF)

Drive Installation: Fixed

Drive Size: 22m - M.2 NGFF

Interface: PCI Express x8

Number of Drives: 2

Supported Drive Height(s):

  • 2242
  • 2260
  • 2280

Connector(s):

Drive Connectors: 2 - M.2 (PCIe, AHCI/NVMe, NGFF)

Host Connectors: 1 - PCI Express x8 Male

Other Interface(s): 2 - IDC (2 pin, Motherboard Header)

Certifications & Standards:
  • CE
  • FCC
Environmentally Friendly:
Yes
Environmental Certification:
  • REACH
  • RoHS
  • WEEE
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0065030886390, 0995476960692, 0995477636985
UPC: 065030886390, 995476960692, 995477636985
EAN: 0065030886390, 0995476960692, 0995477636985
UNSPSC: 43201407
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The StarTech PEX8M2E2 Accessory is also known as PEX8M2E2
