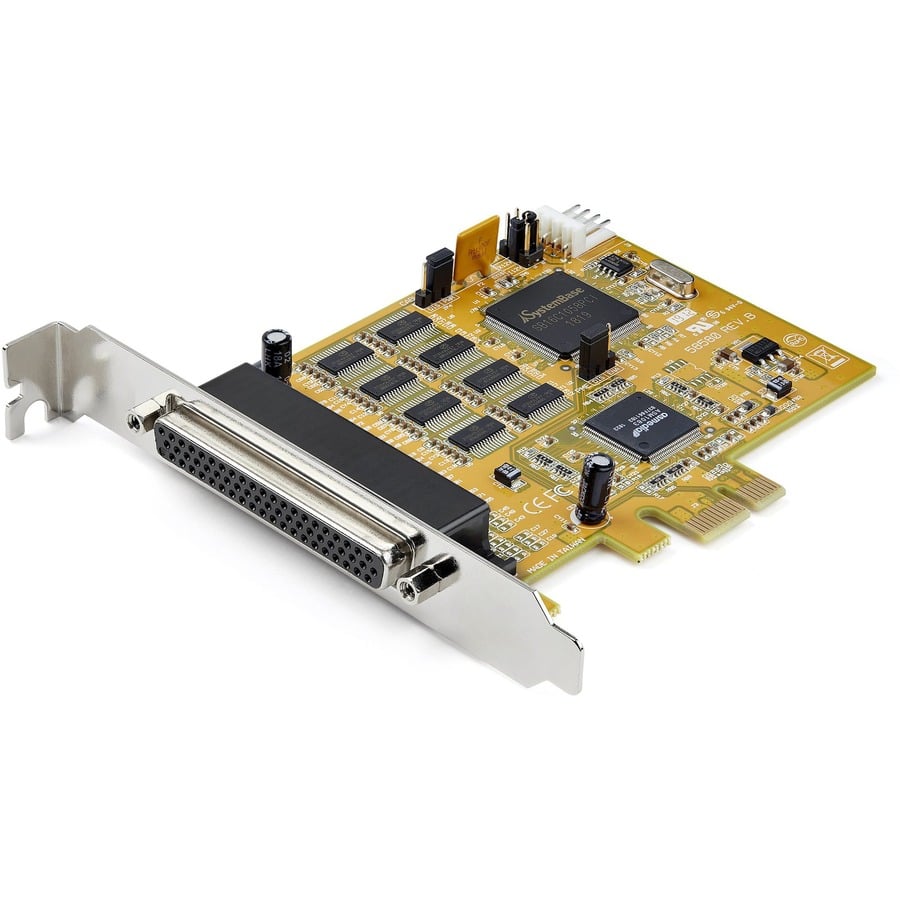

StarTech PEX8S1050 Accessory

StarTech  -  Cable, StarTech, 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows And Linux
  • 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer; Upgraded version of our popular card PEX8S952
  • OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 18"/48cm DB62 to 8x DB9 breakout cable incl; Hex nuts incl for opt screw/nut DB9 interface
  • COMPATABILITY: Full profile PCI-e 1x card and fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Linux; For standard profile desktop/servers
  • VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCIe RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support
Read More
Add to Quote
$272.94
In Stock
Technical Information
Host Interface:
PCI Express 1.0a x1
Maximum Data Transfer Rate:
921.40 kbit/s
UART Type:
16C1050
Platform Supported:
  • Linux
  • PC
Interfaces/Ports
Number of Serial Ports:
1
Ports Expandability:
8 x DB-9 RS-232 - Serial, Via Cable
Physical Characteristics
Product Color:
Yellow
Form Factor:
Plug-in Card
Height:
4.7"
Width:
0.6"
Weight (Approximate):
2.60 oz
Miscellaneous
Package Contents:
  • PCIe Serial Card
  • 1 x DB62 to 8 Port DB9
  • Breakout Cable
  • 1 x Quick Start Guide
  • 8 x Optional DB9 Connector Hex Nut Pairs
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0065030888295
UPC: 065030888295
EAN: 0065030888295
UNSPSC: 43201407
