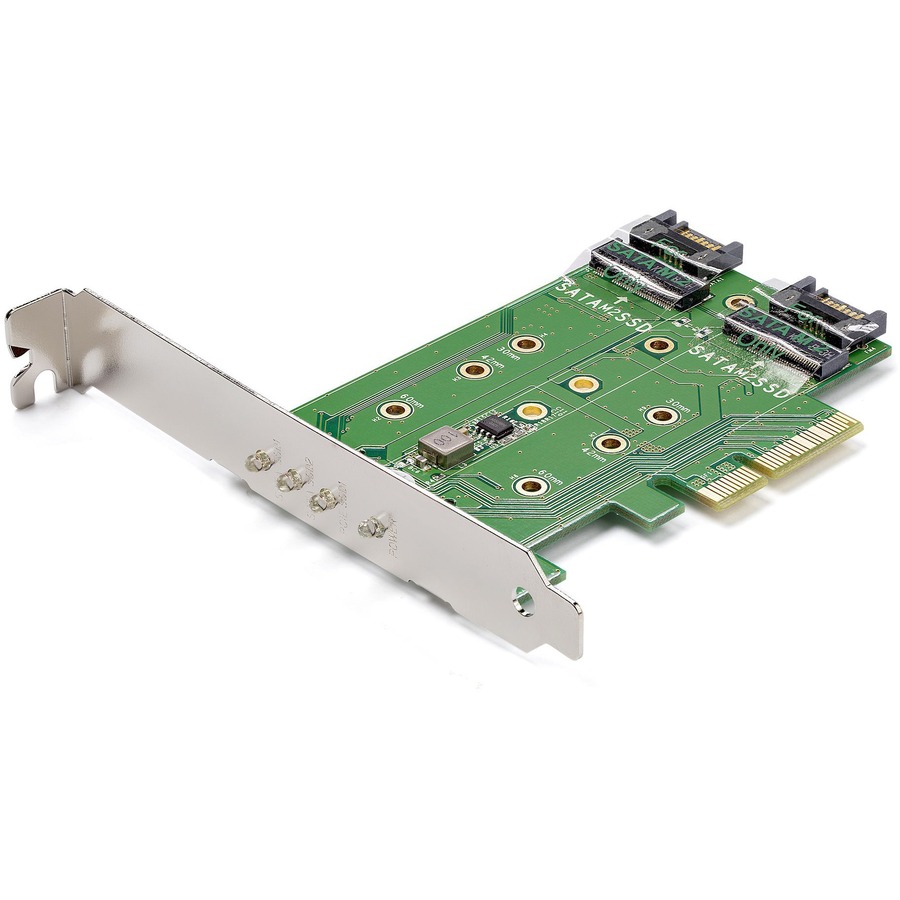

StarTech PEXM2SAT32N1 Accessory

StarTech  -  Computer Components, StarTech, 3-Port M.2 SSD (NGFF) Adapter Card, 1 x PCIe (NVMe) M.2, 2 x SATA III M.2, PCIe 3.0
  • Expand the storage and improve the performance of your computer, with slots for two M.2 SATA SSDs and one M.2 PCIe SSD
  • Supports PCI Express 3.0 (x4), ideal for a high-performance M.2 PCIe SSD (NVMe)
  • SATA slots feature a passthrough design, so your drives can connect to the SATA ports on your host PC
  • Full bandwidth is available for each M.2 drive simultaneously (up to approximately 40Gbps for M.2 PCIe drives, and up to 6Gbps for M.2 SATA III drives)
  • Wide installation compatibility, with support for a range of M.2 drives (2280, 2260, 2242, 2230)
  • Adjustable stand-offs and multiple mounting holes support 80 mm, 60 mm, 42 mm, and 30 mm SSDs
  • OS independent with no drivers required, for a fast, hassle-free setup
  • Equipped with a full-profile bracket, includes a low-profile (half-height bracket) for installation in small form-factor computers
  • Installs into x4, x8, or x16 PCIe slots
Read More
Add to Quote
$37.58
In Stock
Physical Characteristics
Product Color:
Black
Product Material:
Steel
Height:
4.7"
Width:
0.8"
Length:
4.7"
Weight (Approximate):
2.30 oz
Miscellaneous
Package Contents:
  • 3-port M.2 NGFF SSD Adapter Card
  • 1 x Low-Profile Bracket
  • 3 x M.2 Mounting Screws
  • 3 x M.2 Mounting Standoffs
  • 3 x M.2 Mounting Nuts
  • 1 X Screw Driver
  • 1 X Quick Start Guide
Additional Information:
  • Bus Type PCI Express
  • Card Type Standard Profile (LP bracket incl.)
  • Industry Standards Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
  • PCI Express 3.0
  • Interface M.2 SATA (NGFF)
  • SATA
  • M.2 PCIe (NVMe)
  • Port Style Integrated on Card
  • Ports 3
  • ATAPI Support Yes
  • Bootable Yes
  • MTBF 50,000 Hours
  • Port Multiplier No
  • RAID No
  • Type and Rate SATA III (6 Gbps)
  • Connector Type(s) 1 - PCI Express x4 Male
  • Internal Ports:
  • 3 - M.2 (NGFF; B-Key) Receptacle
  • 2 - SATA (7 pin; Data) Plug
  • Humidity 20%~80% RH (Non-condensing)
  • Operating Temperature 5°C to 50°C (41°F to 122°F)
  • Storage Temperature -25°C to 70°C (-13°F to 158°F)
Certifications & Standards:
  • CE
  • FCC
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
  • REACH
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0065030865708
UPC: 065030865708
EAN: 0065030865708
UNSPSC: 43201407
