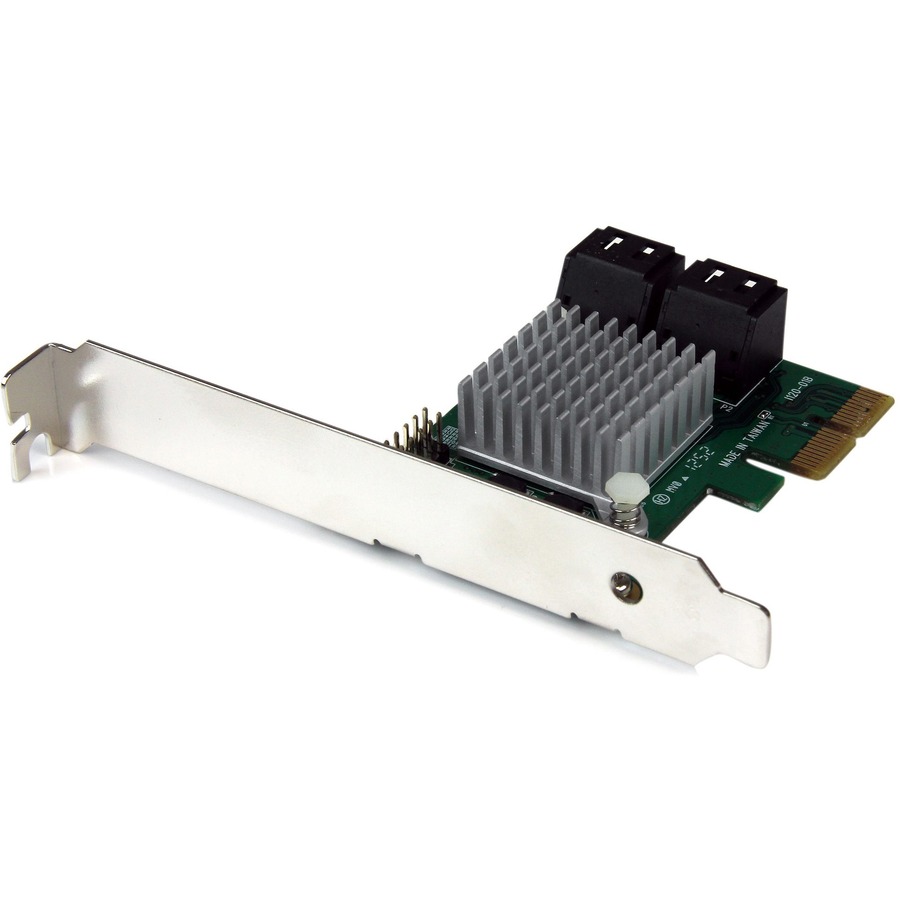

StarTech PEXSAT34RH Accessory

StarTech  -  Computer Components, StarTech, 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering
  • Supports HyperDuo SSD auto-tiering
  • 4 AHCI SATA III (6Gbps) ports through PCI Express x2
  • Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps) drives
  • Supports hardware RAID 0, 1, and 1+0 modes configured through BIOS
  • Compliant with PCI Express 2.0 standards
  • Port Multiplier FIS-based and Command-based switching supported
  • Natively supported single chipset design
  • Simple HyperDuo configuration via card-BIOS level or intuitive GUI console (Windows? only)
  • Supports Native Command Queuing (NCQ) and ATA/ATAPI commands
  • Includes Low Profile/Half-Height installation bracket
Read More

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$118.18
In Stock
StarTech PEXSAT34RH Accessory
StarTech PEXSAT34RH Accessory
StarTech PEXSAT34RH Accessory StarTech PEXSAT34RH Accessory
Technical Information
Host Interface:
PCI Express 2.0 x2
Controller Type:
Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • JBOD
  • 1
  • 0
  • 1+0
Maximum Data Transfer Rate:
6
Interfaces/Ports
Total Number of SATA Ports:
4
Number of SATA Ports (Internal):
4
Physical Characteristics
Height:
0.8"
Width:
4.7"
Length:
2.8"
Form Factor:
Plug-in Card
Card Height:
Low-profile
Weight (Approximate):
1.70 oz
Miscellaneous
Package Contents:
  • 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink
  • 1 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual
Platform Supported:
  • PC
  • Mac
  • Linux
Additional Information:
OS Compatibility:
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
  • Windows Server® 2012, 2008 R2, 2003
  • Mac OS® 10.6 and later (tested up to 10.10)
  • Linux
    • Compatibility:

    OS Compatibility:

    • Windows® 10 (32/64), XP (32/64)
    • Windows Server® 2012, 2003
    • Mac OS® 10.6 and later (tested up to 10.10)
    • Linux
    Environmentally Friendly:
    Yes
    Environmental Certification:
    • RoHS
    • REACH
    • WEEE
    Country of Origin:
    Taiwan
    TAA Compliant:
    Yes
    Warranty
    Limited Warranty:
    2 Year
    Item Numbers
    GTIN: 0065030849951
    UPC: 065030849951
    EAN: 0065030849951
    UNSPSC: 43201556
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The StarTech PEXSAT34RH Accessory is also known as PEXSAT34RH
