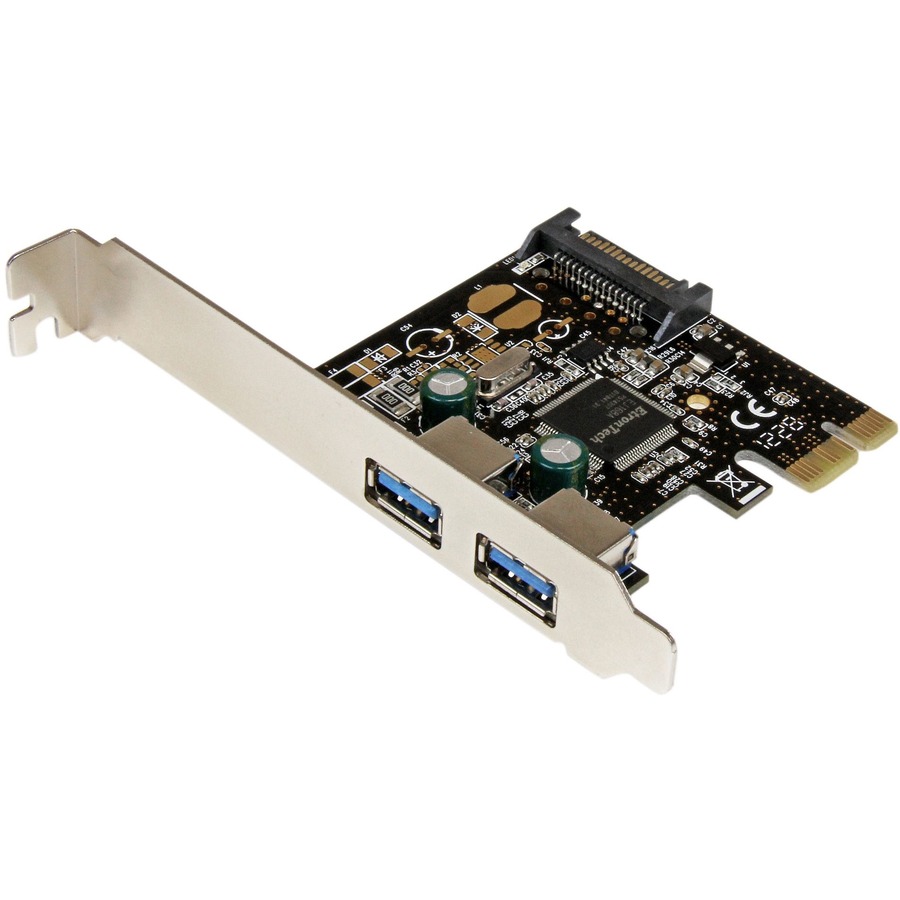

StarTech PEXUSB3S23 Accessory

StarTech - Computer Components, StarTech, 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card With SATA Power

Provides two external USB 3.0 connections
Supports data rates up to 5 Gbps
SATA power connector (required) provides up to 900mA per USB port
Compliant with PCI Express 2.0 specifications
Fully compliant with USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications
Backward compatible with USB 2.0 and USB 1.0/1.1 devices
Includes a Low Profile/half-height installation bracket

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount

Add to Quote

$20.78

In Stock

Detailed Specs

Technical Information

Host Interface:

PCI Express x1

Interfaces/Ports

Total Number of USB Ports:

Number of USB 3.0 Ports:

Number of SATA Ports:

Physical Characteristics

Form Factor:

Plug-in Card

Height:

4.7"

Width:

0.8"

Length:

3.1"

Weight (Approximate):

1.52 oz

Miscellaneous

Package Contents:

2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power
1 x Low Profile Bracket
1 x Driver CD
1 x Instruction Manual

Additional Information:

Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)

Windows Server® 2012, 2008 R2, 2003

Platform Supported:

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
REACH
WEEE

Country of Origin:

China

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0065030851633

UPC: 065030851633

EAN: 0065030851633

UNSPSC: 43211609
