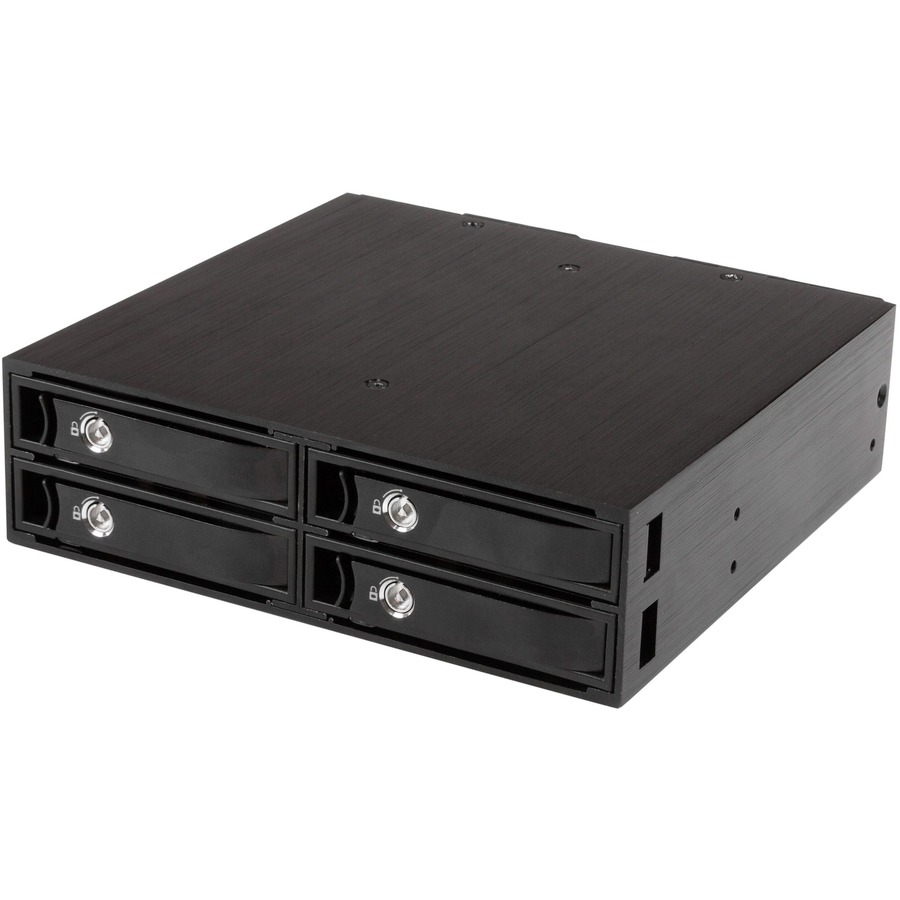

StarTech SATSASBP425 Accessory

StarTech - Computer Components, StarTech, 4-Bay Mobile Rack Backplane for 2.5" SATA/SAS Drives

Build your storage system by adding four 2.5in SAS or SATA drives into one 5.25in bay
Supports a wide range of SSDs and HDDs from 5-15mm
Easy, error free insertion of tray with vertically or horizontally mounted backplane
Lockable, removable trays provide drive protection
NSS connector provides 50,000+ insertion rating for long-lasting performance
Interchangeable drive trays also work with the 1-bay backplane (SATSASBP125)
High-quality metal housing provides enhanced heat dissipation
Two 40mm fans to optimize ventilation
Flammability rating of UL 94 V-O
Support for SAS II and SATA I, II and III with file transfer speeds of up to 6Gbps

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount

Add to Quote

$108.90

In Stock

Detailed Specs

Technical Information

Number of Hard Drives Supported:

Number of Solid State Drive Supported:

I/O Expansions

Number of Total Expansion Bays:

Number of 2.5" Bays:

Network & Communication

Wireless LAN:

Interfaces/Ports

Drive Interface:

SATA/600
Serial Attached SCSI (SAS)

Host Interface:

Serial ATA/600

Physical Characteristics

Product Color:

Black

Product Material:

Aluminum
Steel

Cooling Fan:

Yes

Form Factor:

Internal

Compatible Drive Bay Width:

5.25"

Height:

1.7"

Width:

5.7"

Depth:

Weight (Approximate):

1.67 lb

Miscellaneous

Package Contents:

4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives
2 x Drive Tray Keys
4 x 2.5" Drive Trays
4 x 18" SATA Data Cables
2 x SATA to Molex Power Adapters
16 x Drive Mounting Screws
8 x Backplane Mounting Screws
1 x Quick Start Guide

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE
REACH

Country of Origin:

Taiwan

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0065030859837

UPC: 065030859837

EAN: 0065030859837

UNSPSC: 43202206
