StarTech ST1000SMPEX Accessory

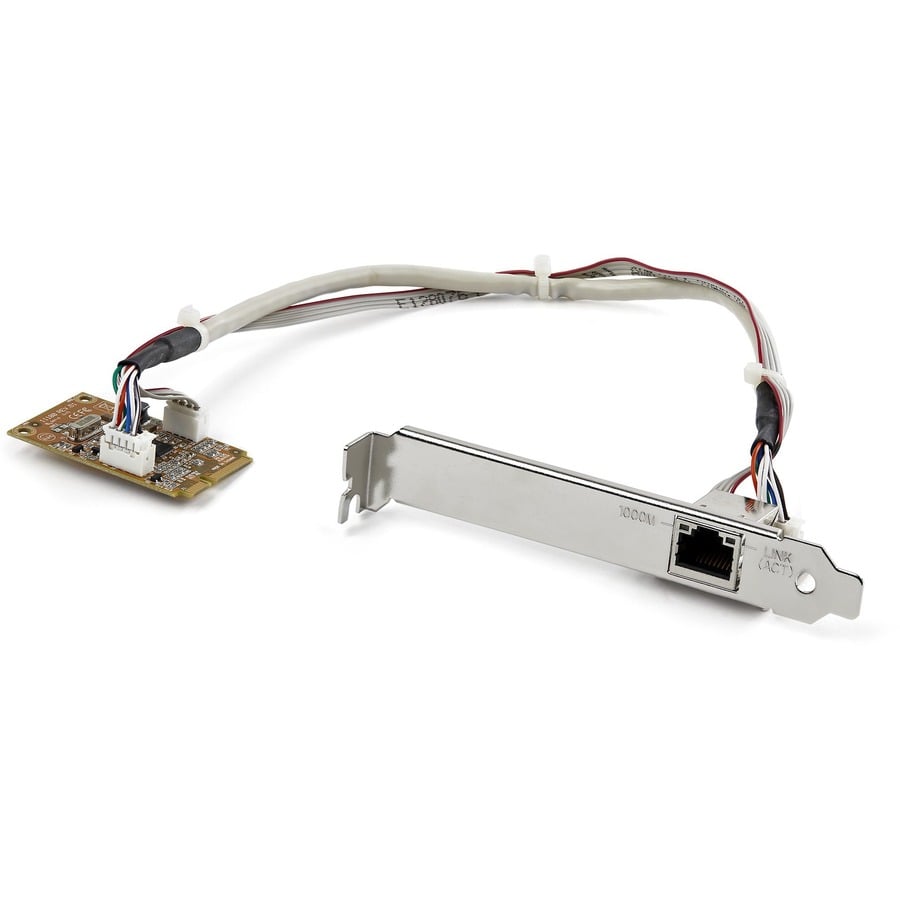

StarTech - Cable, StarTech, Mini PCI Express Gigabit Ethernet Network Adapter NIC Card

One 10/100/1000Mbps compatible RJ-45 Ethernet port
Fully complaint with IEEE 802.3, 802.3u, and 802.3ab specifications for 10/100/1000 Mbps connections
Jumbo Frame support up to 9k
Crossover Detection & Auto-Correction (Auto MDIX)
IEEE 802.1Q VLAN Tagging support
Supports Wake-on-LAN (WOL) and Remote Wake-up Support, Pair Swap/Polarity/Skew Correction
Microsoft? NDIS5 Checksum Offload (IPv4, TCP, UDP) and Large Send Offload support
Supports Full and Half duplex operating modes
IEEE 802.3x Full Duplex Flow Control support
Compliant with PCI Express Mini Card specification 1.1

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount

Add to Quote

$71.86

In Stock

Detailed Specs

Technical Information

Chipset Manufacturer:

Realtek

Chipset Model:

RTL8111E

Interfaces/Ports

Host Interface:

Mini PCI Express

Total Number of Ports:

Network (RJ-45):

Yes

Number of Network (RJ-45) Ports:

Media & Performance

Media Type Supported:

Twisted Pair

Network & Communication

Network Technology:

10/100/1000Base-T

Physical Characteristics

Card Height:

Low-profile

Form Factor:

Plug-in Card

Height:

1.3"

Width:

5.7"

Depth:

Thickness:

160 mil

Weight (Approximate):

0.20 oz

Miscellaneous

Package Contents:

Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
1 x RJ45 Daughter Board
1 x Low Profile Bracket
1 x Driver CD
Internal LED Cable
Internal Data Cable
1 x Instruction Manual

Additional Information:

Full length mini PCI Express (PCI Express Mini Card, Mini PCIe) form factor fits in many Mini-ITX or embedded systems
Built-in NDIS5 Checksum and Large Send Offload support and Jumbo Frames minimize system resource usage
Backed by a StarTech.com 2-year warranty and free lifetime technical support

System Requirements:

Windows® 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Mac OS® 10.4.x and 10.5.x
Linux 2.4.x to 4.11.x LTS Versions Only

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Country of Origin:

Taiwan

Item Numbers

GTIN: 0065030846554

UPC: 065030846554

EAN: 0065030846554

UNSPSC: 43201404
