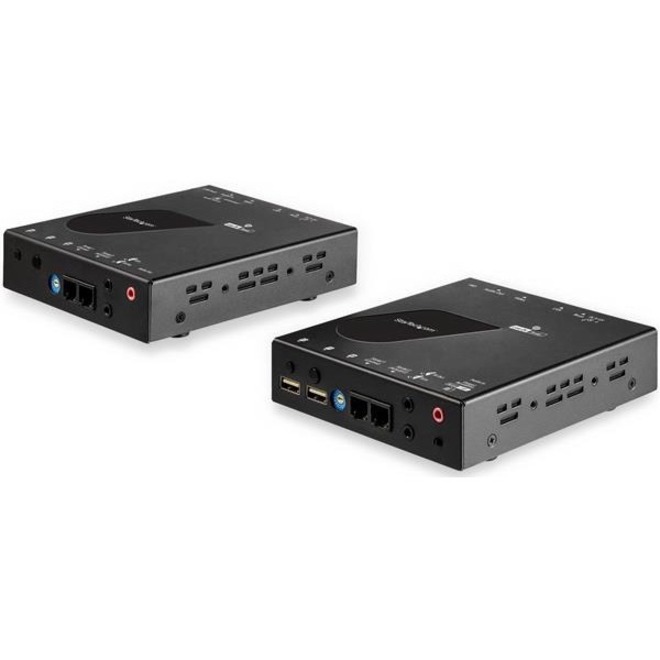

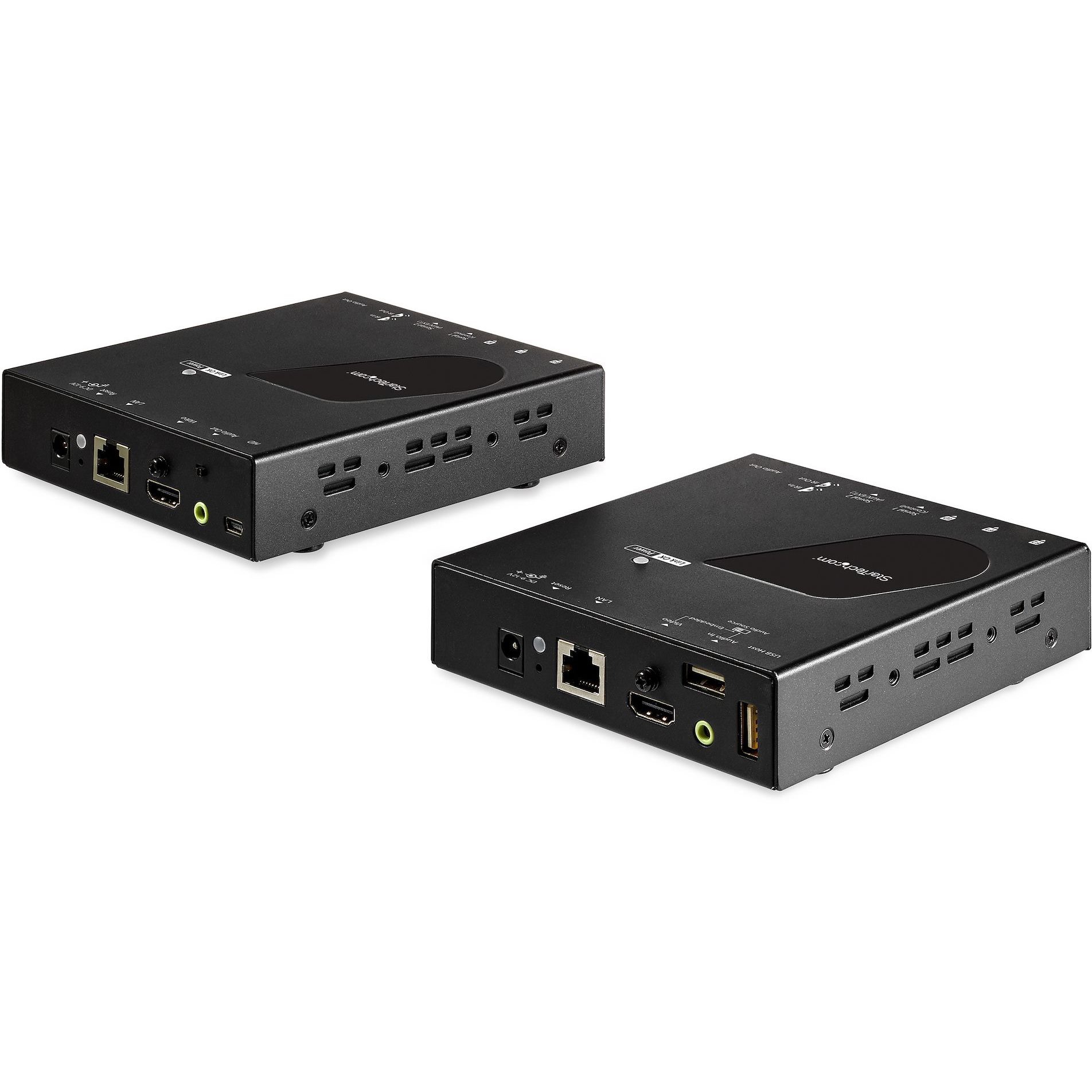

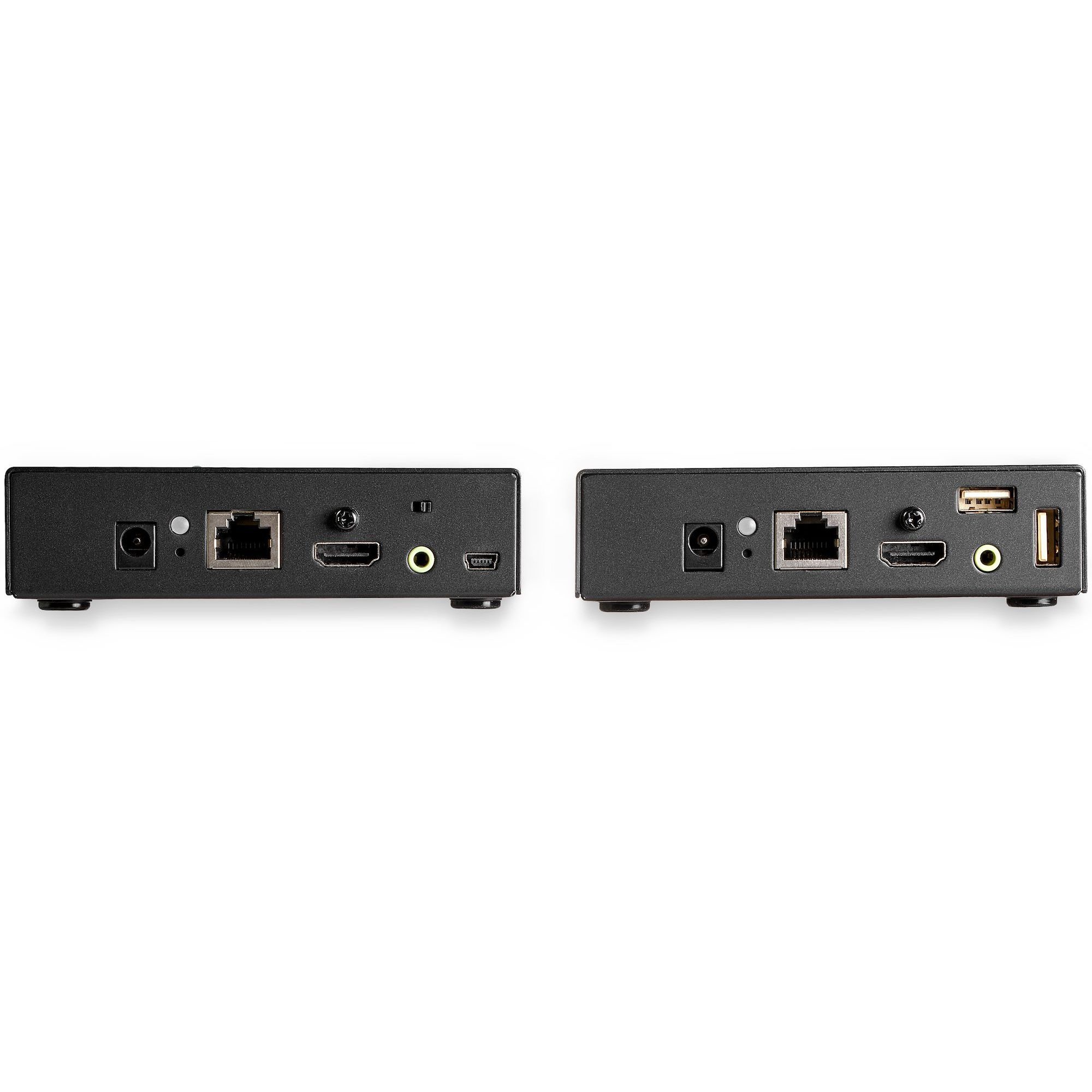

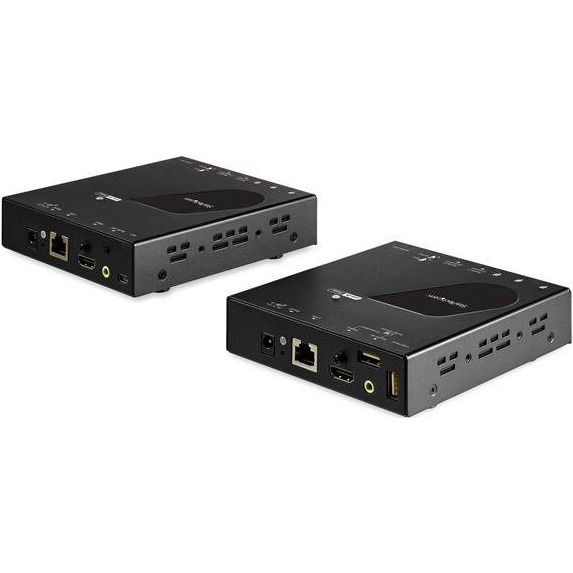

StarTech SV565HDIP Accessory

StarTech - Cable, StarTech, HDMI KVM Extender over IP Network, 4K 30Hz HDMI 2.0 and USB over IP LAN or CAT5e/Cat6 Ethernet Cable (100m/330''), Remote KVM Switch/Console Transmitter/Receiver Extender Kit

REMOTE ACCESS: HDMI KVM extender over IP controls a KVM Switch/Console or PC from up to 328ft (100 m) away over Cat5e/6 Ethernet cable or over IP-enabled local area network (LAN) for unlimited range
4K VIDEO QUALITY: HDMI transmitter & extender kit achieves ultra HD resolutions up to 3840 x 2160 4K at 30Hz supports large video signage display at remote locations; Mounting hardware incl.
HDMI | 4K 30Hz 3840 x 2160 | USB 2.0 HID | OS Independent | 2 x 3.5mm Analog Audio + Mic | Digital 7.1 Surround Audio | EDID Passthrough | IP Routable/Switchable | 100m Max Direct Connection | 2yr War
ADVANCED AUDIO & VIDEO: EDID passthrough transfers display capabilities to the video source, maximizing compatibility between devices; Digital 7.1 surround audio over HDMI offers theatre-grade sound
VIDEO WALL SUPPORT: Connect receivers (sold separately) to distribute HDMI signal to multiple displays at remote location or combine source to create a 9x9 video wall; Configure using an intuitive GUI

Read More

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount

$923.68

In Stock

StarTech SV565HDIP Accessory

StarTech SV565HDIP Accessory

StarTech SV565HDIP Accessory

StarTech SV565HDIP Accessory

Technical Information

Connectivity Technology:

Wired

Number of Computers Supported:

1

Number of Remote Users Supported:

1

Maximum Operating Distance:

330 ft

Video

Graphic Mode:

4K

Maximum Video Resolution:

3840 x 2160

Interfaces/Ports

Network (RJ-45):

Yes

USB:

Yes

HDMI:

Yes

Number of HDMI Ports:

2

Number of Network (RJ-45) Ports:

2

Number of USB Ports:

5

Power Description

Input Voltage:

120 V AC
240 V AC

Input Voltage Range:

100V AC to 240V AC

Power Consumption:

18 W

Physical Characteristics

Product Color:

Black

Form Factor:

Desktop

Transmitter Height:

1.10"

Transmitter Width:

4.60"

Transmitter Depth:

5.10"

Receiver Height:

1.10"

Receiver Width:

4.60"

Receiver Depth:

5.10"

Transmitter Weight (Approximate):

1.34 lb

Receiver Weight (Approximate):

1.34 lb

Miscellaneous

Package Contents:

1 x Transmitter Unit
1 x Receiver Unit
2 x Universal Power Adapters (NA, JP, EU, UK, AU/NZ)
2 x Mounting Kits
2 x Ethernet Cables
2 x DB9 Serial Adapters
2 x RJ11 Serial Cables
1 x HDMI Cable (1.2 m)
1 x USB Cable (1.5 m)
8 x Rubber Feet
1 x Plastic Screwdriver
1 x Quick-Start Guide

Environmentally Friendly:

Yes

Environmental Certification:

REACH
RoHS
WEEE

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0065030877947, 0818275376184

UPC: 065030877947, 818275376184

EAN: 0065030877947, 0818275376184

UNSPSC: 43211603

Get help from a Barcoding Expert!

The StarTech SV565HDIP Accessory is also known as SV565HDIP
