StarTech - Computer Components, StarTech, Long Range USB VGA KVM Console Extender over CAT5 UTP, 1000 ft

High resolution support: Up to 1920x1200(WUXGA)/ 1600x1200(UXGA)

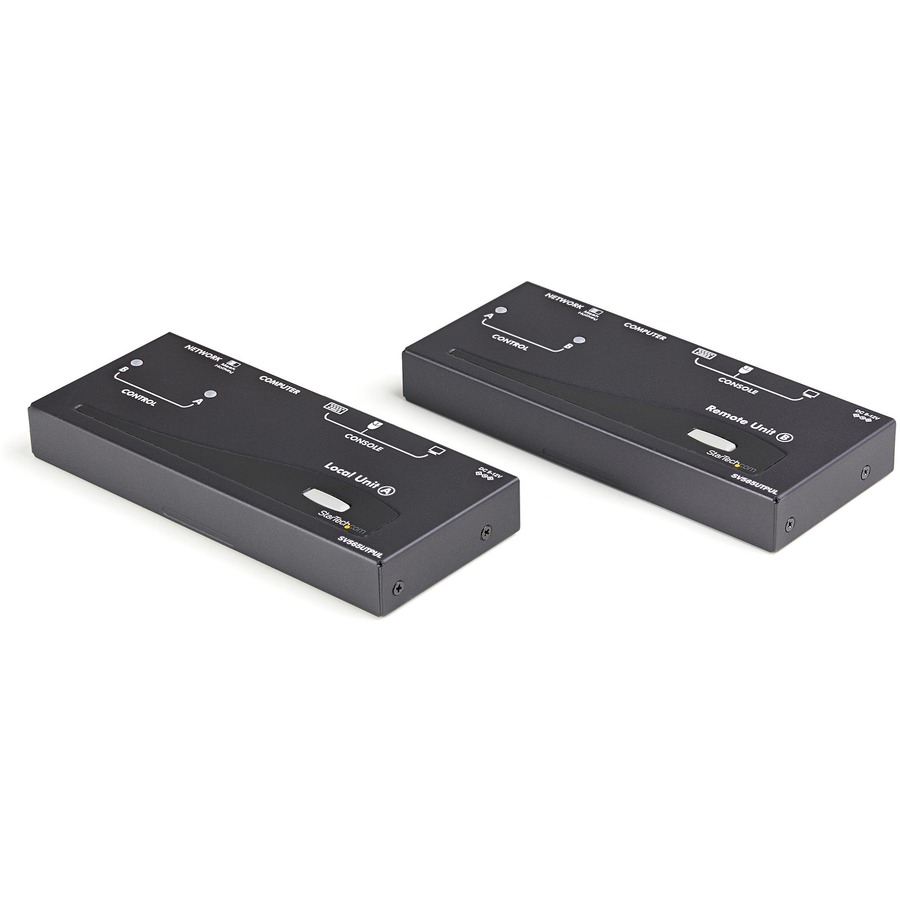

Kit includes both local and remote units
Compatibility mode enables hotkey commands to be passed to connected StarView KVMs
USB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console)
Max Resolution Limit feature caps the resolution to prevent the resolution setting from exceeding the capability of the connected display
Supports auto-switching between host and remote users or dedicated control
Compatible with CAT 5, 5e, or 6 UTP cabling
Intuitive hotkey commands
Hotkey controlled Equalizer(sharpness), Gain(brightness), and RGB Skew adjustments
Supports most combo keyboard and mouse sets (including Wireless)

Need a different version? See all StarTech Parts Accessories

Chat Now for Qty Discount

Add to Quote

$357.20

In Stock

Detailed Specs

Technical Information

Connectivity Technology:

Wired

KVM Technology:

Analog

Number of Computers Supported:

Number of Local Users Supported:

Number of Remote Users Supported:

Maximum Operating Distance:

984.25 ft

Video

Graphic Mode:

WUXGA

Maximum Video Resolution:

1920 x 1200

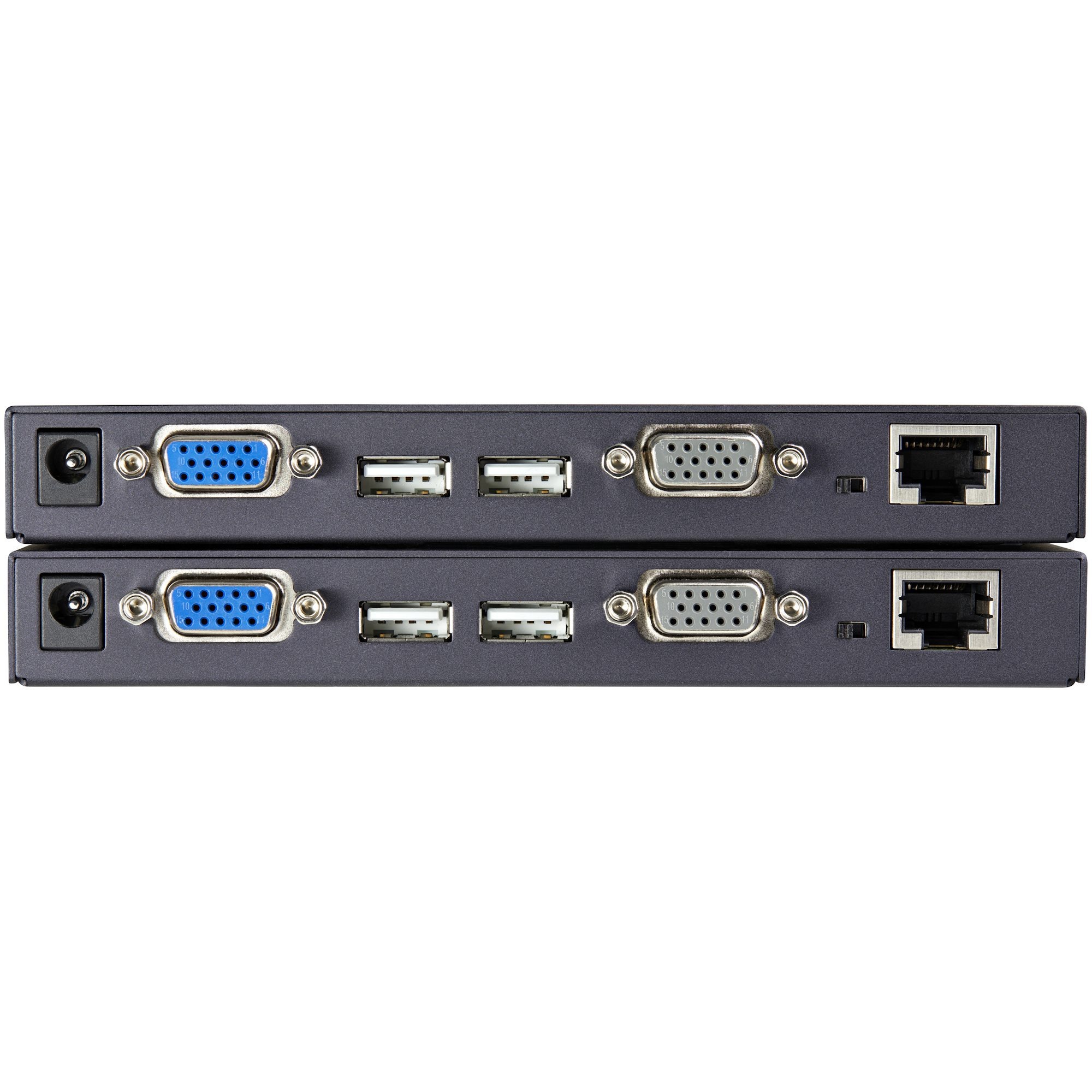

Interfaces/Ports

Network (RJ-45):

Yes

USB:

Yes

VGA:

Yes

Number of VGA Ports:

Number of Network (RJ-45) Ports:

Number of USB Ports:

Power Description

Input Voltage:

120 V AC
240 V AC

Input Voltage Range:

110V AC to 240V AC

Power Consumption:

18 W

Physical Characteristics

Product Color:

Black

Form Factor:

Rack-mountable
Desktop

Transmitter Height:

0.80"

Transmitter Width:

6.20"

Transmitter Depth:

2.80"

Receiver Height:

0.80"

Receiver Width:

6.20"

Receiver Depth:

2.80"

Transmitter Weight (Approximate):

1.37 lb

Receiver Weight (Approximate):

1.37 lb

Miscellaneous

Package Contents:

2 x KVM Extenders (1x Local, 1x Remote)
2 x 2n1 USB VGA KVM Cables
1 x Rubber Feet
1 x Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
1 x User Manual

Certifications & Standards:

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE
REACH

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0065030839259

UPC: 065030839259

EAN: 0065030839259

UNSPSC: 43211603
