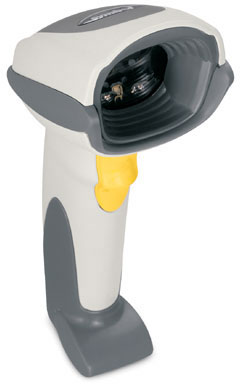

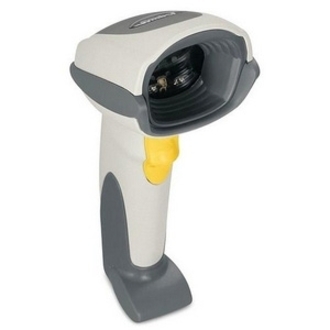

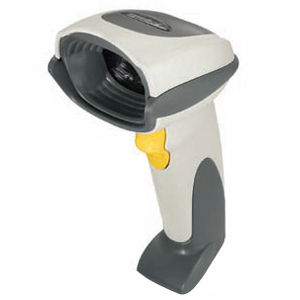

Symbol DS6707-HD20001ZZR Barcode Scanner

A newer version of this item is available.
It is replaced by the Zebra DS8108-HC4000BVZWW Barcode Scanner.

Symbol DS6707 - SCANNER ONLY, 2D Imager, High Density. Cables and accessories must be purchased separately. Color: White.

Scanner Capability

Scanner Type

Imager

Perfect for applications that require direct association with a workstation or a notebook
Incredible and responsive 2D scanning even on curved or translucent surfaces
Laser scan engine guarantees rapid error free data entry

Need a different version? See all Symbol DS6707 Barcode Scanners

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Symbol DS6707-HD20001ZZR Barcode Scanner

Overview

Full specifications (PDF)

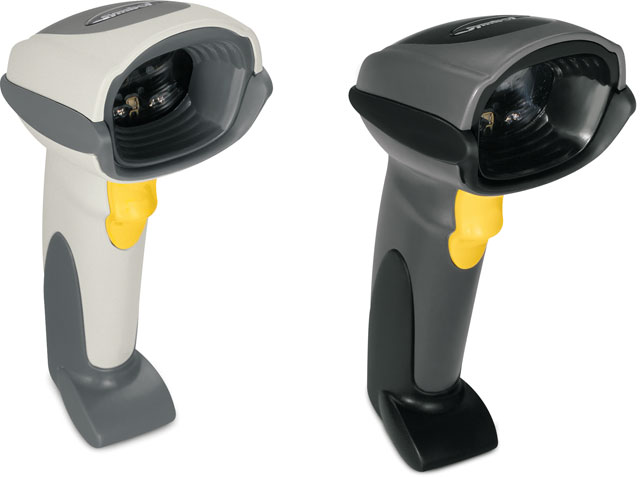

Symbol DS6707 Barcode Scanner Model Overview

The handheld DS6707 combines a 1D/2D barcode scanner with a 1.3 mega pixel digital camera and a high performance document capture scanner in a single cost-effective device, maximizing employee productivity and streamlining business processes in the retail store, post office, pharmacy or manufacturing floor. True point-and-shoot image capture with Symbol's text enhancement technology delivers superior document clarity, even on fine print. The DS6707 reduces capital and operating expenses by eliminating the need to purchase separate devices to capture images and read different barcode symbologies. Remote scanner management capability further reduces the total cost of ownership, while multiple interface options makes for easy installation anywhere.

Symbol DS6707-HD20001ZZR Barcode Scanner Overview

The flexible Symbol DS6707-HD provides electronics manufacturers with a single affordable device capable of reading virtually every type of bar code used in electronic component assembly. From high density and low contrast marks to 1D, 2D and PDF417 bar codes and images, this single device supports all the data capture functionality workers need on the line, bringing a new level of cost-efficiency and accuracy to electronics component assembly.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

1-D:

UPC/EAN and with supplementals
Code 39
Code 39 Full
ASCII
Tri-optic Code 39
RSS variants
UCC/EAN 128
Code 128
Code 128 Full ASCII
Code 93
Codabar (NW1)
Interleaved 2 of 5
Discrete 2 of 5
MSI
Codell
IATA
Bookland EAN
Code 32

PDF417 (and Variants):

PDF417
microPDF417 and composite codes

Postal:

U.S. Postnet and Planet
U.K.
Japan
Australian
Dutch

2-D:

MaxiCodde
DataMatrix (ECC 200)
QR Code

Light Source:

Laser

Image Sensor Type:

Imager

Depth of Field:

0.84" - 2.42"@3mil - Code 39
0.42" - 3.13"@4mil - Code 39
0.29" - 3.38"@5mil - Code 39
4.38"@7.5mil - Code 39
0.59" - 4.96"@10mil - Code 39
0.42" - 8.21"@20mil - Code 39
0.21" - 5.13"@13mil - 100% UPC
0.63" - 3.10"@6.67mil - PDF417
0.46" - 3.54"@10mil - PDF417
1.33" - 4.46"@15mil - PDF417
1.04" - 2.13"@4mil - Data Matrix
0.79" - 2.50"@5mil - Data Matrix
0.50" - 3"@7.5mil - Data Matrix
0.54" - 3.50"@10mil - Data Matrix
1.13" - 2.17"@4mil - QR Code
0.88" - 2.54"@5mil - QR Code
0.67" - 3"@7.5mil - QR Code
0.46" - 3.42"@10mil - QR Code

Scan Pattern:

Omni-directional

Interfaces/Ports

Host Interface:

Serial
USB

Physical Characteristics

Color:

White

Height:

6.6"

Width:

2.8"

Depth:

4.7"

Weight (Approximate):

6.40 oz

Miscellaneous

Additional Information:

USB Cable separate

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

5 Year

Item Numbers

GTIN: 0151903663363

UPC: 151903663363

EAN: 0151903663363

UNSPSC: 43211701
