Symbol DS6708-DL20291ZZR Barcode Scanner

The Symbol DS6708-DL20291ZZR Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol DS6708 - SCANNER ONLY, 2D Imager, Drivers License capability. Cables and accessories sold separately. Color: White.
Scanner Capability
1D
Scanner Type
Imager

Need a different version? See all Symbol DS6708 Barcode Scanners

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare

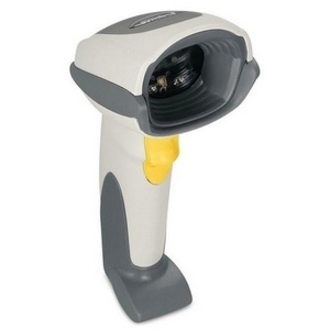

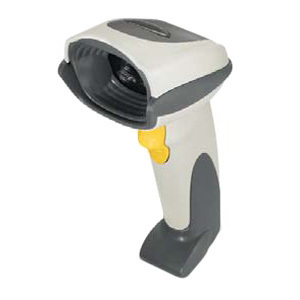

Symbol DS6708-DL20291ZZR Barcode Scanner
Symbol DS6708-DL20291ZZR Barcode Scanner
Symbol DS6708-DL20291ZZR Barcode Scanner
Symbol DS6708-DL20291ZZR Barcode Scanner
Symbol DS6708-DL20291ZZR Barcode Scanner
Symbol DS6708-DL20291ZZR Barcode Scanner Symbol DS6708-DL20291ZZR Barcode Scanner Symbol DS6708-DL20291ZZR Barcode Scanner Symbol DS6708-DL20291ZZR Barcode Scanner Symbol DS6708-DL20291ZZR Barcode Scanner
Full specifications (PDF)

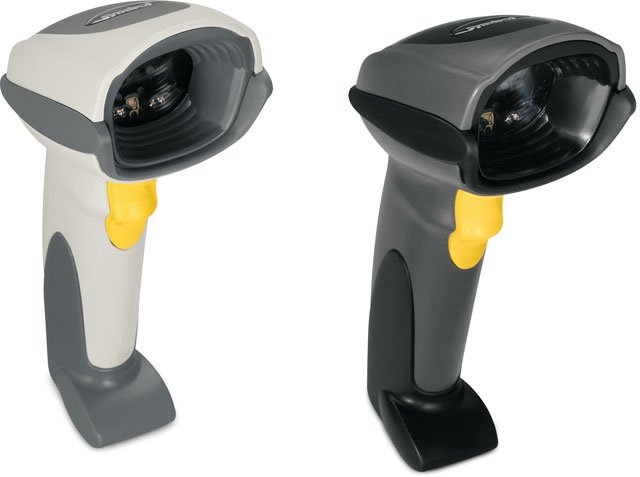

Symbol DS6708 Barcode Scanner Model Overview
The handheld DS6708 combines a 1D and 2D barcode scanner, maximizing employee productivity and streamlining business processes in the retail store, post office, pharmacy or manufacturing floor. The DS6708 reduces capital and operating expenses by eliminating the need to purchase separate devices to read different barcode symbologies. Remote scanner management capability further reduces the total cost of ownership, while multiple interface options makes for easy installation anywhere.
Symbol DS6708-DL20291ZZR Barcode Scanner Overview

The DS6708-DL combines all the features of Motorola's standard DS6708 imager, such as omni-directional 1D/2D bar code scanning, with embedded and server-based parsing agents that enable users to read the PDF-417 bar code on a US driver's license and use that information for a multitude of applications. Because the parsing is done in the scanner and the output is controlled by the user, the scanner can easily be used in all environments with very little start-up effort.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1-D:

  • UPC/EAN and with supplemental
  • Code 39
  • Code 39 Full ASCII
  • Tri-optic Code 39
  • RSS variants
  • Code 128
  • GS1DataBar (formerly UCC/EAN 128)
  • Code 128 Full ASCII
  • Code 93
  • Codabar (NW1)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • Codell
  • IATA
  • Bookland EAN
  • Code 32

PDF417 (and Variants):

  • PDF417
  • MicroPDF417
  • Composite codes

Postal:

  • U.S. Postnet
  • Planet
  • U.K.
  • Japan
  • Australian
  • Dutch

2-D:

  • MaxiCode
  • DataMatrix (ECC 200)
  • QR Code
Image Sensor Type:
Imager
Depth of Field:
  • 1.1" - 6.5"@5mil - Code 39
  • 0.5" - 9.7"@13mil - 100% UPC
  • 0.5" - 15.2"@20mil - Code 39
  • 0.9" - 7"@10mil - PDF417
  • 1.1" - 7.5"@10mil - Datamatrix
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
  • Serial
  • USB
  • IBM 46XX
Physical Characteristics
Form Factor:
Handheld
Color:
White
Height:
6.5"
Width:
2.8"
Depth:
4.7"
Weight (Approximate):
6.40 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
