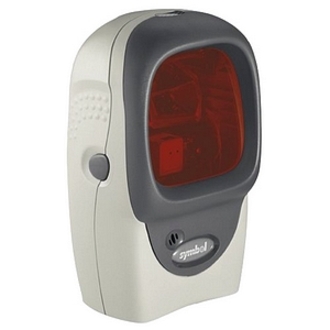

Symbol LS9208-SR10007NNWW Barcode Scanner

The Symbol LS9208-SR10007NNWW Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Symbol LS 9208 - Scanner with Quick Reference Guide and No Adjustable Stand. Color: Twilight Black.

Scanner Capability

Wired connectivity makes this scanner ideal for retail and desktop applications
Powerful laser scan source provides 1500 scan/s decode rate
Scan barcodes with a staggering speed of 1500 scan/s

Need a different version? See all Symbol LS 9208 Barcode Scanners

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Symbol LS9208-SR10007NNWW Barcode Scanner

Overview

Full specifications (PDF)

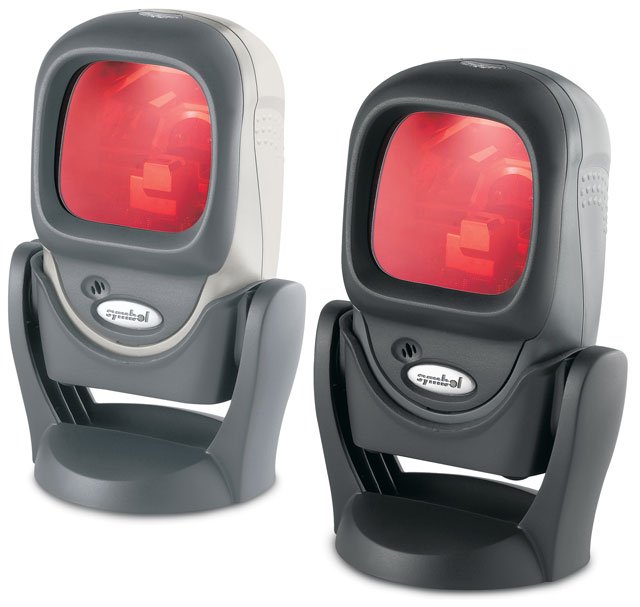

Symbol LS 9208 Barcode Scanner Model Overview

The Symbol LS 9208 presentation scanner delivers both a high-performance processor and an innovative 100-line rastering omnidirectional scan pattern for increased productivity at checkout, resulting in higher customer satisfaction. Created to be quick and versatile, the LS 9208 offers both omni-directional and single-line scanning to cover any application. The LS 9208 also supports Electronic Article Surveillance (EAS) for added security and convenience. Reads Reduced Space Symbology (RSS). All units feature a 30 month warranty.

Symbol LS9208-SR10007NNWW Barcode Scanner Overview

The LS9208 presentation scanner, from Symbol Technologies, delivers both a high-performance processor and an innovative 100-line rastering omnidirectional scan pattern for increased productivity at checkout, resulting in higher customer satisfaction.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Barcode Symbology Supported:

UPC/EAN/JAN
UPC/EAN with Supplementals
UCC/EAN 128
Code 128
ISBT 128
Code 39
Trioptic Code 39
Interleaved 2 of 5
Discrete 2 of 5
Code 93
Code 11
Codabar
MSI
RSS Variants

Light Source:

Laser

Scan Rate:

1500 scan/s

Maximum Scan Resolution:

5 mil

Depth of Field:

1" - 2.5"@5mil
0" - 6"@7.8mil
0" - 7.5"@10.4mil
0" - 9"@13mil - 100% UPC

Scan Pattern:

Single Line
Omni-directional

Scanning Distance:

Interfaces/Ports

Host Interface:

Multi-interface

Power Description

Input Voltage:

5 V DC

Physical Characteristics

Form Factor:

Desktop

Color:

Black

Height:

5.5"

Width:

3.5"

Depth:

Weight (Approximate):

10.20 oz

Miscellaneous

Package Contents:

Symbol LS 9208 Bar Code Reader
Quick Reference Guide

Additional Information:

Supported Interfaces:

USB

Serial

IBM 468X/469X

Keyboard Wedge

Wand Emulation

Synapse

Certifications & Standards:

Electrical Safety:

UL 1950
CSA C22.2 No. 950 EN60825

Laser Safety:

CDRH Class IIa Laser Product
IEC 60825 Class 1 Laser Product

EMC:

CISPR B
FCC B

Warranty

Limited Warranty:

30 Month

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Symbol LS9208-SR10007NNWW Barcode Scanner is also known as SYM-LS9208SR17NNWW or LS9208SR10007NNWW.
