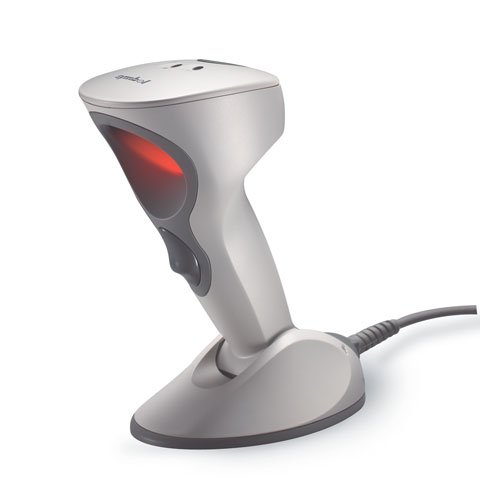

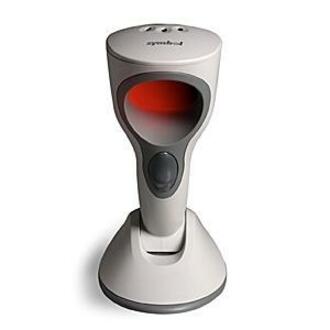

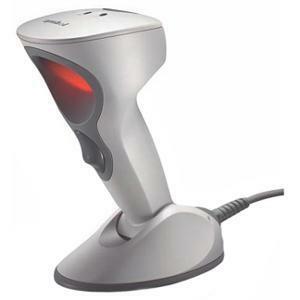

Symbol M2004-I400 Barcode Scanner

A newer version of this item is available.
It is replaced by the Zebra DS9908-SR00004ZZWW Barcode Scanner.

Symbol M2004 Cyclone - scanner. Includes product reference guide. Order cables & power supply separately. See accessories. Color: white.

Scanner Capability

Speed up customer's checkout experience
Perfect for applications that require direct association with a workstation or a notebook
Incredible and responsive 2D scanning even on curved or translucent surfaces
With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too

Need a different version? See all Symbol M2004 Cyclone Barcode Scanners

Chat Now for Qty Discount

Add to Quote

Discontinued See Replacement

Overview

Full specifications (PDF)

Symbol M2004 Cyclone Barcode Scanner Model Overview

A smart investment, Symbol's innovative scanner is future-ready now. The M2004 Cyclone scanner decodes existing, new and emerging barcode symbologies instantly. The Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical, the Cyclone's sleek design complements any store's decor. Large merchandise or small, single or multiple barcode types, this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive "Cyclone" Scanner Series from Symbol Technologies a standout for barcode scanning at point of sale. All units ship with one product reference guide.

Symbol M2004-I400 Barcode Scanner Overview

A smart investment, Symbol's innovative new scanner is future-ready now. The Cyclone M2004 scanner decodes existing, new and emerging bar code symbologies instantly. The Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical, the Cyclone's sleek design complements any store's decor. Large merchandise or small, single or multiple bar code types, this scanner can handle it all.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

UPC/EAN/JAN
NW7
Code 128
Code 39 Full ASCII
Interleaved 2 of 5
MSI/PLESSEY
Discrete 2 of 5
UCC/EAN 128
Codabar
PDF 417
UPC/EAN
RSS

Light Source:

Laser

Maximum Scan Resolution:

5.50 mil

Depth of Field:

0" - 2"@6mil - Code 39
0.3" - 11"@100% UPC
0.5" - 12"@20mil - Code 39

Scan Pattern:

Single Line
Omni-directional

Interfaces/Ports

Host Interface:

Serial

Physical Characteristics

Color:

White

Height:

7.8"

Width:

3.4"

Depth:

5.4"

Weight (Approximate):

12 oz

Miscellaneous

Additional Information:

USB Cable separate

Certifications & Standards:

Electrical Safety:

UL 1950
CSA C22.2 No. 950 EN60950/IEC950

EMI/RFI:

FCC Part 15 Class B
ICES-003 Class B
European Union EMC Directive
Australian SMA

Laser Safety:

CDRH Class lla
IEC Class I

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0683728198992

UPC: 683728198992

EAN: 0683728198992

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Symbol M2004-I400 Barcode Scanner is also known as SYM-M2004I4 or M2004I400.
