TRENDnet Parts Accessory Model Overview
Products and parts from TRENDnet.
- ETHERNET PORT INTERFACE: 8 x Gigabit PoE+ (802.3at) ports, 4 x Gigabit SFP slots, and 1 x console port
- FULL POE+ POWER BUDGET & CONTROL PER PORT: The managed PoE+ switch supplies up to 30 Watts of PoE / PoE+ power per port (ports 1-4 802.3at / 802.3af) with a 240 Watt PoE power budget and allows for a 24 Gbps switching capacity. PoE control features for the DIN-Rail switch include enabling / disabling PoE and class, power priority, PD alive check, scheduling, and power delay per port using CLI or web management.
- DIN-RAIL & WALL MOUNT KIT: This 12-Port gigabit PoE+ managed switch comes with an integrated DIN-Rail mount and mounting hardware.
- EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.
- TRAFFIC MANAGEMENT: The Layer 2+ Managed switch features include 802.1Q / Q-in-Q / GVRP / MAC & Protocol-Based VLAN, IGMP v1 / 2 / 3, IGMP Snooping, MLD, MVR, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP / MSTP spanning tree, static and dynamic link aggregation, and Xpress Ring + ERPS protection for flexible network integration.
- FAULT TOLERANCE: The DIN-Rail Switch features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.
- REDUNDANT POWER: The 12 Port Switch has dual redundant power inputs with overload current protection (power supply sold separately: model: (TI-S24048)
- TRENDnet LIFETIME PROTECTION: All metal TRENDnet switches are backed by our lifetime TRENDnet Manufacturer Warranty.

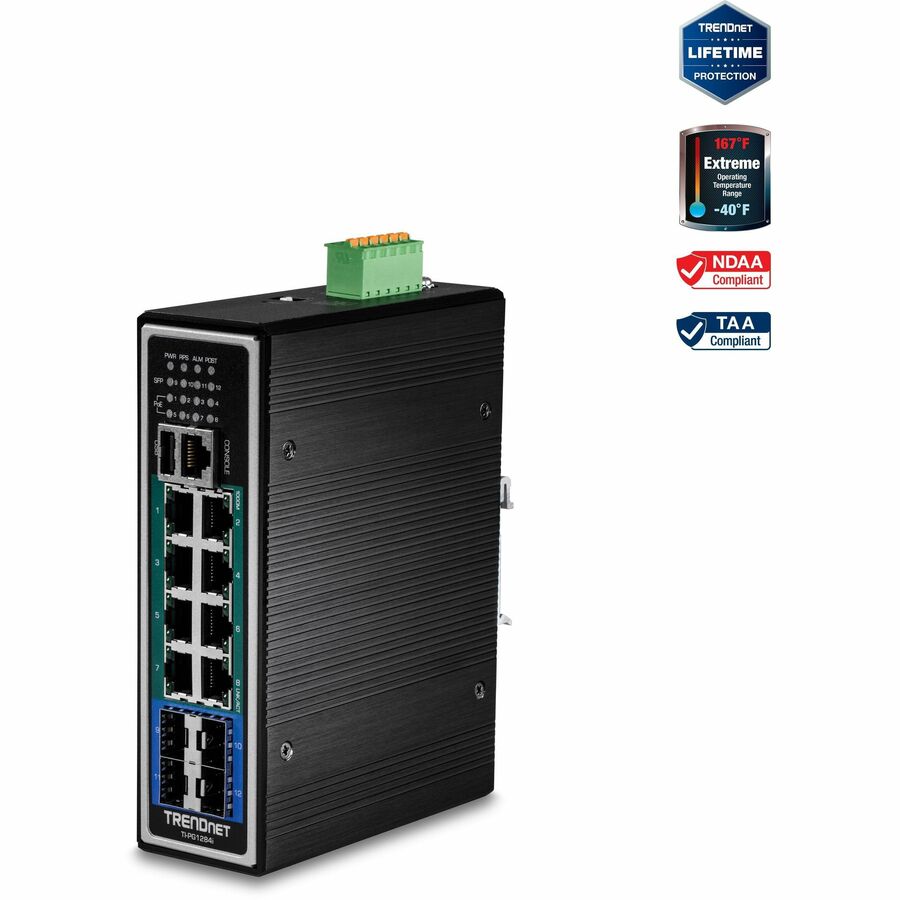

TRENDnet's 12-Port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch, model TI-PG1284i, has eight Gigabit PoE+ ports, four Gigabit SFP slots, and a 240 Watts PoE budget. The switch is equipped with an IP30 rated metal enclosure and designed to withstand a high degree of vibration, protection against ESD / EMI / surge, and operate within a wide temperature range (- 40 - 75 °C (- 40 - 167°F)) for harsh environments. L2+ management include features such as PoE port control, 802.1Q / Q-in-Q VLAN, multicast, spanning tree, link aggregation, QoS, IPv4 / IPv6 static routing, ACLs, and 802.1X which allow for network integration flexibility.
Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.
Integration Flexibility
Managed features include PoE control, IP static routing, access control lists, VLAN, IGMP snooping, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
Fault Tolerance
Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.
Package Contents:
- TI-PG1284i
- Quick Installation Guide
-CD-ROM (User's Guide)
- Console cable (RJ-45 to RS-232)
NDAA / TAA compliant (U.S. and Canada only) More from the Manufacturer
