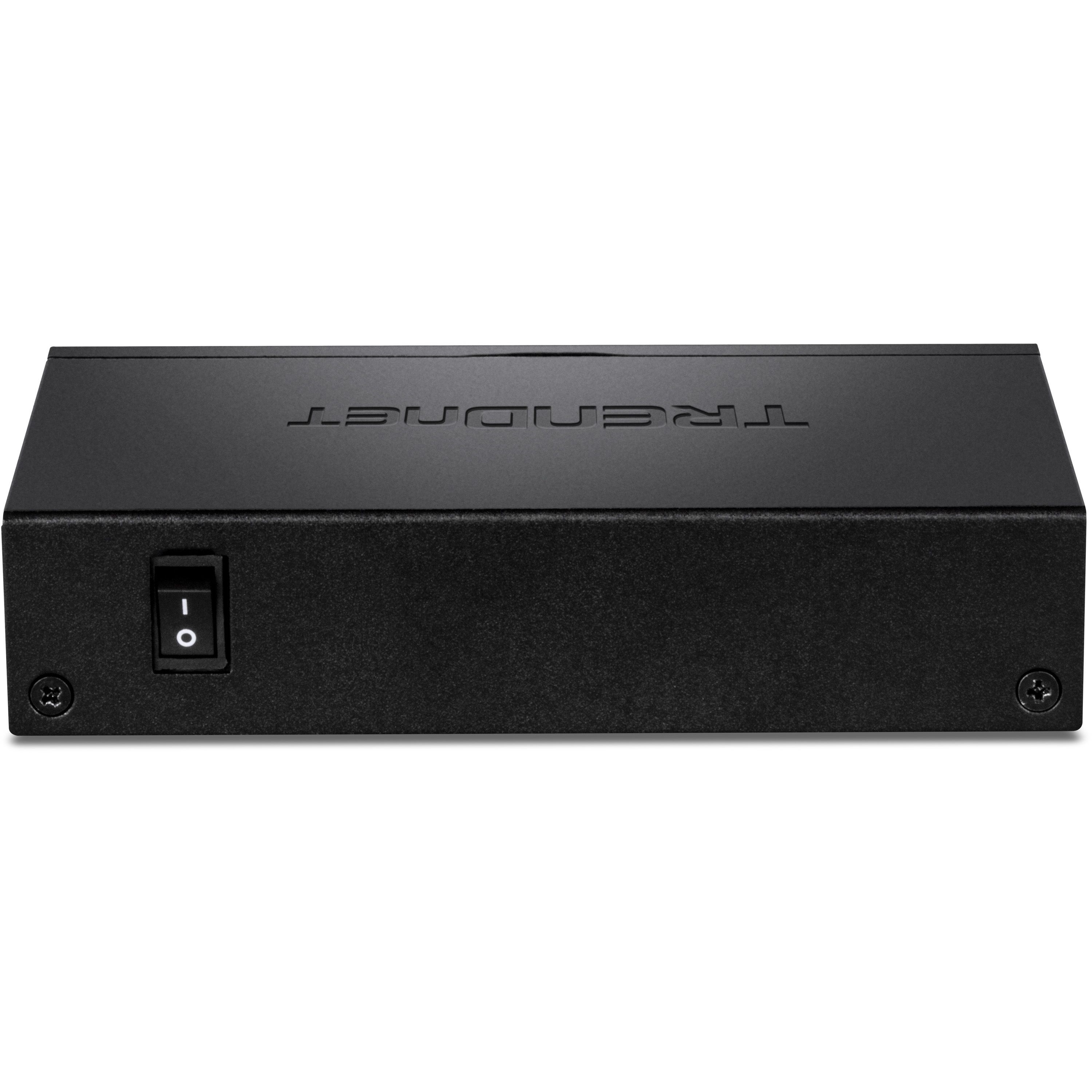

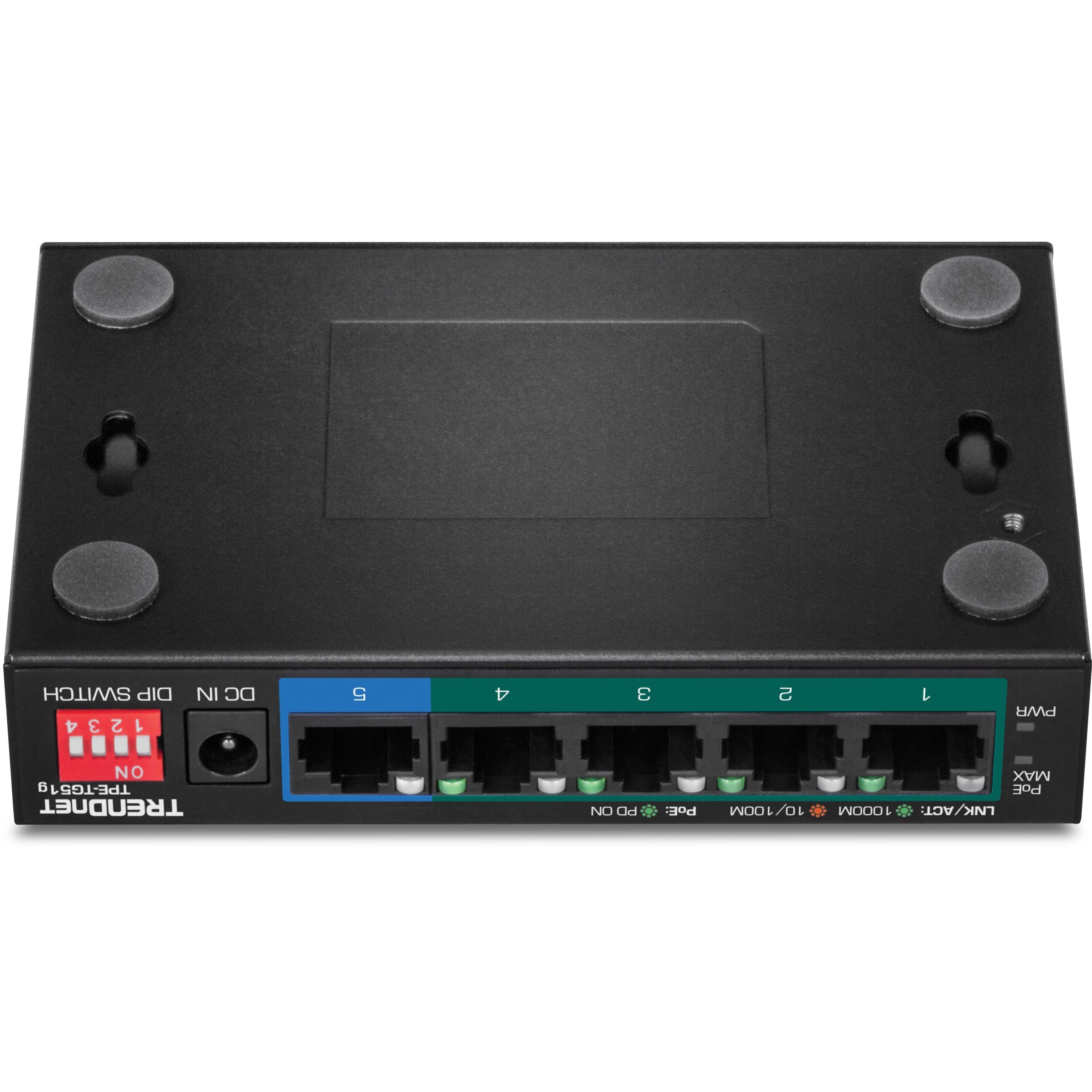

TRENDnet TPE-TG51G Wireless Switch

TRENDnet TPE-TG51G  -  Wireless Switches, TRENDnet TPE-TG51G, 5-Port Gigabit PoE+ Switch
  • PoE : Supports both PoE (802.3af) and PoE+ (802.3at) devices with a 60W PoE power budget
  • Ports : Four gigabit PoE+ ports and one gigabit port
  • Long Range PoE+ : Extend PoE+ signal up to 200m (656ft.) on the long-distance PoE switch by enabling it through the DIP switch
  • Port Isolation : Ideal for surveillance networking applications, the DIP switch also enables port isolation on ports 1 - 4
  • Switching Capacity : 10Gbps switching capacity
  • Jumbo Frame : Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
  • Housing : Wall mountable rugged metal housing
  • LED Indicators : LED indicators on the long-range PoE switch convey port status
Read More

Need a different version? See all TRENDnet Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$73.48
In Stock
TRENDnet TPE-TG51G Wireless Switch
TRENDnet TPE-TG51G Wireless Switch
TRENDnet TPE-TG51G Wireless Switch
TRENDnet TPE-TG51G Wireless Switch TRENDnet TPE-TG51G Wireless Switch TRENDnet TPE-TG51G Wireless Switch
TRENDnet Parts Accessory Model Overview
Products and parts from TRENDnet.
TRENDnet TPE-TG51G Wireless Switch Overview
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 60W PoE power budget
  • Extend PoE+ signal up to 200m (656 ft.) at 10Mbps
  • DIP switch supports VLAN port isolation and QoS
  • 10Gbps switching capacity
  • Compact metal switch
  • Wall mountable design
  • Lifetime Warranty
TRENDnet's 5-Port Gigabit PoE+ Switch, model TPE-TG51g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices, such as access points and IP cameras. This long-range PoE switch supports both PoE and PoE+ devices with a 60W PoE power budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations. Easily install this long-range PoE switch for reliable high-speed PoE networking.

PoE+ Power
A 60W PoE power budget supplies up to four Power over Ethernet devices.

Gigabit Ethernet
Five gigabit ports provide a 10Gbps switching capacity to support edge network installations

Long Range PoE+ Switch
Enable the DIP switch to extend PoE+ signal up to 200m (656 ft.) at 10Mbps.

More from the Manufacturer

Interfaces/Ports
Total Number of Network Ports:
5
Network (RJ-45):
Yes
Port/Expansion Slot Details:
  • 4 x Gigabit Ethernet PoE+
  • 1 x Gigabit Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-T
Network & Communication
Layer Supported:
2
Networking Standards:
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3p
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
60 W
Input Voltage:
  • 120 V AC
  • 230 V AC
Frequency:
  • 50 Hz
  • 60 Hz
Power Source:
Power Adapter
Power Consumption:
64.30 W
Physical Characteristics
Form Factor:
Wall Mountable
Height:
1"
Width:
4.8"
Depth:
3"
Weight (Approximate):
8.68 oz
Miscellaneous
Package Contents:
  • 5-Port Gigabit PoE+ Switch
  • Quick Installation Guide
  • Power Adapter (55V DC, 1.3A)
Country of Origin:
Taiwan
Item Numbers
GTIN: 0710931162080
UPC: 710931162080
EAN: 0710931162080
UNSPSC: 43222612
