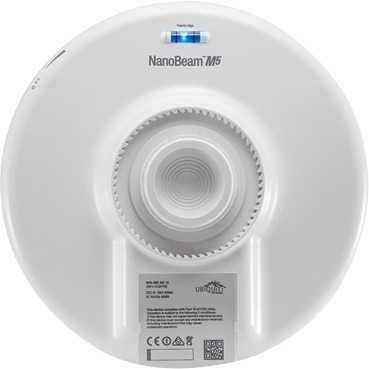

Ubiquiti Networks NBE-M5-16 Point to Multipoint Wireless

The Ubiquiti Networks NBE-M5-16 Point to Multipoint Wireless has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Ubiquiti Networks NanoBeam M - Due to Ubiquiti supply chain constraints, products not listed as in-stock will have extended lead times. Ubiquiti NBE-M5-16 IEEE 802.11a 150 Mbit/s Wireless Bridge - 5 GHz - 6.2 Mile Maximum Outdoor Range - 1 x Network (RJ-45) - Ethernet, Fast Ethernet - Wall Mountable, Pole-mountable

No need to run those expensive long cables, just use this wireless bridge to connect not just one but two of your existing wired networks to enjoy Wi-Fi
Build a reliable home or business network with this Wireless Bridge, that features IEEE 802.11a technology and speeds up to 150 Mbit/s
Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network

Need a different version? See all Ubiquiti Networks NanoBeam M Point to Multipoint Wirelesses

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Ubiquiti Networks NBE-M5-16 Point to Multipoint Wireless

Overview

Full specifications (PDF)

Ubiquiti Networks NanoBeam M Point to Multipoint Wireless Model Overview

Starting with the first-generation NanoBridge, Ubiquiti Networks pioneered the all-in-one design for an airMAXÂ® product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the NanoBeam. Available for the 2.4 and 5 GHz frequency bands, the NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Ubiquiti Networks NBE-M5-16 Point to Multipoint Wireless Overview

Starting with the first-generation NanoBridge®, Ubiquiti Networks® pioneered the all-in-one design for an airMAX® product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the NanoBeam®.

Improved Noise Immunity

The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11a

Frequency Band:

5 GHz

Outdoor Antenna Range:

6.2 Mile

Wireless Transmission Speed:

150 Mbit/s

Interfaces/Ports

Ethernet Technology:

Ethernet
Fast Ethernet

Number of Network (RJ-45) Ports:

PoE (RJ-45) Port:

PoE PD Port:

Yes

VGA:

HDMI:

USB:

Powerline:

Management Port:

Physical Characteristics

Form Factor:

Wall Mountable
Pole-mountable

Height:

5.5"

Width:

2.1"

Diameter:

5.5"

Weight (Approximate):

11.36 oz

Miscellaneous

Package Contents:

High-Performance airMAX Bridge
Pole-Mount Kit

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Item Numbers

GTIN: 0602003746550, 0657379380891, 0688474343665, 0701017581413, 0810354022098, 0810354022449, 0810354024955, 0818216233767, 0818231538533, 0818247000420, 0995478452522

UPC: 602003746550, 657379380891, 688474343665, 701017581413, 810354022098, 810354022449, 810354024955, 818216233767, 818231538533, 818247000420, 995478452522

EAN: 0602003746550, 0657379380891, 0688474343665, 0701017581413, 0810354022098, 0810354022449, 0810354024955, 0818216233767, 0818231538533, 0818247000420, 0995478452522

UNSPSC: 43222631
