Signal to Noise Ratio (SNR):
101 dB
UltimaCase Parts Accessory Model Overview
Cases and Solutions for Mobile Computing
UltimaCase 00-3107 Spare Parts Overview

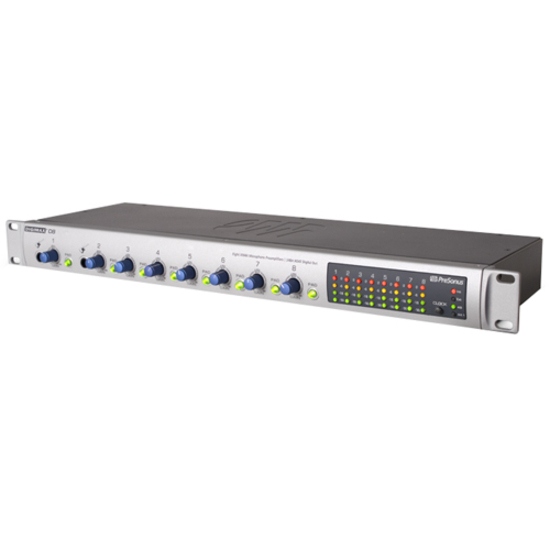

The DigiMax D8 is an 8 channel preamplifier featuring 8 award-winning class A XMAX mic preamps with 24-bit ADAT digital output. All eight preamps include variable trim control, 48V phantom power, ultra-fast acting LED metering and 20 dB pad. In addition, 2 instrument inputs are located on the front panel for direct Hi-Z instrument input. Balanced TRS direct analog outputs are located on the rear panel for routing and flexibility. The DigiMax D8 also includes word clock sync input for ultra-low jitter and robust synchronization.
Technical Information
Audio
Audio Channels:
8
Interfaces/Ports
Number of Analog Audio Inputs:
11
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Physical Characteristics
Height:
1.8"
Width:
19"
Depth:
7"
Weight (Approximate):
6 lb
Miscellaneous
Additional Information:
- 8 XMAX class A microphone preamps with trim control
- External sync via BNC word clock input
- 24-bit resolution ADAT digital output
- Direct outputs on every channel
- 44.1 and 48K sampling rates
- -20dB Pad on every channel
- LED input metering
Certifications & Standards:
CE
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0003107005602, 0613815862895, 0673454000089
UPC:
003107005602, 613815862895, 673454000089
EAN:
0003107005602, 0613815862895, 0673454000089
UNSPSC:
52161547
