Unitech MS337-6UCB00-1G Barcode Scanner

A newer version of this item is available.
It is replaced by the Unitech MS842-2UCB00-SG Barcode Scanner.

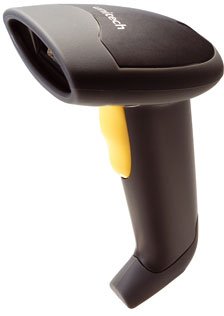

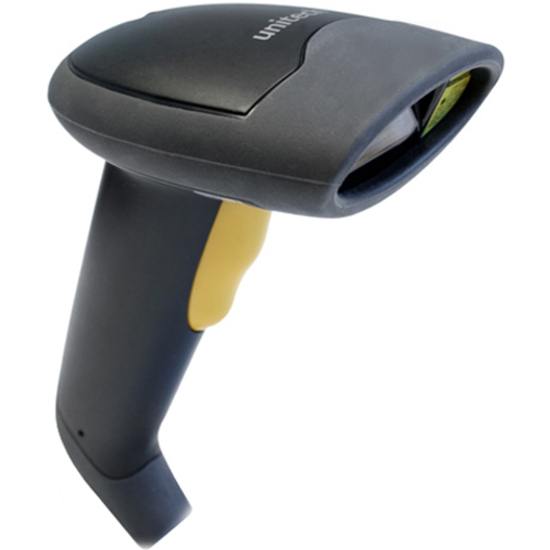

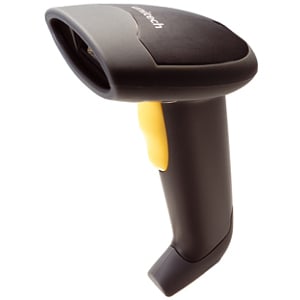

Unitech MS337 - Unitech MS337 Handheld Bar Code Reader - Wired - CMOS

Form Factor

Handheld

Scanner Capability

Scanner Type

Imager

Perfect for applications that require direct association with a workstation or a notebook
Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
LED aimer is a perfect choice for patient-facing applications

Need a different version? See all Unitech MS337 Barcode Scanners

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

Unitech MS337 Barcode Scanner Model Overview

Unitech's innovative MS337 2D rugged image scanner provides for greater business efficiency, reading accuracy and productivity with its fast 2D scanning engine and highly aggressive performance. Its LED flash has virtually no repeated scanning making it highly efficient and competitive in its class by reducing costs and maximizing uptime and limiting downtime. The MS337 has an industrial-standard miniature form factor and rugged design that provide for a compatible and durable technology.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

1D Symbologies:

UPC/EAN
Discrete 2 of 5
Code 128
Code 39
Code 93
Codabar
UCC.EAN128
I2 of 5
ISBT 128
MSI
GS1 DataBar
2D Symbologies:
DataMatrix
Maxicode
PDF417
QR Code
RSS (RSS14, RSS Expanded, and RSS Limited)
Postal Codes:
US Postnet
US Planet
UK Postal
Australian Postal
Japan Postal

Light Source:

LED

Image Sensor Type:

CMOS

Scan Pattern:

Omni-directional

Interfaces/Ports

Host Interface:

USB

Physical Characteristics

Height:

7.1"

Width:

2.8"

Depth:

3.9"

Weight (Approximate):

7 oz

Miscellaneous

Package Contents:

MS337 Handheld Bar Code Reader:
Cable
Manual

Additional Information:

Focal Point: 3.94" from the scanner face
View Angles: 50º (horizontal) 37.5º (vertical)

USB Cable separate

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Get help from a Barcoding Expert!

The Unitech MS337-6UCB00-1G Barcode Scanner is also known as UNI-MS337-6UCB00-1G or MS3376UCB001G.
