Full specifications (PDF)
Display Screen Type:
LCD
Backlight:
Yes

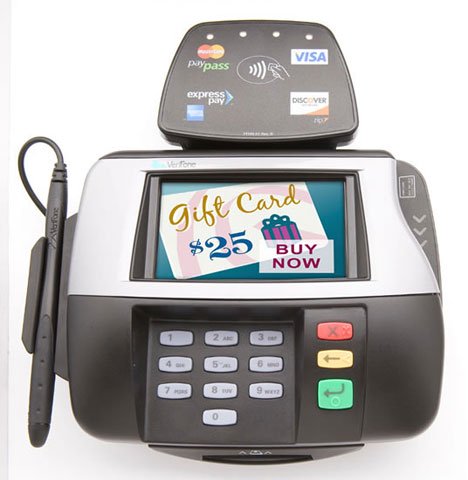

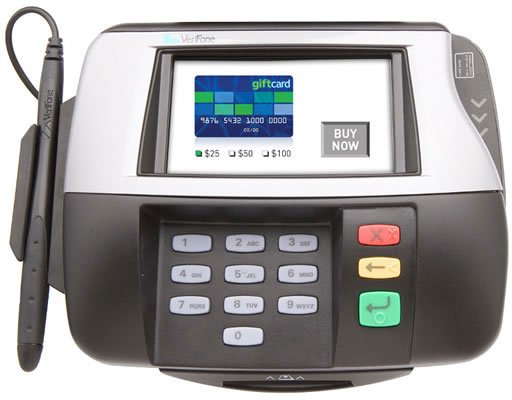

VeriFone MX860 Payment Terminal Model Overview
The VeriFone MX860 offers a wide screen, a tactile keypad and a large signature capture area speeds customers through lanes. A fast processor and ample memory make the MX860 especially well suited for high-volume locations. But, the MX860 delivers more than fast and secure payments. It features a large brilliant full-color display for implementing attention-getting promotions and a variety of other revenue generation and customer interaction solutions. Combined with the new MX800 Series printer and scanner, multiple connectivity options including Power over Ethernet, WiFi, USB and various serial interfaces - plus a secure browser platform - the MX860 puts a whole new world of payments and promotions capabilities at your fingertips.
VeriFone M090-407-01-R Payment Terminal Overview
The MX 860 is as versatile as it is performance-oriented. An industry leading color display ideal for promotional and interactive customer applications is combined with a tactile keypad and large signature capture area to speed customers through lanes.
Display & Graphics
Interfaces/Ports
Host Interface:
USB
Miscellaneous
Additional Information:
- Resolution: 480 x 272
- Cable: supports VeriFone multi-port cables with cable sensing
- USB: Device and Host capability
- Ethernet: 10/100BaseT
- Serial Interfaces: RS-232, RS-485, IBM Tailgate Power over Ethernet option WiFi, field-upgradeable module
System Requirements:
Processor:
- 266 MHz (32-bit)
Operating System:
- Embedded Linux with VeriFone security enhancements
- MX platform
Memory:
- 64 MB SDRAM + 64 MB Flash Field-upgradeable via USB Flash drives
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS
- WEEE
Item Numbers
UNSPSC:
43211712
Questions? Get help from
a POS Expert!
a POS Expert!
The VeriFone M090-407-01-R Payment Terminal is also known as
M09040701R
