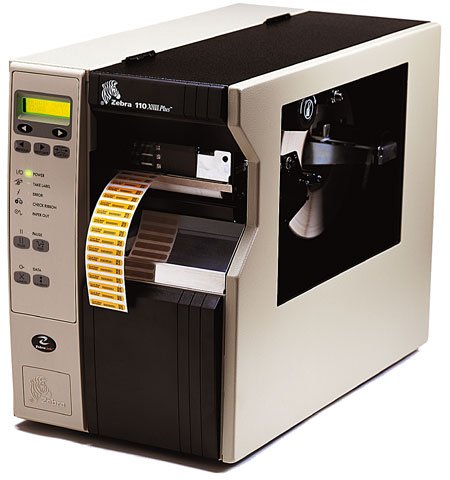

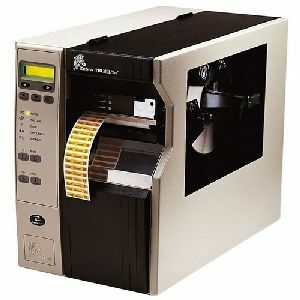

Zebra 113-701-00000 Barcode Label Printer

A newer version of this item is available.
It is replaced by the Zebra ZT411 Barcode Label Printer.

Zebra 110XiIIIPlus - Thermal transfer & direct thermal, 300 dpi, 8 ips, 4.09" print width, parallel, serial & USB interfaces, 16MB SDRAM, & 4MB Flash. Includes ZebraLink & US power cord. Order cables separately, see accessories.

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Parallel, Serial (RS-232), USB

Print Resolution

300 dpi, 305 dpi

Max Print Width

4.5 inch

Ribbon Core Size

1 inch

Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
300 maximum print resolution (dpi) offers great dependability with added efficiency
Monochrome print color capability for better reliance and maximum productivity
Delivers high-speed, hassle-free labeling solution for your business needs
Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
4.50" maximum label width for your convenience and feasible usability
39" maximum label length for dependable, desired results
Supports continuous form media type for maximum feasibility and better accommodation of your requirements
Comes with 16 MB standard memory to make you productive with the direct thermal/thermal transfer printer?s smooth performance
LCD display is long-lasting with reduced screen burning to ensure maximum efficiency

Need a different version? See all Zebra 110XiIIIPlus Barcode Label Printers

Chat Now for Qty Discount

Add to Quote

Discontinued See Replacement

Zebra 113-701-00000 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra 110XiIIIPlus Barcode Label Printer Model Overview

With the new 110XiIIIPlus, you can step up to the renowned, non-stop reliability of Zebra's Xi printer family without a big leap in price. This new model with full four-inch print width to fit your printing application, be it 4"x 6" compliance shipping labels, or tiny, sharply detailed labels for small components or products.

Zebra 113-701-00000 Barcode Label Printer Overview

Providing superior performance, longevity, and solid value, the 110XiIIIPlus (with Clear Media Side Door & Media Hanger) offers rugged durability, dependability, and unparalleled reliability in high-volume, mission-critical and specialty labeling solutions. Insuring investment protection are more standard features and total options than competitive printers, superquick processors for fast throughput and processing; and plenty of memory for more label formats, graphics, fonts, and data. It s easy to see why XiIIIPlus printers take high performance to an all-new level!

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

8 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Codabar
Code 11
Code 39
Code 93
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Planet Code
Plessey
POSTNET
Standard 2 of 5
EAN With 2 or 5 Digit Extension
UPC-A
UPC-E
ISBT-128
Code 128-A
Code 128-B
Code 128-C
UPC 2 or 5 Digit Extension
Codablock
Code 49
Data Matrix
Maxi Code
PDF-417
QR Code
RSS
TLC 39
Micro PDF

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

4 MB

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Continuous Form
Die-cut Label
Black Mark

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Media Thickness:

120 mil

Maximum Roll Diameter:

Maximum Label Width:

4.50"

Maximum Label Length:

39"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

ZPL II

Software

Software Included:

Ztools Utilities
BAR-ONE Lite/Platinum demo
JefForm Central ERP Solution
Windows3.1/95/98/2000/NT Drivers
ZebraNet WebView and Alert Utilities
Adobe Acrobat
Direct Zebra Web Access

Power Description

Input Voltage:

110 V AC
220 V AC

Frequency:

62 Hz

Physical Characteristics

Height:

15.5"

Width:

10.4"

Depth:

19.5"

Miscellaneous

Package Contents:

110XiIIIPlus Label Printer
Xi IIIPlus User's Guide
Utility & Driver CD
ZebraNet Connectivity CD
North American Edition Power Cord

Cables Included:

Additional Information:

Clear Media Side Door & Media Hanger
IBM Code Page 850 International Characters
Transmissive and reflective media sensors
Support user-defined fonts and graphics including custom logos
ZPL II drawing commands including boxes, circles, and diagonal lines
Advanced media/ribbon counter
Enhanced Alert notification monitors printhead condition
300 unique darkness settings
PCMCIA socket
Smooth scalable font (CG Triumvirate Bold Condensed) is expandable dot-by-dot, height and width independent.

Platform Supported:

Certifications & Standards:
