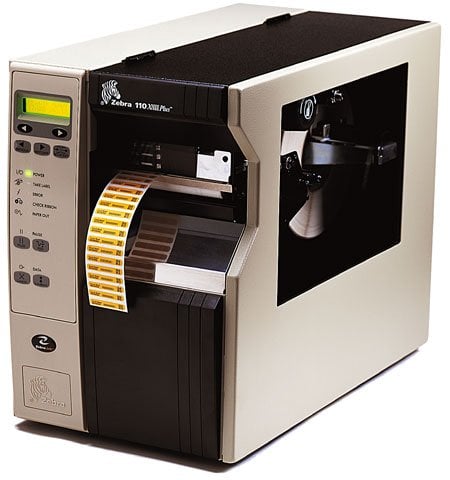

Zebra 113-741-00200 Barcode Label Printer

A newer version of this item is available.
It is replaced by the Zebra ZT411 Barcode Label Printer.

Zebra 110XiIIIPlus - Thermal transfer & direct thermal, 300 dpi, 8 ips, 4.09" print width, ZebraNet PrintServer II (10BaseT), serial & USB 2.0 interfaces, 16MB SDRAM, & 4MB Flash. Includes Rewinder, ZebraLink, & US power cord. Order cables separately, see accessories.

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet, Serial (RS-232), USB

Print Resolution

300 dpi, 305 dpi

Max Print Width

4.5 inch

Ribbon Core Size

1 inch

Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
300 maximum print resolution (dpi) for better reliance and added usability
Delivers high-speed, hassle-free labeling solution for your business needs
Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
4.50" maximum label width for your convenience and feasible usability
39" maximum label length for your convenience and feasible usability
Supports continuous form media type for better reliance and maximum usability
Comes with 16 MB standard memory to ensure maximum efficiency with great quality printing results

Need a different version? See all Zebra 110XiIIIPlus Barcode Label Printers

Chat Now for Qty Discount

Add to Quote

Discontinued See Replacement

Zebra 113-741-00200 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra 110XiIIIPlus Barcode Label Printer Model Overview

With the new 110XiIIIPlus, you can step up to the renowned, non-stop reliability of Zebra's Xi printer family without a big leap in price. This new model with full four-inch print width to fit your printing application, be it 4"x 6" compliance shipping labels, or tiny, sharply detailed labels for small components or products.

Zebra 113-741-00200 Barcode Label Printer Overview

Providing superior performance, longevity, and solid value, the 110XiIIIPlus (with Clear Media Side Door & Media Hanger) offers rugged durability, dependability, and unparalleled reliability in high-volume, mission-critical and specialty labeling solutions. Insuring investment protection are more standard features and total options than competitive printers, superquick processors for fast throughput and processing; and plenty of memory for more label formats, graphics, fonts, and data. It s easy to see why XiIIIPlus printers take high performance to an all-new level!

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Maximum Mono Print Speed:

8 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Codabar
Code 11
Code 39
Code 93
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Planet Code
Plessey
POSTNET
Standard 2 of 5
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
UPC-A
UPC-E
ISBT-128
Code 128-A
Code 128-B
Code 128-C
UCC Case Codes
Codablock
Code 49
Data Matrix
Maxi Code
PDF-417
QR Code
RSS
TLC 39
Micro PDF
Aztec Code

Rewinder:

Yes

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

4 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Media Types & Handling

Media Type:

Continuous Form
Die-cut Label
Black Mark

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Maximum Roll Diameter:

Maximum Label Width:

4.50"

Maximum Label Length:

39"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

ZPL II

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

15.5"

Width:

10.4"

Depth:

19.5"

Miscellaneous

Package Contents:

110XiIIIPlus Label Printer
Xi IIIPlus User's Guide
Utility & Driver CD
ZebraNet Connectivity CD
North American Edition Power Cord

Cables Included:

Additional Information:

RFID Ready
Unicode -Compliant
300 unique darkness settings
Advanced media/ribbon counter
North American Edition, 120 VAC Cord
Clear Media Side Door & Media Hanger
Transmissive and reflective media sensors
Enhanced Alert notification -monitors printhead condition
Multi-level Element Energy Equalizer (E3) for superior print quality

Platform Supported:

Certifications & Standards:

FCC Class B
EN55024: 1998
R.O.C. CNS 13438
Australia AS/NZS 3548
EN55022: 1998 Class B
Argentina 92/98 Phase 3
Canadian ICES-003, Class B
EN61000-3-2,3 W/amendment A12
IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme)
Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108
